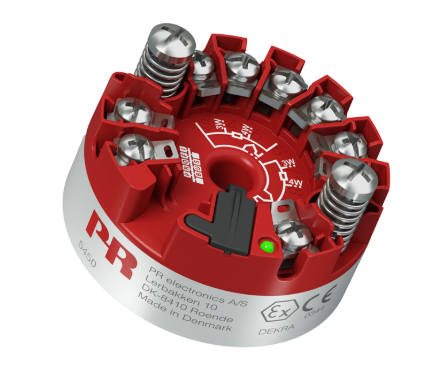

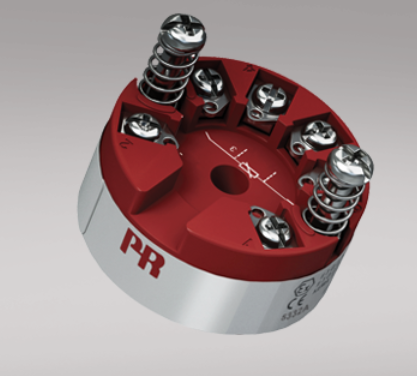

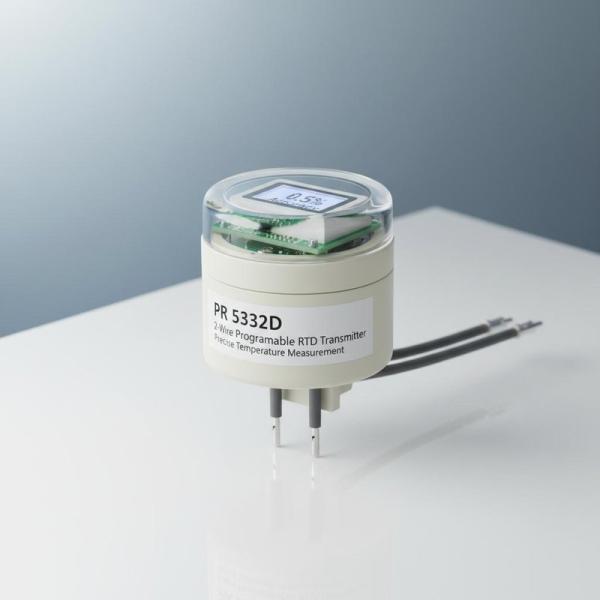

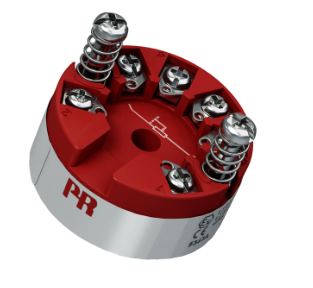

2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
2 Wire Programmable RTD Transmitter 4-20ma PR 5332D For Precise Temperature Measurement
Specifications
Brand Name :
PR
Model Number :
PR 5332D
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
116usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Description
2-Wire Programmable RTD Transmitter PR 5332D
Input Type: RTD or Ohm
Accuracy: Better than 0.05% of selected range
Features: Programmable sensor error value
Mounting: For DIN form B sensor head
Environmental Conditions
Operating temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree (enclosure/terminal) IP68 / IP00
Mechanical Specifications
Dimensions Ø 44 x 20.2 mm
Weight approx. 50 g
Wire size 1 x 1.5 mm² stranded wire
Screw terminal torque 0.4 Nm
Technical Specifications
Power Supply
Supply voltage 7.2...30 VDC
Internal power dissipation 25 mW…0.7 W
Performance
Response time (programmable) 1...60 s
Voltage drop 7.2 VDC
Warm-up time 5 min.
Power on to stable output 4.5 s
Accuracy Better than 0.05% of selected range
Signal dynamics, input 20 bit
Signal dynamics, output 16 bit
Input Specifications
RTD type Pt100, Ni100, linear R
Cable resistance per wire 5 Ω (max.)
Sensor current Nom. 0.2 mA
Linear resistance range 0 Ω...5000 Ω
Output Specifications
Signal range 4…20 mA
Min. signal range 16 mA
Updating time 440 ms
Sensor error indication Programmable 3.5…23 mA
Certifications & Approvals
Intrinsic Safety Certifications
ATEX II 1 G Ex ia IIC T6...T4 Ga, II 2 D Ex ia IIIC Db, I M1 Ex ia I Ma
IECEx Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma
FM, US Cl. I, Div. 1, Gp. A, B, C, D T4/T6; Cl. I Zone 0, AEx ia IIC T4/T6; Cl. 1, Div. 2, Gp. A, B, C, D, T4/T6
CSA Cl. I, Div. 1, Gp. A, B, C, D Ex ia IIC, Ga
INMETRO Ex ia IIC T6...T4 Ga, Ex ia IIIC Db, Ex ia I Ma
Approval Authorities
ATEX DEKRA 20ATEX0095X
IECEx DEK 20.0059X
FM FM17US0013X
CSA 1125003
INMETRO DEKRA 23.0009X
EAC Ex EAEU KZ 7500361.01.01.08756
Compliance Standards
EMC 2014/30/EU & UK SI 2016/1091
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
