Specifications
Brand Name :
PR
Model Number :
PR 5334A
Place of Origin :
Denmark
MOQ :
1
Price :
95USD
Payment Terms :
T/T
Supply Ability :
99PCS 4-6 WEEKS
Delivery Time :
5-7 work days
Operatingtemperature :
-40°C to 85°C
Material :
Stainless Steel, Brass
Ingressprotection :
IP65, IP67
Calibration :
Factory calibrated, Field calibratable
Application :
Industrial, HVAC, Automotive, Oil & Gas
Pressuretype :
Gauge, Absolute, Differential
Productname :
Pressure Measurement Instruments
Measurementrange :
0 to 1000 psi
Powersupply :
24 V DC
Displaytype :
LCD, LED
Outputsignal :
4-20 mA, 0-10 V, Digital
Responsetime :
≤ 1 ms
Connectiontype :
Threaded, Flanged
Accuracy :
±0.25% of full scale
Description

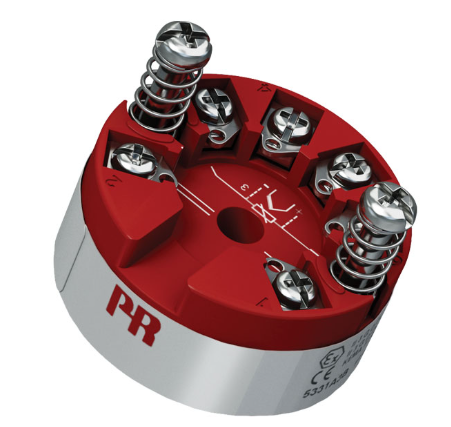

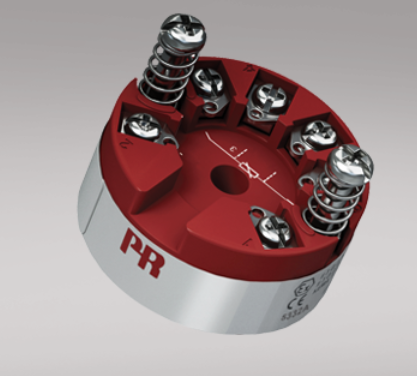

2-Wire Programmable Transmitter PR 5334A
  • TC input with high measurement accuracy
  • Galvanic isolation for enhanced safety
  • Programmable sensor error value
  • Designed for DIN form B sensor head mounting
    • Environmental Conditions
    Operating temperature -40°C to +85°C
    Calibration temperature 20...28°C
    Relative humidity < 95% RH (non-condensing)
    Protection degree (enclosure/terminal) IP68 / IP00
    Mechanical Specifications
    Dimensions Ø 44 x 20.2 mm
    Weight approx. 50 g
    Wire size 1 x 1.5 mm² stranded wire
    Screw terminal torque 0.4 Nm
    Vibration IEC 60068-2-6
    2...25 Hz: ±1.6 mm
    25...100 Hz: ±4 g
    Technical Specifications
    Power Supply
    Supply voltage: 7.2...35 VDC
    Internal power dissipation: 25 mW…0.8 W
    Isolation & Response
    Isolation voltage, test/working: 1.5 kVAC / 50 VAC
    Response time (programmable): 1...60 s
    Voltage drop: 7.2 VDC
    Warm-up time: 5 min.
    Power on to stable output: 4.5 s
    Performance
    Programming: PR 5909 Loop Link communications interface
    Signal/noise ratio: Min. 60 dB
    EEprom error check: < 3.5 s
    Accuracy: Better than 0.05% of selected range
    Signal dynamics, input: 18 bit
    Signal dynamics, output: 16 bit
    Effect of supply voltage change: < 0.005% of span / VDC
    EMC immunity influence: < ±0.5% of span
    Extended EMC immunity: NAMUR NE21, A criterion, burst: < ±1% of span
    Input Specifications
    TC Input
    Thermocouple type: B, E, J, K, L, N, R, S, T, U, W3, W5, LR
    Cold junction compensation (CJC): < ±1.0°C
    Sensor error detection: Yes
    Sensor error current: When detecting / else: Nom. 33 μA / 0 μA
    Voltage Input
    Measurement range: -12...150 mV
    Min. measurement range (span): 5 mV
    Input resistance: 10 MΩ
    Output Specifications
    Current Output
    Signal range: 4…20 mA
    Min. signal range: 16 mA
    Load (@ current output): ≤ (Vsupply - 7.2) / 0.023 [Ω]
    Load stability: ≤ 0.01% of span / 100 Ω
    Sensor error indication: Programmable 3.5…23 mA
    NAMUR NE43 Upscale/Downscale: 23 mA / 3.5 mA
    Common Output
    Updating time: 440 ms
    of span: = of the presently selected range
    Intrinsic Safety & Ex Marking
    ATEX II 3 G Ex nA [ic] IIC T6...T4 Gc, II 3 G Ex ec [ic] IIC T6...T4 Gc, II 3 G Ex ic IIC T6...T4 Gc, II 3 D Ex ic IIIC Dc
    IECEx Ex nA [ic] IIC T6…T4 Gc, Ex ec [ic] IIC T6…T4 Gc, Ex ic IIC T6…T4 Gc, Ex ic IIIC Dc
    INMETRO Ex ec [ic] IIC T6...T4 Gc, Ex ic IIC T6...T4 Gc, Ex ic IIIC Dc
    Compliance & Standards
    EMC 2014/30/EU
    ATEX 2014/34/EU
    RoHS 2011/65/EU
    EAC TR-CU 020/2011
    EAC Ex TR-CU 012/2011
    Certifications & Approvals
    ATEX DEKRA 20ATEX0096X
    IECEx DEK 20.0059X
    INMETRO DEKRA 23.0009X
    EAC Ex EAEU KZ 7500361.01.01.08756
    DNV Marine TAA0000101
