2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
2 Wire HART 7 Temperature Transmitter PR 5437A With RTD TC Potentiometer Input IP65 / IP67
Specifications
Brand Name :
PR
Model Number :
PR 5437A
Place of Origin :
Denmark
MOQ :
1
Price :
100usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Display :
Optional LCD
Net Weight :
7 oz
Actuator Type :
Side Rotary - No Lever
Corrent :
4-20 mA
Overvoltage Protection :
Output protected at 110% to 120%
Zero & Span Adjustment :
Field adjustable
Relative Humidity :
5 to 95%, non-condensing
Measurement Range :
-200°C to 850°C
Packing :
New and origin with factory seal
Input Protection :
Internally fused, non-replaceable
Ingress Protection :
IP65/IP67
Maximum Allowable :
500 psi (35 bar)
Storage Temperature :
-40 to 85°C (-40 to 185°F)
Origin :
China
Hs Code :
85363000
Description

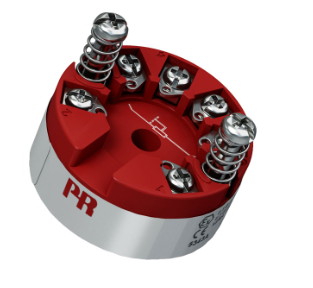

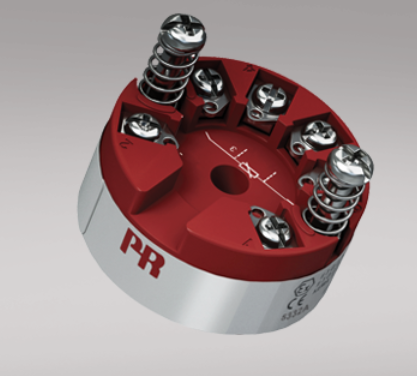

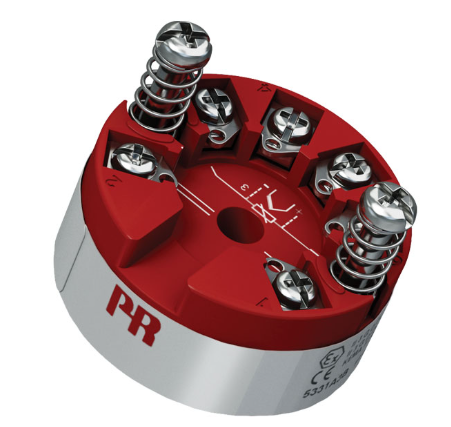

PR 5437A 2-Wire HART 7 Temperature Transmitter
Key Features
  • RTD, TC, potentiometer, linear resistance and bipolar mV input capability
  • Single or true dual inputs with sensor redundancy and drift detection
  • Wide ambient operating temperature range
  • HART 7 protocol compatibility
Environmental Conditions
Operating temperature -50°C to +85°C (standard) -40°C to +80°C (SIL)
Storage temperature -50°C to +85°C
Calibration temperature 23...25°C
Relative humidity < 99% RH (non-condensing)
Protection degree (enclosure/terminal) IP68 / IP00
Mechanical Specifications
Dimensions Ø 44 x 21.45 mm
Center hole diameter Ø 6.35 mm / ¼ in
Weight approx. 50 g
Wire size 1 x 1.5 mm² stranded wire
Screw terminal torque 0.4 Nm
Vibration IEC 60068-2-6
2...25 Hz: ±1.6 mm
25...100 Hz: ±4 g
Common Specifications
Supply
Supply voltage 7.5*...48** VDC
Internal power dissipation ≤ 850 mW
Additional min. supply voltage when using test terminals 0.8 V
Min. load resistance at >37 V supply (Vsupply - 37) / 23 mA
Performance Characteristics
Isolation voltage, test / working 2.5 kVAC / 55 VAC
Response time 75 ms
Programmable damping 0...60 s
Warm-up time < 5 min.
Start-up time < 2.75 s
Long-term stability ±0.05% of span / year (±0.18% of span / 5 years)
Signal / noise ratio > 60 dB
Input Specifications
RTD Input
RTD type Pt10...10000, Ni10...10000, Cu5...1000
Cable resistance per wire 50 Ω (max.)
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor current < 0.15 mA
Thermocouple Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) Constant, internal or external via a Pt100 or Ni100 sensor
Output Specifications
Normal range, programmable 3.8...20.5 / 20.5...3.8 mA
Extended range (output limits), programmable 3.5...23 / 23...3.5 mA
Updating time 10 ms
HART protocol revisions HART 7 and HART 5
Approvals and Certifications
ATEX DEKRA 18ATEX0135X
IECEx IECEx DEK. 16.0029X
CSA CSA 16.70066266
c FM us FM16US0287X / FM16CA0146X
SIL SIL 2 / SIL 3 certified & fully assessed acc. to IEC 61508
* / ** See manual for details
NAMUR NE95 report available upon request
