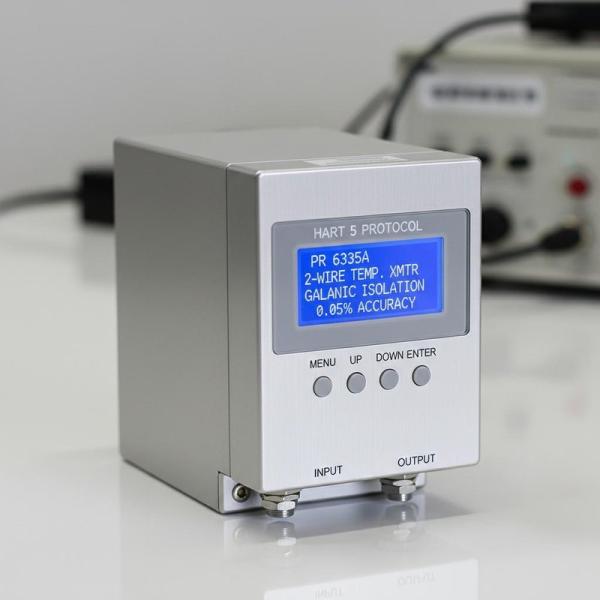

HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
HART 5 Protocol Temperature Transmitter PR 6335A 2 Wire With Galvanic Isolation
Specifications
Brand Name :
PR
Model Number :
PR 6335A
Certification :
CO
Place of Origin :
Denmark
MOQ :
1
Price :
150usd
Payment Terms :
T/T
Supply Ability :
99pcs 4-6 weeks
Delivery Time :
5-7 work days
Weight :
0.5KG
Power :
24VDC(12-30)VDC
Leading Time :
Negotiable
Input Type :
RTD, Thermocouple
Product No :
VE4005S2B1
Accuracies :
up to 0.035% standard & 0.025% Opt
Shipping Weight :
2.0kg
Storage Temperature :
-40 to 70°C (-40 to 158°F)
Measurement Medium :
gas and liquid compatible with 316LSS
User Memory :
48 MB
Mounting Type :
DIN Rail / Field Mount
Operating Voltage Range :
4.5 V DC ... 32 V DC
Function :
Compact photoelectric sensors
Voltage Rating :
DC 115V
Generic Code :
SICK8
Description
PR 6335A 2-wire HART Transmitter
  • RTD, TC, Ohm, or mV input capability
  • Extremely high measurement accuracy
  • HART 5 protocol compatibility
  • Galvanic isolation
  • Available in 1- or 2-channel versions
Environmental Conditions
Operating temperature -40°C to +85°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-condensing)
Protection degree IP20
Mechanical Specifications
Dimensions (HxWxD) 109 x 23.5 x 104 mm
Weight (1 / 2 channels) 145 / 185 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm² AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Technical Specifications
Power Supply
Supply voltage 8.0...35 VDC
Internal power dissipation, 1 / 2 ch. 19 mW...0.8 / 1.6 W
Isolation & Response
Isolation voltage, test / working 1.5 kVAC / 50 VAC
Response time (programmable) 1...60 s
Voltage drop 8.0 VDC
Warm-up time 30 s
Performance
Programming HART & PR 5909 Loop Link communications interface
Signal / noise ratio Min. 60 dB
Accuracy Better than 0.05% of selected range
Signal dynamics, input 22 bit
Signal dynamics, output 16 bit
Input Specifications
RTD Input
RTD type Pt100…1000, Ni100...1000, linear R
Cable resistance per wire 5 Ω (up to 50 Ω per wire possible with reduced accuracy)
Sensor current Nominal 0.2 mA
Sensor error detection Yes
Thermocouple Input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5
Cold junction compensation (CJC) < ±1.0°C
Sensor error detection Yes
Compliance & Approvals
EMC 2014/30/EU & UK SI 2016/1091
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
ATEX Approval DEKRA 20ATEX0109X
IECEx Approval DEK 20.0063X
CSA Approval 1125003
SIL Capability Hardware assessed for use in SIL applications
