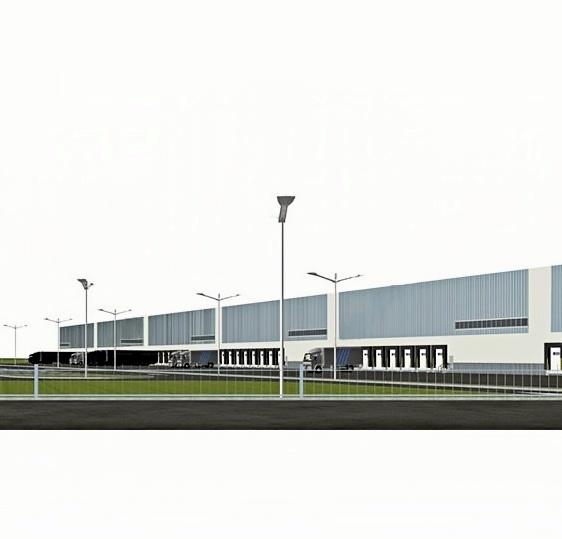

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial
Specifications
Brand Name :
Tsinlyne0819
Model Number :
94069000
Certification :
CE/ISO/SGS
Place of Origin :
CHINA
MOQ :
800sqm
Price :
30-45$
Payment Terms :
L/C,T/T
Supply Ability :
2500ton/month
Delivery Time :
10workdays
Packaging Details :
container
Structure Type :
Steel Frame Building
Sustainability :
Eco-friendly
Corrosion Resistance :
High
Material :
Steel
Application :
Industrial/Commercial
Size :
Customized
Description

Long Span Lightweight Yet Robust Steel Frame Building Enhanced Thermal Insulation Commercial Flex Spaces

Product Description:

Low Cost Construction Design Steel Metal Structure Building Plans Price Prefabricated Warehouse


A: Components of galvanized light steel structure

1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock

Remark: this list is for your reference but the elements can vary.

Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2

1. Economic : quick installed and saving the cost of construction
2. the period of delivery is very short and can installed very easily
3. Reliable quality: mainly produced in the factory and control the quality
4. big space: the max span of prefab steel structure can reach 80meters
5. antiseismic: because the weight is light
6. Flexible: can be dismantled and enlarged
7. Beautiful appearance: can use different colors
8. Long lifespan: can be used more than 30 years

B: The advantages of light steel structure
1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

C: If you need us to design the light steel building for you, we need to know the following:
1. rain load
2. live load
3.snow load
4.wind load
5.whether using the crane 6. length,wide,height

D :Features
Attractive design- -the whole house looks beautiful and elegant. The inner, outer walls and the roof boarding all use the color
steel sandwich panel, the material is polystyrene foam.
Light weight and convenient in shipping.

Easy to assemble and dismantle: the house can be rebuilt for dozens of times. The assembling only requires simple tools: plugs and
screw.
Firm structure- the house adopts steel frame structure ans sandwich panels.
Our houses are completely waterproof.
The house can be customized. The roof, wall, door, windows can be chosen by the customer.
Durable--the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 20 years.

E :Components
1) Wall panel: sandwich panel with color steel two sides and EPS foam filling
width:1200mm 1k=1200
2) Column: C style steel, H shape
3) Floor beam: C style steel,200*40*2.0mm
4) Floor: light magnesium board (our patent)
5) Stair: metal
6) Roof truss: angle steel
7) Purling tube metal
8) Roof panel: corrugated sandwich panel with color steel two sides and EPS foam filling
9) Wave height: 35mm
10) Trim of tile: color steel sheet
11) Door: aluminum frame with panel same as wall, with lock
12) Rust-proof way of building: painted or GI.

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial

Product Parameters:

Specifications
1)Size:MOQ is 10m2, width X length X eave height, roof slope
2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
3)Height: 3-10m
4)Slope: 1/20, 1/10,1/5,1/3
5)column distance: 6-9m
6) Base:Cement and steel foundation bolts
7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
8) Bracing: X or V or other type bracing made from angle, round pipe, etc
9) C or z purlin:Size from C120~C320, Z100~Z200
10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich
panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
Design Parameters
1)Live load on roof(KN/M2)
2)Wind speed(KM/H)
3)Snow load (KG/M2) if have
4)Earthquake load if have
5)Crane (if have) ,Crane span, crane lift height, max lift capacity
6)Doors and windows: dimension, quantity, position
7)The materials on the roof and the wall
8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
9) If you have other requirements,please also inform us.
10) It is better if you have your own drawings. please send them to me.

Advantages:

Steel frame buildings offer a multitude of advantages that make them a preferred choice in modern construction. Firstly, their exceptional strength and durability allow them to withstand heavy loads, extreme weather conditions like earthquakes and hurricanes, and resist fire and pests, ensuring a longer lifespan with reduced maintenance costs. Additionally, the use of prefabricated steel components enables rapid on-site assembly, slashing construction time by up to 50% compared to traditional methods—critical for projects where time efficiency directly impacts costs.

Secondly, steel’s design flexibility empowers architects to create innovative, column-free spaces and intricate structures that would be challenging with other materials, from expansive warehouses to sleek skyscrapers. Moreover, steel is one of the most recycled materials globally (over 90% recycled), and steel buildings can be designed for energy efficiency, aligning with sustainability goals. Economically, their durability and low maintenance further enhance long-term cost-effectiveness, while customization options for exterior finishes, roofing, and interiors ensure they meet diverse functional and aesthetic needs.

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial

Application:

Steel frame buildings are widely used across diverse sectors due to their strength, flexibility, and speed of construction. In industrial and storage,clear span rigid frames and multi-span rigid frames dominate, enabling large open spaces without interior columns—ideal for warehouses, airplane hangars, and manufacturing facilities. For example, portal frames (a type of clear span rigid frame) are a top choice for single-story structures like barns and industrial sheds, as their rigid moment-resisting connections provide high resilience against wind and vertical loads while minimizing material costs. Truss structures, with their lightweight yet rigid design, are also crucial for spanning vast distances in bridges, stadium roofs, and even TV towers, where their webbed configuration reduces steel usage without sacrificing strength.

In commercial and residential construction, steel framing offers equally significant advantages. Light gauge steel (LGS) systems are increasingly used in multi-story commercial buildings (up to 8 levels) and residential projects, from single-family homes to multifamily apartment complexes, thanks to their fire resistance, termite resistance, and superior seismic performance. Modular construction has also embraced steel framing, with factories producing transportable pods and entire homes at high speed, then assembling them on-site. Additionally, steel’s adaptability shines in institutional projects like schools and hospitals, as well as agricultural buildings such as barns and livestock shelters, where durability and low maintenance are essential. Whether for a sleek urban high-rise or a remote rural warehouse, steel frames provide the structural backbone for efficiency, safety, and architectural innovation.

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial

What you will get when choosing Tsin:

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial

Company Proflie:

Qingdao Tsin Steel Structure Construction Technology Co., Ltd. are engaged to provide integrated solution of steel structure workshop, warehouse and multi-storey steel building, including preliminary layout consulting, structural design, fabrication, delivery solution and installation guidance. Our production capacity is 2500 ton per month. The overall space of our factory is around 30,000m2. Through years of continual improvement, we have formed a complete set of building system solution. Our design engineers are skilled with advanced CAD and Tekla software, will provide you with most dependable and economical building structure. By Tekla structures detailing, material planning software and efficient processing equipment, we are able to produce accurate drawings quickly, purchase material efficiently and process your project precisely. we are committed to establish long term business relationships with all domestic and oversea customers. Our experienced project managers develop oversea markets and take charge in the entire progress of one project, including pre-sales technical communication, commercial terms confirmation, as well as implementation and tracking after contract signed. Coordinate and deal with the possible problem during the stage of material procurement, production, packaging, delivery. Timely feedback and deal with the technical consultation during construction to ensure the project implement smoothly. We have exported to many oversea countries but not limited: Australia, Indonesia, Philippines, Ghana, Mauritius, Benin, Rwanda, Cameroon, Tanzania, Seychelles, Chile,Venezuela, Guyana, Etc. Give us your idea, we make your dream come true.

Long Span Lightweight Steel Frame Metal Buildings Enhanced Thermal Insulation Commercial

FAQ:

Q: Are you trading company or manufacturer ?

A: We have our own steel structure, steel sheet and sandwich panel manufacturing factories. Welcome to our company to see our products and discuss your project.

Q: Can you provide on-site installation service?

A: We can provide Installation guide service based on customers’ request. The shop drawing, installation drawing and video will send to client to help the site erection. If need, our engineer will come to site to guide the installation.

Q. What is the delivery time?

A: It depends on the quantities of order. Generally, the delivery time will be within 25 to 60 days.

Q. How can I get a quotation for my project?

A: Pls no hesitate to send me message here or Email me. I will reply to you ASAP. Welcome to contact me for your building!
