Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Specifications
Brand Name :
TSIN
Model Number :
TSIN
Certification :
ISO, CE, SGS
Place of Origin :
Shandong, China
Place Of Origin :
Qingdao, Shandong, China
MOQ :
1000 sqm
Price :
USD 40-60 / sqm
Payment Terms :
T/T,L/C
Supply Ability :
100,000 sqm / month
Delivery Time :
6 weeks after shop drawing get approval
Packaging Details :
Packed on steel pallet with fixture and loaded into 40'HQ/OT
Warranty :
5 Years
Maintenance Costs :
Reduced
Labor Costs :
Lower
Connection :
Bolts
Insulation :
EPS, Glasswool, Rockwool, PU On Option
Thickness Of Panel :
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Using Life :
50 Years
Product :
Steel Structure
Material Grade :
Q355B, Q235B
Structure type :
Portal frame
Design Load :
Wind, Snow, Seismic
Design software :
PKPM, Tekla structures, CAD
Sand blasting :
Sa 2.5
Surface treatment :
Anti-corrosive paint or hot dipped galvanized
Description
Prefabricated Steel Frame Building with 50-Year Lifespan and Custom Insulation

High-strength prefabricated steel structure warehouse offering comprehensive one-stop solutions with fast delivery and expert installation guidance.

Product Specifications
Attribute Value
Application Fields Warehouse, Multi-building, Workshops & plants, Hospital, School, Office, Apartment
Drawing Design AUTOCAD, SOLIDWORKS, TEKLA
Maximum Roof Load 20+lb/sq.ft
Raw Steel Material Q235B, Q355B, ASTM A36
Frame Type Portal Frame
Design Parameter Wind Load, Snow Load And Earthquake
Working Scope Design, Fabrication, Installation
Life Span 30-50 Years
Surface treatment 1. Painting; 2. Galvanized
Standard GB, ASTM, EN, ISO, AS/ANS
Structural Design

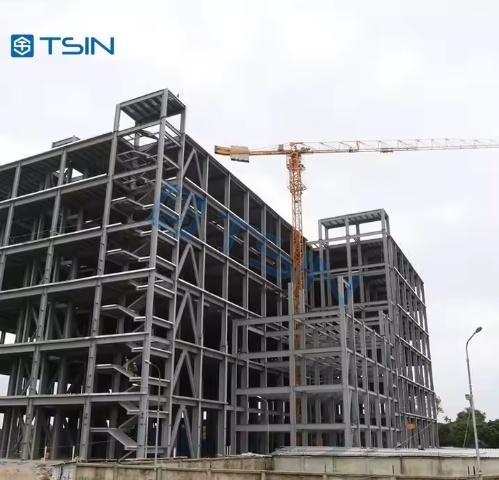

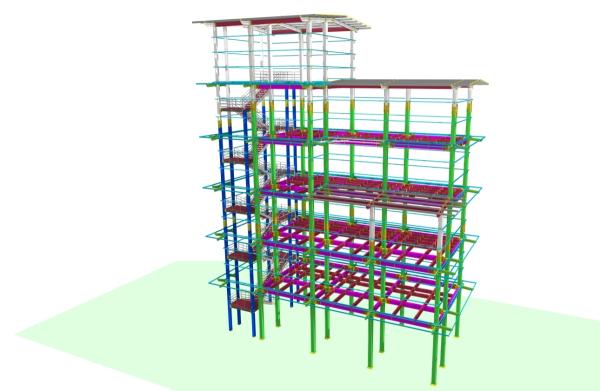

The steel frame features a portal frame structure, consisting of steel columns, beams, and bracing systems. When combined with the external enclosure, it forms a completely enclosed building that is designed to withstand harsh weather conditions.

Portal Frame Prefabricated Steel Frame Building Custom Insulation
Construction Features

  • Lightweight construction with high strength, large spans, and reduced foundation load

  • Shorter construction period compared to traditional concrete buildings

  • 20-30% lower investment cost than conventional structures

  • Excellent fireproof performance and corrosion resistance

  • Easily disassembled, relocated, and recycled for sustainability

Technical Specifications
  • Dimension: Custom length × width × eave height with roof slope
  • Type: Single/double/multi-slope; Single/double/multi-span; Single/double/multi-floor
  • Foundation: Concrete and steel foundation bolts
  • Column and Beam: Hot rolled or welded H steel Q355B with high strength bolts connection
  • Bracing: X or V type bracing made from angle steel or pipe
  • C/Z Purlin: Q235B C/Z section steel (C160-300 or Z160-300)
  • Roof/Wall Panel: Colorful corrugated steel sheet or sandwich panel with insulation
Portal Frame Prefabricated Steel Frame Building Custom Insulation
Quality Assurance

We enforce strict quality control measures throughout the entire project lifecycle, including:

  • Material inspections before and after fabrication

  • Precision measuring, cutting, and welding

  • Accurate placement of holes and cleats

  • Proper packaging and organized loading sequence

  • On-site erection as needed

Portal Frame Prefabricated Steel Frame Building Custom Insulation
Company Profile

Qingdao Tsin Steel Structure Construction Technology Co., Ltd. provides integrated solutions for steel structure workshops, warehouses, and multi-storey buildings.

Who are we?

Based in Shandong, China since 2025, we serve global markets with a team of 5-10 professionals.

How do we guarantee quality?

Pre-production samples and final inspections before shipment ensure consistent quality standards.

Why choose us?

20+ years experience providing complete steel structure solutions with integrated design, fabrication, and installation services.
