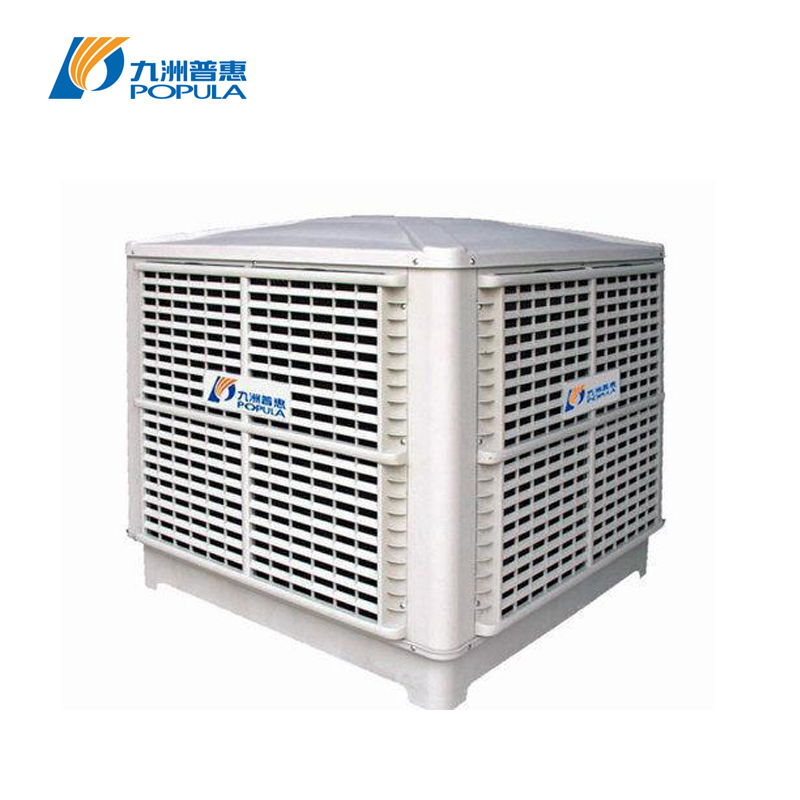

Wall Mount Evaporative Cooling System 18000m3/H Axial Cooling Fan 1.1kW 380V For Factory
Wall Mount Evaporative Cooling System 18000m3/H Axial Cooling Fan 1.1kW 380V For Factory
Specifications
Operatingtemperature :
-20°C to 80°C
MOQ :
1 set
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Certification :
CE, UL, Rohs
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Place of Origin :
China
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Payment Terms :
T/T
Airflowcapacity :
1000 - 50000 CFM
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Material :
Steel / Stainless Steel
Supply Ability :
100000 Sets/week
Brand Name :
Popula
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Inletdiameter :
200 - 1200 mm
Description

ZX/ZC/ZS/A1-S1 Series Standard Evaporative Air Cooler

This wall-mounted standard evaporative air cooler series includes six complete models with fixed 18000 m³/h airflow, sorted by 3 air outlet directions (downward ZX / side ZC / top ZS) and 2 grades of mechanical control (A-class / S-class). It adopts integrated anti-aging PP cabinet, matched with 1.1kW F-class axial-flow motor and 25L built-in water tank, widely applied to medium & large factories, supermarkets, schools and agricultural greenhouses covering 100–150 ㎡.

Core Product Features

Material & Structural Properties

· Integrated thickened anti-aging PP plastic cabinet, wall hoisting installation design; detachable angle iron wall mount bracket is an optional non-standard accessory. Three air outlet layouts adapt different on-site wall height, beam and overhead pipeline conditions: downward air outlet (ZX, recommended priority if installation space permits), side air outlet (ZC), top air outlet (ZS).

· Two independent mechanical control grades for all models:

A-Class Mechanical Controller: Single fixed wind speed, supports cooling, regular cleaning, ventilation and swing wind functions; only equipped with phase loss protection, cost-effective for general low-risk industrial workshops.

S-Class Mechanical Controller: Single fixed wind speed, with full multi-protection including phase loss, overload, short-circuit and electric leakage, higher safety standard for chemical, metal processing and high-hazard production workshops.

· Dedicated 1.1kW F-class insulated axial-flow motor with IP54 dustproof & waterproof protection grade, outstanding high temperature & humidity resistance, high efficiency, low noise and stable 24-hour non-stop industrial operation, matched with 380V three-phase industrial power supply. Max static pressure reaches 180Pa for long-distance cool wind delivery.

· Optimized fluid mechanics axial-flow plastic fan wheel, smooth air duct to reduce wind resistance, balanced air intake & outlet for uniform wide-area cooling coverage.

· Built-in 25L environmental PP anti-aging water tank; under medium wind cooling mode, full water supports continuous operation for 6–8 hours, reserved tap water inlet interface for automatic water replenishment refitting.

· Thickened high-density special corrugated honeycomb cooling pad made of new polymer composite material, featuring ultra-high water absorption, mildew resistance, anti-aging and long service life.

· Foldable closed air inlet shutter blocks dust and insects during standby, easy to disassemble for daily cleaning maintenance.

· Intelligent water shortage protection system for both control versions: water pump and cooling functions auto shut down with alarm reminder when tank lacks water to avoid dry burning damage to cooling pad.

Core Advantages

· Three Optional Air Outlet Directions: Downward / side / top air outlet to flexibly match different workshop space layouts; downward outlet delivers the most balanced indoor air circulation effect.

· Dual Safety-Grade Mechanical Controllers: A-class basic phase-loss protection for conventional factories with lower budget; S-class full multi-protection for workshops with strict electrical safety requirements.

· Wall-Mounted Space-Saving Design: Hoisting installation does not occupy factory production floor space, effectively saving ground area for production lines.

· 18000 m³/h Large Air Volume & Stable Static Pressure: Matches cooling demand of 100–150 square meters medium-large workshops, shopping malls and breeding greenhouses.

· Diversified Wide Application Scenarios: Suitable for high-temperature processing factories, crowded commercial venues, dust-free coating booths and agricultural planting greenhouses.

· Stable All-Day Continuous Operation: F-class high temperature resistant motor + thickened cooling pad structure, low failure rate for long-time non-stop factory cooling.

Usage Restrictions

Only applicable for indoor and shaded semi-open industrial, agricultural and commercial ventilation cooling scenarios; avoid long-term direct sunlight exposure. Only clean tap water can be filled into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Six configurable complete specifications:

ZX/A1-18: A-class mechanical control + downward air outlet

ZX/S1-18: S-class mechanical control + downward air outlet

ZC/A1-18: A-class mechanical control + side air outlet

ZC/S1-18: S-class mechanical control + side air outlet

ZS/A1-18: A-class mechanical control + top air outlet

ZS/S1-18: S-class mechanical control + top air outlet Standard set includes cooling pad, dustproof air-in shutter, motor and control box; wall mounting bracket is optional extra accessory.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Capacity(L) Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
ZX/A1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1100×1000 670×670 ≤71 59.5 100-150 1 single gear A-class mechanical switch control
ZX/S1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1100×1000 670×670 ≤71 59.5 100-150 1 single gear S-class mechanical switch control
ZC/A1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1120×1000 670×670 ≤71 61.5 100-150 1 single gear A-class mechanical switch control
ZC/S1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1120×1000 670×670 ≤71 61.5 100-150 1 single gear S-class mechanical switch control
ZS/A1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1100×1030 675×675 ≤71 63 100-150 1 single gear A-class mechanical switch control
ZS/S1-18 18000 180 Axial-flow 380/50 1.1 2.8 25 1100×1100×1030 675×675 ≤71 63 100-150 1 single gear S-class mechanical switch control

Q1: What venues is ZX/ZC/ZS-A1/S1-18 standard wall-mounted evaporative air cooler suitable for?
A1: It is widely used in medium-large high-temperature processing factories, large supermarkets, school classrooms, internet cafes, livestock breeding farms and agricultural greenhouses, covering spaces of 100 to 150 square meters.
Q2: What is the difference between downward, side and top air outlet models? Which one is recommended?
A2: ZX downward air outlet realizes the most uniform natural air circulation and is priority recommended if installation space allows; ZC side air outlet adapts walls with horizontal beam obstacles; ZS top air outlet matches low wall height or overhead dense pipeline venues. All three share identical airflow and power parameters.
Q3: What is the core difference between A-class and S-class mechanical controllers?
A3: A-class controller only provides basic phase loss protection with lower cost, suitable for ordinary low-risk workshops; S-class controller adds overload, short-circuit and electric leakage triple safety protection, designed for chemical, metal cutting and high humidity dangerous workshops. Both adopt 380V three-phase industrial power supply with single fixed wind speed.
Q4: Does this wall-mounted model save factory ground production space?
A4: Yes, it adopts wall hoisting installation and does not occupy indoor floor space. Corresponding angle iron wall mounting bracket is supplied as an optional accessory.
Q5: Can the machine connect tap water pipeline to realize automatic water replenishment?
A5: It reserves special water inlet interface, which can be equipped with floating ball valve to realize unattended automatic water replenishment for 24-hour continuous production workshops.
Q6: Will the machine automatically stop cooling and alarm when the water tank runs out of water?
A6: Both A and S control versions are equipped with water shortage detection protection system. The water pump and cooling function will shut down automatically with alarm reminder to prevent dry burning damage to honeycomb cooling pad.
Q7: How long can the built-in 25L water tank run continuously after full filling?
A7: Under medium wind cooling mode, fully filled tap water can support continuous cooling for about 6–8 hours without repeated manual refilling.
Q8: What material is the cooling pad made of, and how often to replace it under daily industrial operation?
A8: The cooling pad is thick honeycomb polymer composite material with super high water absorption and mildew resistance. Under long-time daily industrial continuous use, it can work for 6–12 months before replacement.
Q9: Can we customize special voltage such as 110V/60Hz for bulk container orders?
A9: Standard configuration is 380V/50Hz three-phase industrial voltage for mainstream markets. We support customized motor and control box voltage for large wholesale bulk orders.
Q10: What complete after-sales spare parts and technical guidance can you provide for bulk purchase?
A10: Each unit is equipped with full English operation manual. We supply complete spare parts including cooling pad, mechanical control box, F-class drive motor and dustproof air shutter, and provide professional wall installation & fault troubleshooting technical support for all wholesale customers.
