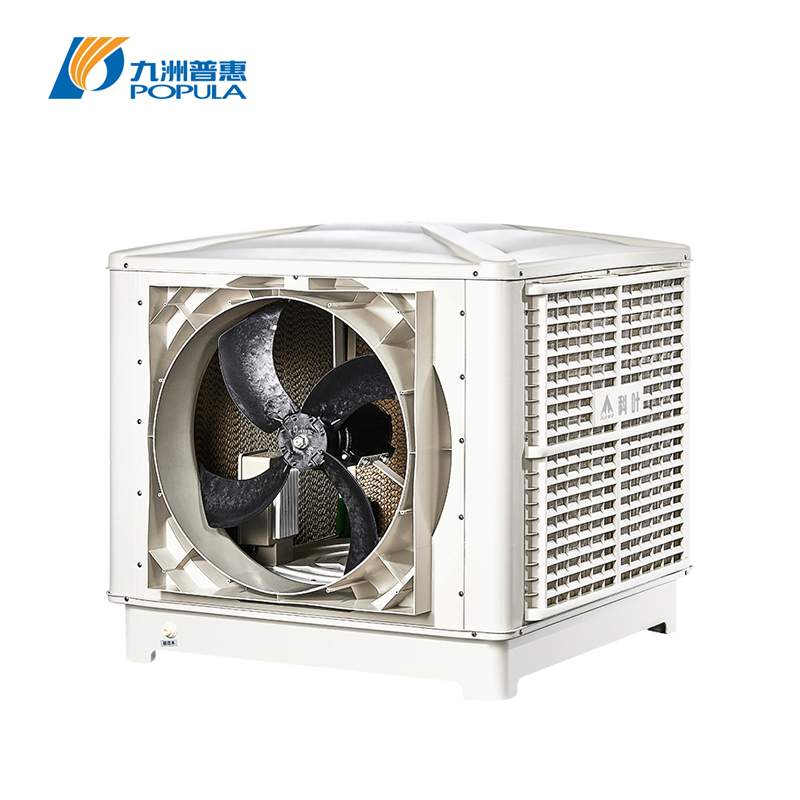

Industrial Evaporative Cooling System Wall Hung Air Cooler 23000m3/H 1.5kW For Warehouse
Industrial Evaporative Cooling System Wall Hung Air Cooler 23000m3/H 1.5kW For Warehouse
Specifications
Brand Name :
Popula
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Operatingtemperature :
-20°C to 80°C
MOQ :
1 set
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Place of Origin :
China
Inletdiameter :
200 - 1200 mm
Airflowcapacity :
1000 - 50000 CFM
Powersupply :
220V / 380V / 440V
Supply Ability :
100000 Sets/week
Material :
Steel / Stainless Steel
Certification :
CE, UL, Rohs
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Payment Terms :
T/T
Protectionclass :
IP54 / IP55
Description

ZX/ZC/ZS-23 Series Luxury Wall-Mounted Evaporative Air Cooler

The ZX/ZC/ZS-23 Series Luxury Wall-Hung Evaporative Air Cooler includes six full models with fixed 23000 m³/h airflow, divided by three air outlet directions (downward ZX / side ZC / top ZS) and two control types (single-speed mechanical / 12-speed variable frequency LCD inverter). It features thickened luxury integrated PP cabinet, wall-mounted hoisting design with 1.5kW high-power F-class motor and 25L built-in water tank, suited for large high-temperature factories, breeding farms and greenhouses covering 100–180 ㎡.

Core Product Features

Material & Structural Properties

· Thickened anti-aging integrated PP luxury cabinet, wall hoisting installation; detachable angle iron wall bracket is optional accessory. Three air outlet layouts for different site conditions: downward air outlet (ZX, recommended priority if space permits), side air outlet (ZC), top air outlet (ZS).

· Two independent control systems for all models:

Single-speed mechanical controller: Single fixed wind speed, supports cooling, regular cleaning, ventilation, exhaust & swing wind; equipped with overload and pump water shortage auto-stop protection, matched with 380V three-phase industrial power supply.

Variable frequency inverter LCD controller: 12 adjustable wind speeds, real-time temperature display, full multi-protection against overvoltage, undervoltage, overload, phase loss and water shortage, matched with universal 220V single-phase commercial power supply.

· Dedicated 1.5kW F-class insulated motor with IP54 dustproof & waterproof grade, excellent high temperature & humidity resistance, high static pressure, low noise and stable 24-hour continuous industrial operation. Max static pressure reaches 210Pa for long-distance air delivery.

· Optimized fluid mechanics axial-flow plastic fan wheel, smooth air duct to reduce wind resistance, uniform wide-area cool wind coverage.

· Built-in 25L environmental PP water tank, anti-aging and crack resistant; medium wind cooling mode supports continuous operation for 6–8 hours after full filling, reserved tap water inlet for automatic water supply transformation.

· Thickened high-density special corrugated honeycomb cooling pad made of new polymer composite material, ultra-high water absorption, mildew-proof and long service life.

· Foldable closed air inlet shutter blocks dust and insects during standby, easy disassembly for daily cleaning maintenance.

· Complete safety protection system: Water shortage pump auto-stop alarm, overload, overvoltage, undervoltage and phase loss power-off protection for both control versions.

Core Advantages

· Three Optional Air Outlet Directions: Downward / side / top air outlet to adapt different wall height, beam and overhead pipeline layouts; downward outlet has the best natural air circulation effect.

· Dual Control Versions Optional: Cost-effective single-speed mechanical control for basic industrial cooling demand; 12-speed variable frequency inverter control with temperature display for high-precision adjustable cooling scenarios.

· Wall-Mounted Space-Saving Structure: Hoisting installation does not occupy factory ground production space, ideal for workshops with limited floor area.

· 23000 m³/h Large Air Volume & High Static Pressure: Higher airflow and static pressure than 18000 m³/h models, perfectly matches ultra-large-span workshops over 150 square meters.

· Luxury Thickened Cabinet Appearance: Better texture and structural rigidity than standard series, suitable for high-standard factory, exhibition and agricultural greenhouse projects.

· Wide Application Coverage: Applicable for high-temperature processing factories, large shopping malls, school classrooms, internet cafes, livestock breeding farms and agricultural greenhouses covering 100–180 square meters.

Usage Restrictions

Only suitable for indoor and shaded semi-open industrial, agricultural and commercial space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be injected into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Six complete configurable specifications:

ZX-23: Single-speed mechanical control + downward air outlet

ZX/BP-23: 12-speed variable frequency inverter control + downward air outlet

ZC-23: Single-speed mechanical control + side air outlet

ZC/BP-23: 12-speed variable frequency inverter control + side air outlet

ZS-23: Single-speed mechanical control + top air outlet

ZS/BP-23: 12-speed variable frequency inverter control + top air outlet Standard set includes cooling pad, dustproof air-in shutter, motor and control panel; wall mounting bracket is optional extra accessory.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Capacity(L) Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
ZX-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1000 670×670 ≤73 59.5 100-180 1 single gear Single-speed mechanical control
ZX/BP-23 23000 210 Axial-flow 220/50 1.5 8.5 25 1100×1100×1000 670×670 ≤73 59.5 100-180 12 adjustable speeds Variable frequency inverter LCD control
ZC-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1120×1000 670×670 ≤73 61.5 100-180 1 single gear Single-speed mechanical control
ZC/BP-23 23000 210 Axial-flow 220/50 1.5 8.5 25 1100×1120×1000 670×670 ≤73 61.5 100-180 12 adjustable speeds Variable frequency inverter LCD control
ZS-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1030 675×675 ≤73 63 100-180 1 single gear Single-speed mechanical control
ZS/BP-23 23000 210 Axial-flow 220/50 1.5 8.5 25 1100×1100×1030 675×675 ≤73 63 100-180 12 adjustable speeds Variable frequency inverter LCD control

Q1: What industrial, agricultural and commercial venues is ZX/ZC/ZS-23 luxury wall-mounted evaporative air cooler suitable for?
A1: It is widely applied in high-temperature processing factories, livestock breeding farms, agricultural greenhouses, large shopping malls and exhibition halls, covering spaces of 100 to 180 square meters.
Q2: What is the difference between downward, side and top air outlet models? Which one is recommended?
A2: ZX downward air outlet has the best natural air circulation effect and is recommended priority if installation space allows; ZC side air outlet fits walls with horizontal beam obstacles; ZS top air outlet matches low wall height or overhead dense pipeline venues. Their airflow and power parameters are identical.
Q3: What is the core difference between single-speed mechanical model and BP variable frequency inverter model?
A3: Single-speed mechanical version only has one fixed wind speed with basic cooling/timing functions, adopts 380V three-phase industrial voltage with lower cost; BP inverter model supports 12 adjustable wind speeds with real-time temperature display, uses universal 220V single-phase commercial voltage for precise cooling regulation.
Q4: Is this wall-mounted type able to save factory ground production space?
A4: Yes, it adopts wall hoisting installation and does not occupy indoor floor space. Corresponding angle iron wall mounting bracket is available as optional accessory.
Q5: Does the machine support automatic water replenishment by connecting tap water pipeline?
A5: It reserves dedicated water inlet interface, which can be matched with floating ball valve to realize unattended automatic water replenishment for 24-hour continuous production workshops.
Q6: Will the machine automatically stop cooling and alarm when the water tank runs out of water?
A6: Both single-speed and inverter versions equip water shortage detection protection system. The water pump and cooling function will shut down automatically with alarm reminder to prevent dry burning damage to honeycomb cooling pad.
Q7: How many hours can the built-in 25L water tank run continuously after full filling?
A7: Under medium wind cooling mode, fully filled 25L tap water can support continuous cooling for about 6–8 hours without repeated manual refilling.
Q8: What material is the cooling pad made of, how often to replace it under daily industrial operation?
A8: The cooling pad is thick honeycomb polymer composite material with super high water absorption and mildew resistance. Under long-time daily industrial continuous use, it can work for 6–12 months before replacement.
Q9: Can we customize special voltage such as 110V/60Hz for bulk container orders?
A9: Standard single-speed model is 380V/50Hz, inverter model is 220V/50Hz for mainstream global markets. We support customized motor and control box voltage for large wholesale bulk orders.
Q10: What complete after-sales spare parts and technical support can you provide for bulk purchase?
A10: Each unit is equipped with full English operation manual. We supply complete spare parts including cooling pad, LCD inverter control board, F-class drive motor and dustproof air shutter, and provide professional installation & fault troubleshooting technical guidance for wholesale customers.
