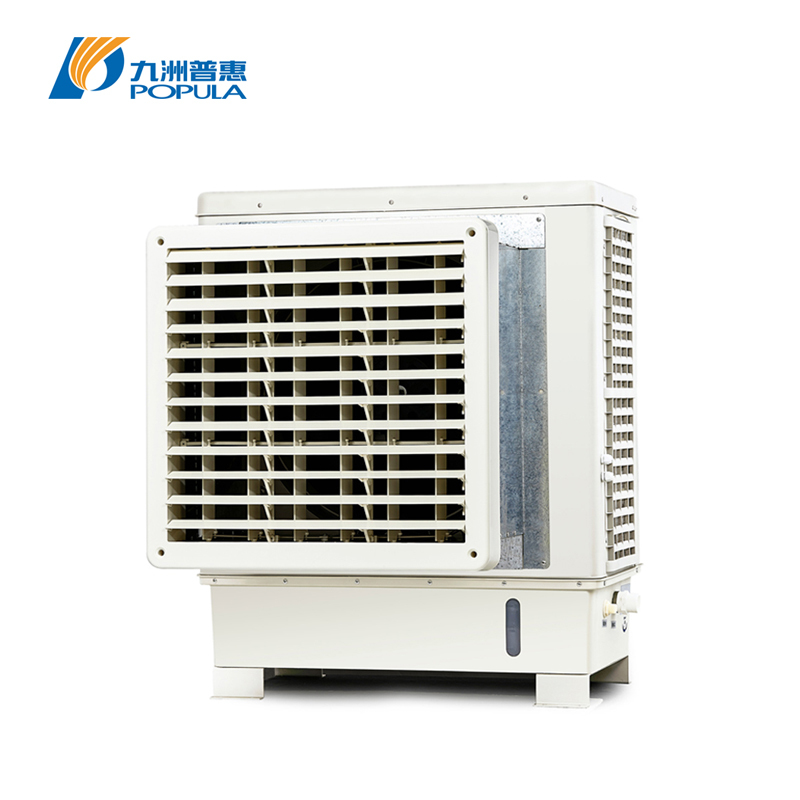

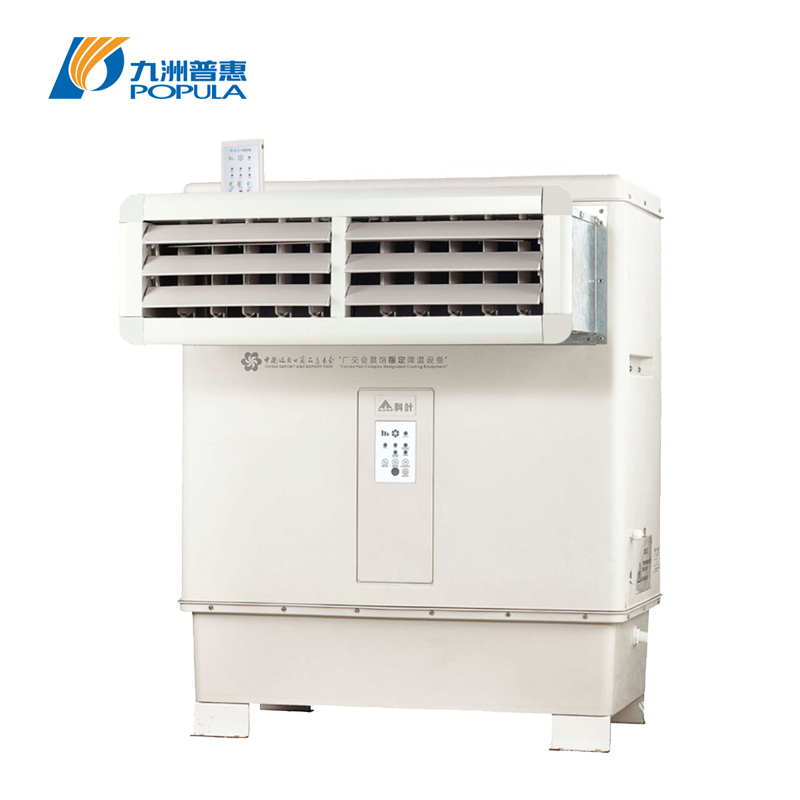

ZC & LC Series Window Type Evaporative Air Cooler for Business & Home Use

The ZC & LC Series Window Mount Evaporative Air Cooler includes three compact wall/window mounted models: ZC-60K, ZC-72K, LC-80K. It features slim lightweight body, wall-mounted installation design, low water consumption and quiet operation, specially developed for home, small shops, offices and small commercial spaces covering 30–60 ㎡.

Core Product Features

Material & Structural Properties

· Ultra slim integrated PP plastic cabinet, compact lightweight design, supporting wall/window embedded installation with matched metal mounting bracket (optional accessory).

· Standard full DSP electronic touch controller, equipped with 3 adjustable wind speeds, cooling, swing wind and water shortage auto-stop alarm function, with compact remote control for easy operation.

· Two fan type options: axial-flow fan for ZC-60K / ZC-72K; centrifugal volute fan for LC-80K with stronger air pressure for long duct air delivery.

· Built-in Class B insulated dedicated motor with IP54 dustproof & waterproof protection grade, high temperature & humidity resistance, low noise and stable startup performance.

· Adjustable foldable air outlet shutter; can be fully closed when standby to block dust and insects, protecting internal fan and cooling pad.

· Small 38L anti-aging PP plastic water tank, low water consumption only 20L/h under normal cooling mode; medium wind continuous operation for 6–8 hours after full filling.

· High-density honeycomb cooling pad made of new polymer composite material, high water absorption, mildew-proof, anti-aging and long service life.

· Optional galvanized air duct for connecting separated rooms to realize remote air supply.

· Built-in dust & insect prevention air-in louver, easy disassembly for daily cleaning and maintenance.

· Intelligent water shortage protection system: cooling function automatically stops and triggers alarm reminder when tank lacks water to avoid dry burning damage to cooling pad.

Core Advantages

· Slim Compact Window/Wall Mount Design: Smaller size and lighter weight than mobile vertical coolers, flexible wall/window installation to save floor space, ideal for small rooms, convenience stores and offices.

· Excellent Silent Cooling Performance: Max operating noise ≤65dB, cooling temperature drop range of 4℃~10℃, comfortable cool wind without harsh noise disturbance.

· Low Water & Energy Consumption: Only 20 liters water consumption per hour, low rated power from 0.26kW~0.45kW, ultra-low daily operation cost.

· Dual Fan Structure Selection: Axial-flow models (ZC series) for direct short-distance air supply; centrifugal LC-80K supports long-distance air duct transmission for separated room cooling demands.

· Complete Supporting Accessories Optional: Matching installation bracket and galvanized ventilation air duct available for pipeline remote air delivery layout.

· Wide Small-Space Application Coverage: Suitable for household apartments, convenience stores, grocery shops, dormitories, internet cafes, small offices and retail venues covering 30–60 square meters.

Usage Restrictions

Only suitable for indoor and semi-shaded small space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be added into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Three complete specifications for mixed selection:

ZC-60K: Axial-flow fan, max airflow 6800 m³/h, 3-speed full electronic touch control

ZC-72K: Axial-flow fan, max airflow 7200 m³/h, 3-speed full electronic touch control

LC-80K: Centrifugal fan, max airflow 8000 m³/h, 3-speed full electronic touch control Standard set includes cooling pad, filter louver, touch control panel and power cord; mounting bracket and galvanized air duct are optional extra accessories.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Capacity(L) Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
ZC-60K 6800 40 Axial-flow 220V/50 0.26 1.3 38 860×500×980 545×570 ≤56 38 30-60 3 speeds Full electronic touch control
ZC-72K 7200 40 Axial-flow 220V/50 0.3 1.3 38 860×500×980 525×555 ≤60 38 30-60 3 speeds Full electronic touch control
LC-80K 8000 60 Centrifugal 220V/50 0.45 2.0 38 840×490×980 690×165 ≤65 38 30-60 3 speeds Full electronic touch control

Q1: What small commercial and household spaces is this window-type evaporative air cooler suitable for?
A1: It is widely applied for home apartments, convenience stores, grocery shops, student dorms, internet cafes and small private offices, covering spaces of 30 to 60 square meters.
Q2: What’s the difference between axial-flow ZC series and centrifugal LC-80K model?
A2: ZC-60K / ZC-72K adopt axial-flow fan for direct short-distance air supply with lower noise; LC-80K uses centrifugal volute fan with higher static pressure, which can connect galvanized air duct to deliver cool wind to separated distant rooms.
Q3: Can this cooler be installed on walls or windows to save floor space?
A3: Yes, it supports embedded window and wall-mounted installation. Corresponding metal installation bracket is supplied as optional accessory, no occupation of indoor ground area.
Q4: Does the unit come with remote control for convenient operation?
A4: Equipped with compact matching remote control, all functions including wind speed, cooling and swing wind can be adjusted remotely.
Q5: Will the machine automatically stop cooling and alarm when the water tank runs out of water?
A5: All three models have water shortage protection system. Cooling function will shut down automatically and send alarm reminder to prevent dry burning damage to honeycomb cooling pad.
Q6: How much water does the cooler consume per hour, and how long can full tank water last?
A6: Water consumption is only about 20 liters per hour under medium wind cooling mode; the 38L tank can continuously cool for 6–8 hours after full tap water filling.
Q7: What material is the cooling pad made of, how often to replace it under daily use?
A7: The cooling pad is high-density honeycomb polymer composite material with strong water absorption and mildew resistance. Under normal daily use, it can work continuously for 6–12 months before replacement.
Q8: Is the galvanized air duct included in the standard package?
A8: Galvanized air duct and wall mounting bracket are optional extra accessories, not included in standard full set.
Q9: Can we customize voltage like 110V/60Hz for bulk container orders?
A9: Standard configuration is 220V/50Hz for Asia and European markets. We support customized motor and control board voltage for large wholesale bulk orders.
Q10: What after-sales spare parts and technical support can you provide for bulk purchase?
A10: Each unit is equipped with complete English operation manual. We supply full spare parts including cooling pad, touch control board, drive motor and dustproof shutter, and provide professional installation & troubleshooting technical guidance for wholesale customers.
