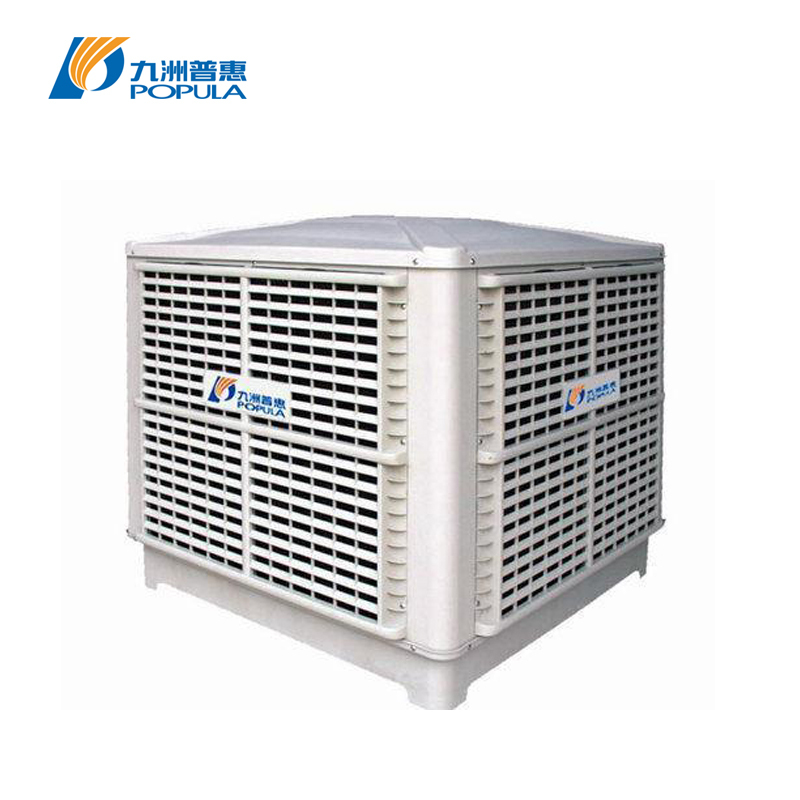

Large Airflow Industrial Evaporative Air Cooler 23000m3/H Wall Hung Space Saving Design
Large Airflow Industrial Evaporative Air Cooler 23000m3/H Wall Hung Space Saving Design
Large Airflow Industrial Evaporative Air Cooler 23000m3/H Wall Hung Space Saving Design
Large Airflow Industrial Evaporative Air Cooler 23000m3/H Wall Hung Space Saving Design
Specifications
Operatingtemperature :
-20°C to 80°C
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
MOQ :
1 set
Certification :
CE, UL, Rohs
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Brand Name :
Popula
Payment Terms :
T/T
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Place of Origin :
China
Material :
Steel / Stainless Steel
Supply Ability :
100000 Sets/week
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Inletdiameter :
200 - 1200 mm
Description

ZX/ZC/ZS-23 Series Standard Wall-Mounted Evaporative Air Cooler (23000 m³/h)

The ZX/ZC/ZS-23 Series Wall-Hung Industrial Evaporative Air Cooler has six full models with fixed 23000 m³/h large airflow, categorized by three air outlet directions (downward / side / top) and two mechanical control safety grades (A-class / S-class). It adopts wall-mounted installation design, equipped with 1.5kW high-power industrial motor and 25L built-in water tank, ideal for large factories, supermarkets, breeding farms and greenhouses covering 100–180 ㎡.

Core Product Features

Material & Structural Properties

· Integrated thickened anti-aging PP plastic cabinet, wall hoisting structure with detachable angle iron wall bracket (optional accessory). Three air outlet layouts for different on-site pipeline & wall height conditions: ZX downward air outlet, ZC side air outlet, ZS top air outlet. Downward outlet is recommended for better air circulation if space allows.

· Two independent mechanical control grades for all models:

A-Class Mechanical Controller: Single fixed wind speed, supports cooling, cleaning & swing wind functions; only equipped with phase loss protection, cost-effective for general low-risk workshops.

S-Class Mechanical Controller: Single fixed wind speed, full multi-protection including overload, short-circuit and electric leakage, higher safety standard for chemical, metal processing and high humidity dangerous workshops.

· Dedicated 1.5kW F-class insulated motor with IP54 dustproof & waterproof grade, strong high temperature & humidity resistance, high static pressure output, low noise and stable 24-hour continuous industrial operation, matched with 380V three-phase industrial power supply.

· High static pressure axial-flow plastic fan wheel with optimized fluid mechanics air duct design, max static pressure up to 210Pa, realizing long-distance wide-area cool wind delivery.

· Built-in 25L integrated environmental PP water tank, medium wind cooling mode can run continuously for 6–8 hours after full filling; reserved interface for tap water pipeline automatic water replenishment transformation.

· Thickened high-density special corrugated honeycomb cooling pad made of new polymer composite material, ultra-high water absorption, mildew-proof, anti-aging and long service life.

· Foldable closed air inlet shutter to block dust and insects during standby, easy disassembly for daily cleaning maintenance.

· Complete safety protection system: water shortage pump auto-stop alarm, phase loss / overload / short-circuit / leakage multi-layer power-off protection for both A & S grade control versions.

Core Advantages

· Three Optional Air Outlet Directions: Downward / side / top air outlet to adapt different workshop wall height, beam and overhead pipeline layout restrictions; downward outlet version delivers the most balanced air circulation.

· Two Safety-Grade Mechanical Controllers Optional: A-class basic phase loss protection for conventional factories; S-class triple overload/short-circuit/leakage protection for high-risk production workshops with strict safety standards.

· Wall-Mounted Space-Saving Design: Hoisting installation does not occupy factory production floor space, perfect for workshops with limited ground area. Matched wall bracket available as optional accessory.

· 23000 m³/h Ultra Large Air Volume & High Static Pressure: 1.5kW high-power motor brings larger airflow and higher static pressure than 18000 m³/h models, suitable for ultra-large-span workshops over 150 square meters.

· Diversified Wide Application Scenarios: Applicable for high-temperature processing factories, large shopping malls, school teaching buildings, internet cafes, livestock breeding farms and agricultural greenhouses covering 100–180 square meters, also supporting centralized air replacement ventilation projects.

· Stable All-Day Industrial Continuous Operation: F-class high temperature resistant motor + thickened cooling pad structure, low failure rate for long-time non-stop factory cooling.

Usage Restrictions

Only applicable for indoor and shaded semi-open large industrial, agricultural and commercial space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be injected into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Six complete configurable specifications:

ZX/A-23: A-class mechanical control + downward air outlet

ZX/S-23: S-class mechanical control + downward air outlet

ZC/A-23: A-class mechanical control + side air outlet

ZC/S-23: S-class mechanical control + side air outlet

ZS/A-23: A-class mechanical control + top air outlet

ZS/S-23: S-class mechanical control + top air outlet Standard set includes cooling pad, dustproof air-in shutter, motor and control box; wall mounting bracket is an extra optional accessory.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Capacity(L) Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
ZX/A-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1000 670×670 ≤73 59.5 100-180 1 single gear A-class mechanical switch control
ZX/S-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1000 670×670 ≤73 59.5 100-180 1 single gear S-class mechanical switch control
ZC/A-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1120×1000 670×670 ≤73 61.5 100-180 1 single gear A-class mechanical switch control
ZC/S-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1120×1000 670×670 ≤73 61.5 100-180 1 single gear S-class mechanical switch control
ZS/A-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1030 675×675 ≤73 63 100-180 1 single gear A-class mechanical switch control
ZS/S-23 23000 210 Axial-flow 380/50 1.5 3.7 25 1100×1100×1030 675×675 ≤73 63 100-180 1 single gear S-class mechanical switch control

Q1: What industrial, agricultural and commercial venues is ZX/ZC/ZS-23 wall-mounted evaporative air cooler suitable for?
A1: It is widely applied in large high-temperature processing workshops, livestock breeding farms, agricultural greenhouses, shopping malls and exhibition halls, covering spaces of 100 to 180 square meters.
Q2: What is the difference between downward, side and top air outlet models? Which one is recommended?
A2: ZX downward air outlet delivers the most uniform air circulation and is the priority recommendation if installation space allows; ZC side air outlet fits walls with horizontal beam obstacles; ZS top air outlet matches low wall height or overhead pipeline dense venues. All three share identical airflow and power parameters.
Q3: What is the core difference between A-class and S-class mechanical controllers?
A3: A-class controller only provides basic phase loss protection, lower cost for ordinary low-risk factories; S-class adds overload, short-circuit and electric leakage triple safety protection, designed for chemical, metal cutting and high humidity dangerous workshops. Both use 380V three-phase industrial power supply with single fixed wind speed.
Q4: Is this wall-mounted type able to save factory ground space?
A4: Yes, it adopts wall hoisting installation and does not occupy production floor space. Corresponding angle iron wall mounting bracket is available as an optional matching accessory.
Q5: Does the machine support automatic water replenishment by connecting tap water pipeline?
A5: It reserves special water inlet interface, which can be connected to tap water pipeline with floating ball valve to realize unattended automatic water refilling for 24-hour continuous production workshops.
Q6: Will the cooler automatically stop cooling and send an alarm when the water tank runs out of water?
A6: Both A and S grade control versions are equipped with water shortage detection protection system. The water pump and cooling function will shut down automatically with alarm reminder to prevent dry burning damage to honeycomb cooling pad.
Q7: How long can the built-in 25L water tank run continuously after full filling?
A7: Under medium wind cooling mode, fully filled tap water can support continuous cooling for about 6–8 hours without repeated manual refilling.
Q8: What material is the cooling pad made of, how often to replace it under daily industrial use?
A8: The cooling pad is thick honeycomb polymer composite material with super high water absorption and mildew resistance. Under long-time daily industrial continuous operation, it can work for 6–12 months before replacement.
Q9: Can we customize special voltage such as 110V/60Hz for bulk container orders?
A9: Standard configuration is 380V/50Hz three-phase industrial voltage for mainstream markets. We support customized motor and control box voltage for large wholesale bulk orders.
Q10: What complete after-sales spare parts and technical guidance can you provide for bulk purchase?
A10: Each unit is equipped with full English operation manual. We supply complete spare parts including cooling pad, mechanical control box, F-class drive motor and dustproof air shutter, and provide professional wall installation & fault troubleshooting technical support for all wholesale customers.
