Specifications
Place of Origin :
China
Operatingtemperature :
-20°C to 80°C
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Payment Terms :
T/T
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Supply Ability :
100000 Sets/week
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Certification :
CE, UL, Rohs
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Airflowcapacity :
1000 - 50000 CFM
MOQ :
1 set
Material :
Steel / Stainless Steel
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Brand Name :
Popula
Inletdiameter :
200 - 1200 mm
Description

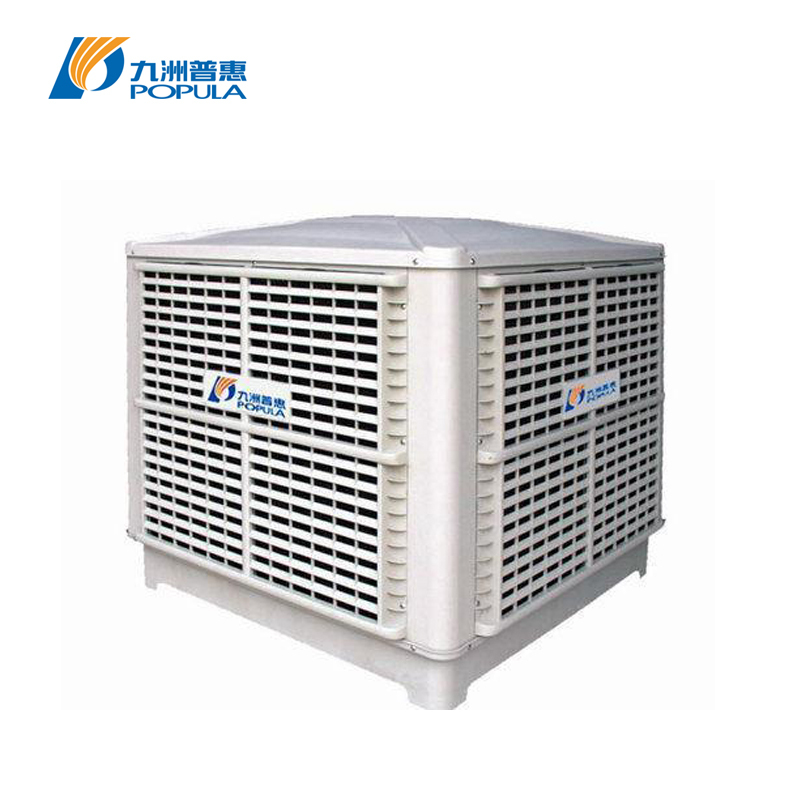

LX/LC/LS-23 Series External Rotor Centrifugal Evaporative Air Cooler

The LX/LC/LS-23 Series External Rotor Centrifugal Evaporative Air Cooler includes six full models with a fixed maximum airflow of 23000 m³/h, categorized by three air outlet directions (downward LX / side LC / top LS) and two control types (A-class single-speed mechanical / stepless variable frequency control box). It adopts a thickened integrated engineering plastic cabinet, external rotor double-inlet centrifugal fan, built-in 60L large water tank, wall-mounted design, suitable for medium-large factories, supermarkets, schools and agricultural greenhouses covering 120–180 ㎡.

Core Product Features

Material & Structural Properties

· Thickened anti-impact engineering plastic integrated cabinet, wall-mounted hoisting design. Three air outlet layouts to match different on-site wall and pipeline conditions: downward air outlet (LX, recommended priority if installation space permits), side air outlet (LC), top air outlet (LS). Dust filter net is not equipped as standard.

· Two independent control schemes for all models:

A-Class Single-Speed Mechanical Controller (Standard Equipped): Fixed single wind speed, supports cooling, regular cleaning, ventilation, exhaust and swing wind functions; equipped with phase loss and water shortage pump protection, matched with 380V three-phase industrial power supply.

Stepless Variable Frequency Control Box (Optional Accessory): Infinite stepless wind speed adjustment, comes with cooling and cleaning functions; full multi-protection against overcurrent, undervoltage, overload, short circuit and electric leakage, matched with 220V single-phase power supply.

· Dedicated 2.2kW F-class insulated external rotor motor with IP54 dustproof & waterproof grade, excellent high temperature & humidity resistance, high static pressure output up to 450Pa, low noise and stable 24-hour continuous industrial operation. Double-inlet centrifugal fan wheel with optimized fluid mechanics duct for smooth air flow and long-distance duct air supply up to 40m.

· Built-in 60L large anti-aging PP water tank, medium wind cooling mode supports 10–13 hours of continuous operation after full filling; reserved tap water inlet interface for automatic water replenishment modification.

· Thickened special corrugated honeycomb cooling pad made of new-generation polymer composite material, featuring ultra-high water absorption, water resistance, mildew resistance and long service life.

· Foldable closed air inlet shutter blocks dust and insects during standby, easy to disassemble for daily cleaning maintenance.

· Complete safety protection system: Water shortage auto-stop alarm, phase loss / overload / short-circuit / leakage multi-protection for both control versions.

Core Advantages

· Three Optional Air Outlet Directions: Downward / side / top air outlet to adapt different wall height, beam and overhead pipeline layout restrictions; downward air outlet achieves the most uniform space air circulation.

· Dual Control Versions Available: Cost-effective single-speed mechanical control as standard for basic industrial cooling demand; stepless variable frequency control with infinite airflow adjustment for high-precision cooling scenarios.

· High Static Pressure Centrifugal Fan: Max static pressure 450Pa, supports long-distance air duct delivery to separate workshop zones, ideal for partitioned factory layouts.

· 23000 m³/h Large Air Volume: Perfectly meets cooling requirements of 120–180 square meters medium-large workshops, supermarkets and breeding greenhouses.

· Wall-Mounted Space-Saving Structure: Hoisting installation does not occupy factory production ground space, matched detachable wall bracket as optional accessory.

· Wide Diversified Application Scenarios: Applicable for high-temperature processing factories, crowded commercial venues, agricultural greenhouses and centralized fresh air ventilation projects.

Usage Restrictions

Only applicable for indoor and shaded semi-open medium-large industrial, agricultural and commercial space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be injected into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Six complete configurable specifications:

LX-23: A-class single-speed mechanical control + downward air outlet

LX/BP-23: Stepless variable frequency control + downward air outlet

LC-23: A-class single-speed mechanical control + side air outlet

LC/BP-23: Stepless variable frequency control + side air outlet

LS-23: A-class single-speed mechanical control + top air outlet

LS-23: Stepless variable frequency control + top air outlet Standard package includes cooling pad, air-in shutter, external rotor motor and single-speed control box; wall mounting bracket and variable frequency control box are optional extra accessories, dust filter net is not standard equipped.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Capacity(L) Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
LX-23 23000 450 Centrifugal external rotor 380/50 2.2 5.7 60 1330×1100×1400 545×570 ≤83 90 120-180 1 single gear A-class mechanical control (standard)
LX/BP-23 23000 450 Centrifugal external rotor 220/50 2.2 13.0 60 1330×1100×1400 545×570 ≤83 90 120-180 Stepless infinite speed Variable frequency control (optional)
LC-23 23000 450 Centrifugal external rotor 380/50 2.2 5.7 60 1330×1120×1400 670×670 ≤83 90 120-180 1 single gear A-class mechanical control (standard)
LC/BP-23 23000 450 Centrifugal external rotor 220/50 2.2 13.0 60 1330×1120×1400 670×670 ≤83 90 120-180 Stepless infinite speed Variable frequency control (optional)
LS-23 23000 450 Centrifugal external rotor 380/50 2.2 5.7 60 1330×1100×1430 675×675 ≤83 98 120-180 1 single gear A-class mechanical control (standard)
LS/BP-23 23000 450 Centrifugal external rotor 220/50 2.2 13.0 60 1330×1100×1430 675×675 ≤83 98 120-180 Stepless infinite speed Variable frequency control (optional)

Q1: What industrial, agricultural and commercial venues is LX/LC/LS-23 external rotor centrifugal evaporative air cooler suitable for?
A1: It is widely applied in medium-large high-temperature processing factories, large supermarkets, school classrooms, internet cafes, livestock breeding farms and agricultural greenhouses, covering spaces of 120 to 180 square meters.
Q2: What is the difference between downward, side and top air outlet models? Which one is recommended?
A2: LX downward air outlet achieves the most balanced natural air circulation and is the priority recommendation if installation space permits; LC side air outlet adapts walls with horizontal beam obstacles; LS top air outlet matches low wall height or overhead dense pipeline venues. All three share identical airflow and power parameters.
Q3: What is the core difference between A-class single-speed mechanical controller and optional stepless variable frequency control box?
A3: A-class mechanical controller has only one fixed wind speed with basic phase-loss protection, adopts 380V three-phase industrial voltage and lower cost; stepless variable frequency control supports infinite adjustable wind speed, adds overload, short-circuit and leakage triple safety protection, uses universal 220V single-phase commercial voltage for precise cooling regulation.
Q4: Does this model come with dust filter net as standard?
A4: No, dust filter net is not equipped in the standard package and needs separate ordering if required.
Q5: Is this a wall-mounted type that can save factory ground production space?
A5: Yes, it adopts wall hoisting installation without occupying indoor floor space. The matching angle iron wall mounting bracket is available as an optional accessory.
Q6: Does the machine support automatic water replenishment by connecting tap water pipeline?
A6: It reserves dedicated water inlet interface, which can be fitted with a floating ball valve to realize unattended automatic water replenishment for 24-hour continuous production workshops.
Q7: Will the machine automatically stop cooling and send an alarm when the water tank runs out of water?
A7: Both control versions are equipped with water shortage detection protection system. The water pump and cooling function will shut down automatically with alarm reminder to prevent dry burning damage to the honeycomb cooling pad.
Q8: How long can the built-in 60L large water tank run continuously after full filling?
A8: Under medium wind cooling mode, fully filled tap water can support continuous cooling for about 10–13 hours without frequent manual refilling.
Q9: What material is the cooling pad made of, and how often to replace it under daily industrial operation?
A9: The cooling pad is thick honeycomb polymer composite material with super high water absorption and mildew resistance. Under long-time daily industrial continuous operation, it can work for 6–12 months before replacement.
Q10: Can we customize special voltage such as 110V/60Hz for bulk container orders? What after-sales support do you provide?
A10: Standard single-speed model is 380V/50Hz three-phase industrial voltage; variable frequency model is 220V/50Hz single-phase. We support customized motor and control box voltage for large wholesale bulk orders. We provide complete English operation manuals, full spare parts (cooling pad, control box, F-class motor, air shutter) and professional wall installation & fault troubleshooting technical guidance for all bulk customers.
