Industrial Evaporative Cooling Fan 18000m3/H Airflow 12 Speed Control With 240L Tank
Industrial Evaporative Cooling Fan 18000m3/H Airflow 12 Speed Control With 240L Tank
Specifications
Operatingtemperature :
-20°C to 80°C
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Payment Terms :
T/T
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Certification :
CE, UL, Rohs
Place of Origin :
China
Brand Name :
Popula
MOQ :
1 set
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Material :
Steel / Stainless Steel
Protectionclass :
IP54 / IP55
Supply Ability :
100000 Sets/week
Powersupply :
220V / 380V / 440V
Inletdiameter :
200 - 1200 mm
Description

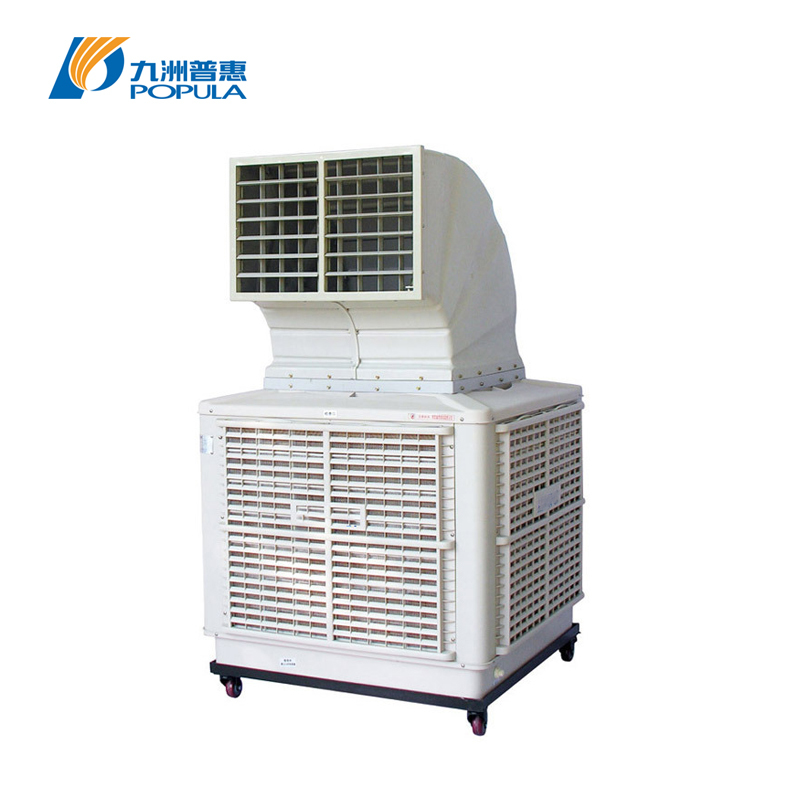

ZS Series Large Scale Movable Evaporative Air Cooler

The ZS Series Large Movable Evaporative Air Cooler covers 6 complete models: ZS-18Y1 / ZS/BP-18Y1, ZS-18Y6 / ZS/BP-18Y6, ZS-23Y6 / ZS/BP-23Y6. It adopts top air outlet design, with two airflow grades (18000 m³/h & 23000 m³/h), matched with single-speed / variable frequency dual control schemes, suitable for extra large workshops, breeding bases, greenhouses and commercial venues of 100–180 ㎡.

Core Product Features

Material & Structural Properties

· Integral thickened anti-aging PP plastic cabinet, unique upward top air outlet structure, equipped with heavy-duty welded metal movable bracket and universal brake casters for free relocation and stable load bearing.

· Two control system options for all models:

Single-speed LCD controller: Fixed single wind gear, supports cooling, timing cleaning, ventilation, exhaust & swing wind functions; built-in overload protection and pump water shortage auto-stop alarm.

Variable frequency inverter controller: 12 adjustable wind speeds, real-time temperature display, full protection against overvoltage, undervoltage, overload, phase loss and water shortage.

· Two motor power configurations: 1.1kW F-class insulated motor for 18000 m³/h models; 1.5kW F-class insulated motor for 23000 m³/h large airflow models. All motors reach IP54 dustproof & waterproof grade, high temperature & humidity resistance, low noise and stable long-time industrial operation.

· High static pressure axial-flow plastic fan wheel, optimized fluid mechanics design, smooth air duct, cool wind can deliver up to 20 meters long distance.

· Two water supply configurations: ZS-18Y1 / ZS/BP-18Y1 support external tap water direct connection; ZS-18Y6 / ZS/BP-18Y6 / ZS-23Y6 / ZS/BP-23Y6 equip built-in 240L large integrated PP water tank, medium wind continuous cooling for 8–13 hours after full filling.

· Thickened high-density special corrugated honeycomb cooling pad made of new polymer composite material, ultra-high water absorption, mildew-proof, anti-aging and long service life.

· Foldable closed air outlet shutter to block dust and insects during standby, easy disassembly for daily cleaning and maintenance.

· Full safety protection system: water shortage pump shutdown alarm, overload, overvoltage, undervoltage and phase loss automatic power-off protection for both control versions.

Core Advantages

· Top Air Outlet Special Design: Upward air outlet structure, high air supply position, perfectly match high-ceiling workshops, agricultural greenhouses and livestock breeding farms with high space height demand.

· Two Airflow Specifications for Different Space: 18000 m³/h for venues of 100–150 ㎡; upgraded 23000 m³/h larger airflow with higher static pressure for ultra-large workshops of 100–180 ㎡.

· Dual Water Supply Modes Optional: Y1 series reserve tap water interface for unattended automatic water replenishment; Y6 series built-in 240L super large water tank to reduce frequent manual refilling workload.

· Single-Speed & Variable Frequency Two Control Versions: Cost-effective single-speed LCD control for basic industrial cooling demand; 12-speed inverter control with temperature display for high-precision adjustable cooling scenarios.

· Heavy-Duty Mobile Bracket: Welded angle iron support frame with strong load capacity, convenient to push and lock at any cooling position.

· Wide Industrial & Agricultural Application Coverage: Applicable for injection molding plants, rubber factories, garment workshops, food processing factories, large shopping malls, exhibition halls, livestock breeding farms and agricultural greenhouses covering 100–180 square meters.

Usage Restrictions

Only applicable for indoor and shaded semi-open large industrial, agricultural and commercial space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be added to the tank; corrosive, oily and chemical liquids are prohibited.

Model Selection

Six configurable full specifications:

ZS-18Y1: Single-speed LCD control + 18000 m³/h + tap water connection type

ZS/BP-18Y1: 12-speed inverter control + 18000 m³/h + tap water connection type

ZS-18Y6: Single-speed LCD control + 18000 m³/h + built-in 240L water tank

ZS/BP-18Y6: 12-speed inverter control + 18000 m³/h + built-in 240L water tank

ZS-23Y6: Single-speed LCD control + 23000 m³/h + built-in 240L water tank

ZS/BP-23Y6: 12-speed inverter control + 23000 m³/h + built-in 240L water tank Each full set includes metal mobile bracket, brake casters, thickened honeycomb cooling pad, dustproof air outlet shutter and power cord.

Model No. Max Airflow(m³/h) Max Static Pressure(Pa) Fan Type Voltage/Frequency Power(kW) Working Current(A) Water Tank Supply Mode Overall Size(LWH,mm) Air Outlet Size(mm) Noise(dB) Net Weight(kg) Applicable Area(㎡) Wind Speed Gears Control Mode
ZS-18Y1 18000 180 Axial-flow 380/50 1.1 2.8 Tap water connected 1100×1100×1810 620×418 ≤71 88 100-150 1 single gear Single-speed LCD electronic control
ZS/BP-18Y1 18000 180 Axial-flow 220/50 1.1 7.5 Tap water connected 1100×1100×1810 620×418 ≤71 88 100-150 12 adjustable speeds Variable frequency inverter LCD control
ZS-18Y6 18000 180 Axial-flow 380/50 1.1 2.8 Built-in 240L tank 1100×1100×2000 620×418 ≤71 85 100-150 1 single gear Single-speed LCD electronic control
ZS/BP-18Y6 18000 180 Axial-flow 220/50 1.1 7.5 Built-in 240L tank 1100×1100×2000 620×418 ≤71 85 100-150 12 adjustable speeds Variable frequency inverter LCD control
ZS-23Y6 23000 210 Axial-flow 380/50 1.5 3.7 Built-in 240L tank 1100×1100×2000 620×418 ≤73 100 100-180 1 single gear Single-speed LCD electronic control
ZS/BP-23Y6 23000 210 Axial-flow 220/50 1.5 9.5 Built-in 240L tank 1100×1100×2000 620×418 ≤73 100 100-180 12 adjustable speeds Variable frequency inverter LCD control

Q1: What industrial, agricultural and commercial scenarios is ZS series top-outlet evaporative air cooler suitable for?
A1: It is widely applied in high-ceiling machinery workshops, livestock breeding farms, agricultural greenhouses, large shopping malls, exhibition halls and semi-open venues, covering spaces of 100 to 180 square meters.
Q2: What is the core advantage of top air outlet design compared with side air outlet coolers?
A2: The upward top air outlet raises the air supply height, cool wind can quickly cover high-altitude space, perfectly solve the cooling difficulty of tall workshops and greenhouses with high ceiling height.
Q3: What is the difference between Y1 tap water connection model and Y6 built-in water tank model?
A3: Y1 series reserve special water inlet interface, which can be directly connected to tap water pipeline to realize automatic water replenishment for unattended workshops; Y6 series integrate a 240L large water tank inside the machine, no external water pipe required, convenient for mobile use in venues without fixed water supply.
Q4: What is the difference between 18000 m³/h and 23000 m³/h models?
A4: The 23000 m³/h model matches a 1.5kW high-power motor with higher static pressure, larger air volume and longer air supply distance, suitable for ultra-large-span workshops over 150 square meters; the 18000 m³/h model with 1.1kW motor meets the cooling demand of 100–150 ㎡ conventional large venues.
Q5: What is the difference between single-speed model and BP variable frequency inverter model?
A5: Single-speed version only has one fixed wind speed with basic cooling and timing functions, low cost and simple operation; BP inverter version supports 12 adjustable wind speeds with real-time temperature display, can precisely adjust cooling intensity according to site temperature, more energy-saving for long-term operation. In addition, single-speed adopts 380V industrial voltage, inverter uses universal 220V commercial voltage.
Q6: How far can the cool wind of this top-outlet industrial cooler be delivered?
A6: Optimized high static pressure fan wheel and top air outlet duct design, the straight air blowing distance can reach more than 20 meters, evenly covering long production lines of large factories.
Q7: Does the machine have automatic protection function when the water tank lacks water?
A7: Both single-speed and inverter versions are equipped with water shortage sensor protection system. The water pump and cooling function will automatically stop and send alarm reminder to avoid dry burning damage to the honeycomb cooling pad.
Q8: How many hours can the built-in 240L water tank run continuously after full filling?
A8: Under medium wind cooling mode, fully filled 240L tap water can support continuous cooling for about 8–13 hours without repeated water adding.
Q9: Can we customize special voltage such as 110V/60Hz for bulk container orders?
A9: Standard single-speed model is 380V/50Hz, inverter model is 220V/50Hz for mainstream markets. We support customized motor and control board voltage for large wholesale bulk orders.
Q10: What complete after-sales spare parts and technical guidance can you provide for bulk purchase?
A10: Each unit is equipped with full English operation manual. We supply complete spare parts including cooling pad, LCD control board, F-class drive motor and dustproof air shutter, and provide professional installation & fault troubleshooting technical support for wholesale customers.
