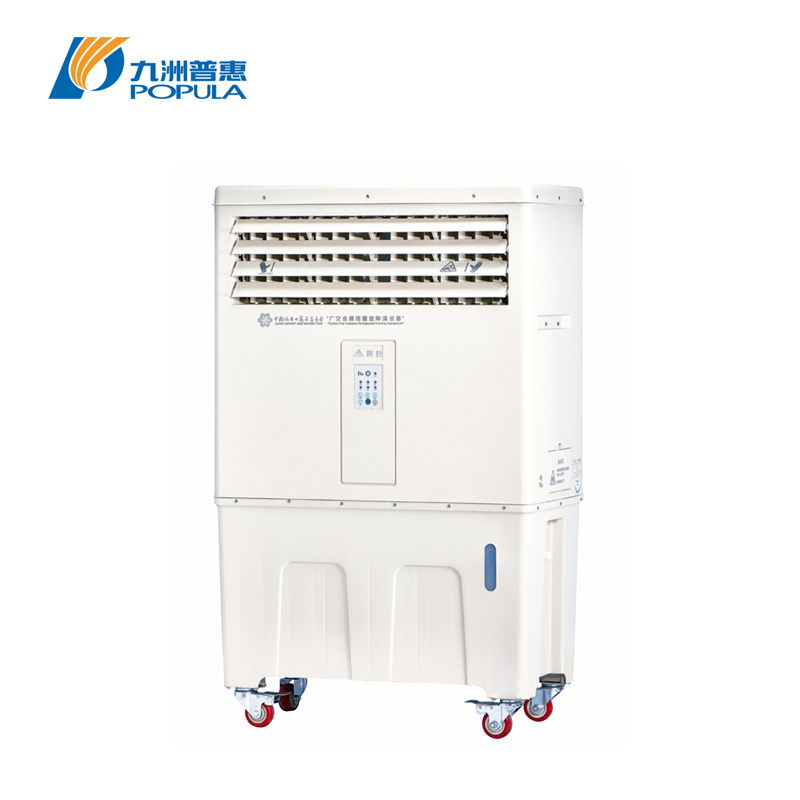

LC-80 Series Movable Evaporative Air Cooler

The LC-80 Series Movable Evaporative Air Cooler includes two touch-control models: LC-80Y (38L standard plastic water tank) and LC-80Y3 (120L large plastic water tank). It adopts centrifugal volute fan structure with max airflow up to 8000 m³/h, delivering long-distance powerful cool air supply, perfect for factory workshops, exhibition halls, supermarkets and large commercial spaces covering 30–60 ㎡.

Core Product Features

Material & Structural Properties

· Integrated thickened plastic cabinet with white streamline appearance, equipped with heavy-duty universal brake casters for free moving and fixed placement.

· Full DSP electronic touch control as standard, supporting 3 wind speed gears, cooling & swing wind functions, with clear indicator light prompts for each operation.

· Exclusive centrifugal volute fan & double plastic centrifugal wind wheel design: stable high air pressure, long-distance air delivery, low vibration and low running noise.

· Built-in Class B insulated dedicated motor with IP54 protection grade, resistant to high temperature and high humidity, high efficiency and stable startup performance.

· Full-range adjustable air outlet: left & right 120° automatic horizontal swing, up & down 160° manual vertical adjustment, all-direction uniform cool wind coverage.

· Two optional water tank configurations: 38L compact tank for daily short-time use; 120L extra large tank supporting 8–13 hours continuous cooling without frequent refilling water.

· High-density honeycomb cooling pad made of new polymer composite material, strong water absorption, mildew-proof, anti-aging and long service life.

· Detachable front air-in shutter with dust & insect prevention structure, easy to disassemble and clean for daily maintenance.

· Automatic water shortage protection & alarm system; cooling function will stop automatically to avoid dry burning damage to cooling pad when water runs out.

Core Advantages

· Long-Distance Powerful Cooling: Centrifugal volute fan structure generates stronger air pressure, cool wind can be sent far away to cover large space evenly, better than ordinary axial-flow coolers.

· Two Tank Capacity Matching Different Demands: 38L small tank with compact body for easy transfer; 120L super large tank reduces water refilling frequency for all-day continuous operation.

· Intelligent DSP Touch Control: Simple one-touch operation with clear indicator lights, independent control for cooling, swing wind and three wind speed gears.

· Low Vibration & Quiet Operation: Balanced centrifugal wind wheel and optimized volute air duct design effectively cut running noise ≤64dB, no harsh disturbance to working environment.

· Wide Application Coverage: Suitable for factory workshops, exhibition centers, shopping malls, office buildings, hotel lobbies, gyms, restaurants and semi-open large venues within 30–60 square meters.

· Energy Saving Low Power Consumption: Rated power only 450W, much lower operation cost than traditional air conditioners.

Usage Restrictions

Only applicable for indoor and shaded semi-open large space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be added into the water tank; corrosive, oily and chemical liquids are prohibited. Applicable ambient temperature range: 10℃ ~ 43℃.

Model Selection

Two complete touch-control specifications:

LC-80Y: Full electronic touch control + 38L standard plastic water tank

LC-80Y3: Full electronic touch control + 120L large plastic water tank Each full set includes brake casters, honeycomb cooling pad, air-in shutter and power cord.
