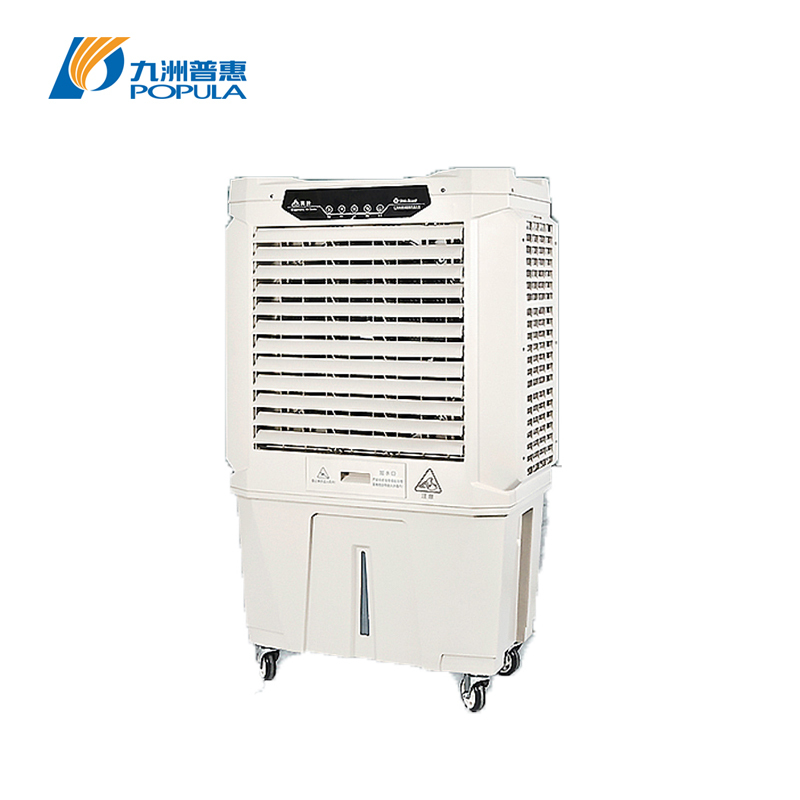

ZC-13Y Series Movable Evaporative Air Cooler

The ZC-13Y Series Movable Evaporative Air Cooler contains two models: ZC-13Y2 (Full Electronic Touch Control, standard) and ZC-13Y-A (Mechanical Knob Control, optional). It adopts large axial-flow fan wheel with max airflow up to 13000 m³/h and 145L large-capacity water tank, designed for large workshops, exhibition halls, supermarkets and commercial venues covering 50–80㎡. It supports three color options: white, dark gray and black.

Core Product Features

Material & Structural Properties

· Integrated thickened plastic cabinet with stylish star matte dark gray/white/black appearance, equipped with four heavy-duty brake rolling casters for free moving and fixed positioning.

· Two independent control schemes: ZC-13Y2 touch panel with 6 wind speed gears + long press power switch, built-in cooling, swing wind and water shortage auto-stop alarm function; ZC-13Y-A mechanical knob with simple 3-speed adjustment.

· Built-in Class B insulated dedicated motor with IP54 dustproof & waterproof protection grade, resistant to high temperature and humidity, low noise and stable startup performance.

· Full-range adjustable air outlet: left & right automatic 120° horizontal swing, up & down 160° manual vertical split adjustment, realizing omni-directional wide-area cool air supply.

· 145L large drawer-type plastic water tank, convenient water filling, can continuously run 6–12 hours under medium wind cooling mode without frequent refilling.

· High-density honeycomb cooling pad made of new polymer composite material, featuring strong water absorption, mildew resistance, anti-aging and long service life.

· Detachable front air-in louver with dust & insect prevention design, easy to disassemble and clean for daily maintenance.

· Intelligent water shortage protection system: the unit automatically stops cooling and triggers alarm reminder once the tank runs out of water to avoid dry burning damage to cooling pad.

Core Advantages

· Super Large Air Volume & Powerful Cooling: Max airflow reaches 13000 m³/h, suitable for 50–80 square meters large industrial and commercial spaces, fast overall space cooling.

· Diversified Color Matching: Three mainstream shell colors (white, black, matte dark gray) to meet different store, factory and decoration style demands.

· Two Control Versions for Market Differentiation: Intelligent 6-speed touch control with complete function display for high-end wholesale; cost-effective 3-speed mechanical knob version for budget market.

· Large Drawer Water Tank Design: Pull-out water tank structure for convenient water injection and internal cleaning, 145L capacity greatly reduce refilling frequency.

· Energy Saving & Low Noise Operation: Rated power only 600W, much lower energy consumption than air conditioners, running noise ≤72dB, stable and quiet for long-time factory operation.

· Wide Application Coverage: Widely applicable for factory workshops, exhibition halls, shopping malls, office conference rooms, hotel lobbies, gyms, restaurants and semi-open large venues of 50–80 square meters.

Usage Restrictions

Only suitable for indoor and shaded semi-open large space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be added into the water tank; corrosive, oily and chemical liquids are prohibited. Applicable ambient temperature range: 10℃ ~ 43℃.

Model Selection

Two complete specifications available:

ZC-13Y2: 6-speed full electronic touch control + 145L drawer plastic water tank

ZC-13Y-A: 3-speed mechanical knob control + 145L drawer plastic water tank Each full set includes brake casters, honeycomb cooling pad, dustproof air-in shutter and power cord.
