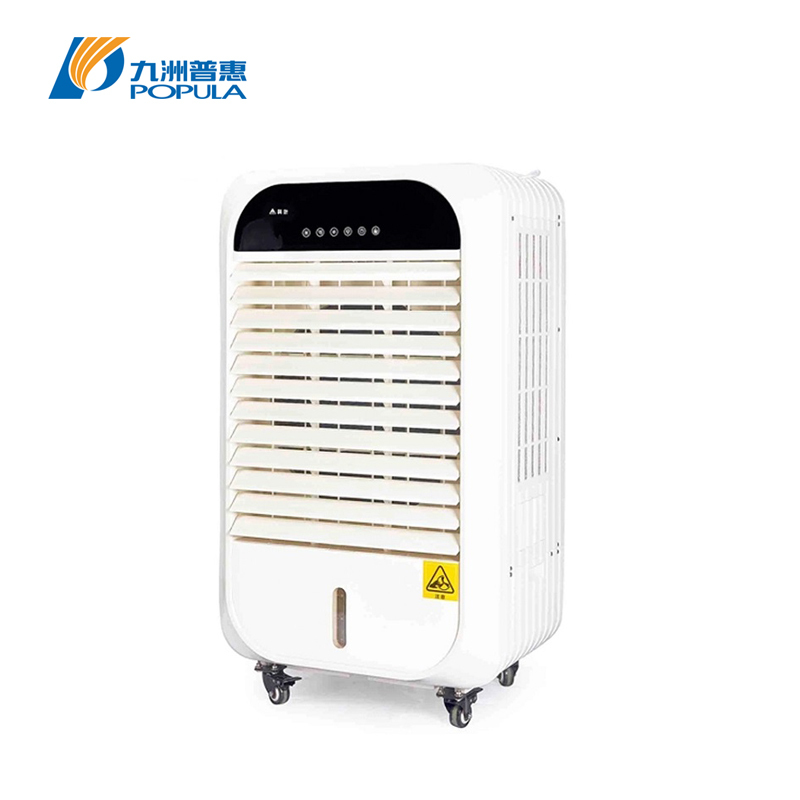

ZC-36 Series Business & Household Evaporative Air Cooler

The ZC-36 Series Evaporative Air Cooler contains two models: ZC-36Y2 (Full Electronic Touch Control, standard version) and ZC-36Y-A (Mechanical Knob Control, optional version). Equipped with axial-flow fan wheel, 41L large water tank and high-density honeycomb cooling pad, it delivers energy-saving natural evaporative cooling for homes, offices, beauty salons and small commercial venues.

Core Product Features

Material & Structural Properties

· Integrated vertical white plastic cabinet with smooth streamline appearance, fitted with 4 universal rolling casters for free movement between rooms.

· Two independent control schemes: ZC-36Y2 adopts touch button panel with 6 wind speeds and 8-hour timing auto-off function; ZC-36Y-A uses mechanical knob with simple 3-speed adjustment.

· Built-in Class B insulated dedicated motor, IP54 protection grade, resistant to high temperature and humidity, low noise and stable startup performance.

· Adjustable upper and lower air outlet shutters, can be fully closed when standby to block dust and insects, protecting internal fan and cooling pad.

· Extra large 41L transparent water tank; the unit will automatically stop cooling and trigger alarm once water runs out to prevent dry damage to cooling pad.

· High-performance honeycomb cooling pad made of new polymer composite material, featuring strong water absorption, mildew resistance, anti-aging and long service life.

· Detachable front air-in louver filter screen to intercept large dust particles, easy to disassemble and clean regularly.

Core Advantages

· Strong Airflow & Low Noise: Max airflow reaches 3500 m³/h, optimized axial-flow fan blade design, running noise ≤61dB, soft circulating wind without harsh sound interference.

· Ultra Energy Saving: Rated power only 120W, much lower power consumption than traditional air conditioners, effectively cutting daily electricity expenses.

· Two Control Versions for Market Differentiation: Touch control model with timing and multi-speed functions for high-end household & commercial projects; mechanical knob model with simple operation for cost-sensitive wholesale markets.

· Complete Dustproof Protection System: Dual dustproof structure of front air-in louver and closed air outlet shutter, greatly extending the service life of internal core components.

· Wide Application Coverage: Suitable for living rooms, studies, beauty salons, small offices, hotel lobbies, chess rooms, gyms and villas with an area of 10–30 square meters.

·

Usage Restrictions

Only suitable for indoor ventilation and cooling; avoid long-term direct sunlight exposure. Only clean tap water can be added into the water tank; corrosive or oily liquids are prohibited. Applicable ambient temperature range: 10℃ ~ 43℃.

Model Selection

Two complete specifications available: ZC-36Y2 (6-speed touch control with timing) and ZC-36Y-A (3-speed mechanical control). Each full set includes casters, cooling pad, filter louver and power cord.
