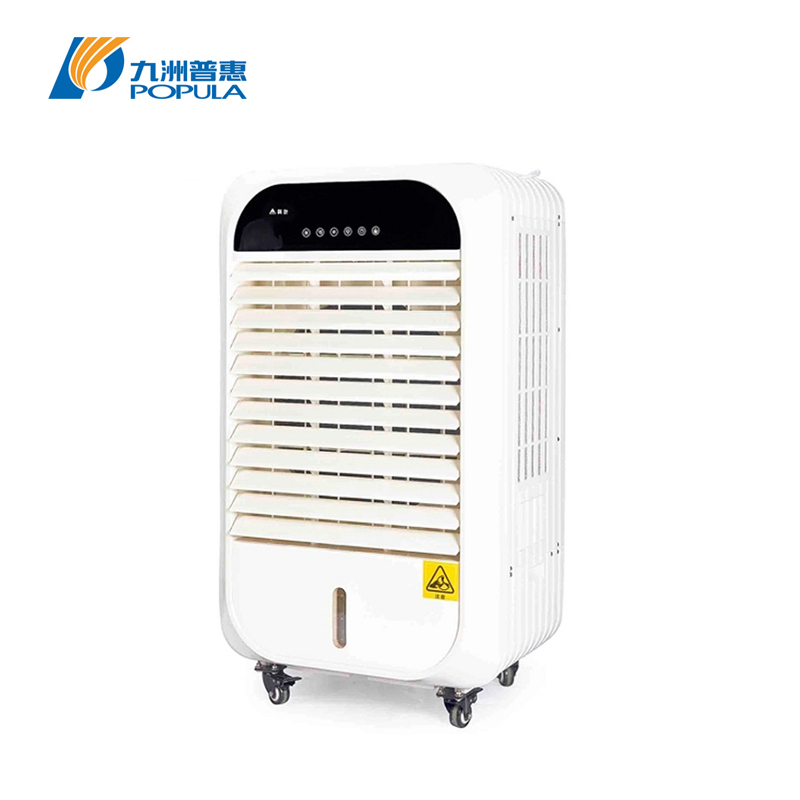

ZC Series Business & Household Evaporative Air Cooler

The ZC Series Evaporative Air Cooler includes two models: ZC-35Y2 (Full Electronic Touch Control, standard) and ZC-35Y-A (Mechanical Knob Control, optional). It adopts axial-flow fan wheel, large 25L water tank and high-efficiency honeycomb cooling pad, designed for household, office, salon, small commercial spaces to deliver energy-saving natural cooling wind.

Core Product Features

Material & Structural Properties

· Integrated vertical cabinet plastic shell, available in white and black two color options, equipped with universal rolling casters for free room-to-room movement.

· Two control versions optional: ZC-35Y2 with touch panel, 6 wind speed gears + 8-hour timing shutdown function; ZC-35Y-A with mechanical knob, simple 3-speed adjustment.

· Built-in B-class insulated dedicated motor with IP54 protection grade, high temperature & humidity resistance, low noise and stable startup performance.

· Adjustable louver air outlet, can be fully closed when standby to block dust, bugs and foreign matter, protect internal cooling pad and fan wheel.

· Large-capacity 25L transparent water tank; the unit will automatically stop cooling mode and trigger alarm when water is insufficient.

· High-density honeycomb cooling pad made of new polymer composite material, with strong water absorption, mildew resistance, anti-aging and long service life.

· Front removable filter shutter to block large dust particles, easy to take out and clean regularly.

Core Advantages

· Large Air Volume & Low Noise: Max airflow up to 3500 m³/h, optimized axial-flow fan blade design, running noise ≤61dB, comfortable wind without harsh noise.

· Energy Efficient Operation: Only 120W rated power, far lower power consumption than traditional air conditioner, save daily electricity cost.

· Two Control Configurations for Market Differentiation: Touch version supports timing and multi-speed adjustment for high-end household & commercial use; mechanical knob version is cost-effective for budget markets.

· Complete Dustproof Protection: Dual dustproof design with front air-in shutter and foldable closed air outlet louver, effectively extend internal parts service life.

· Wide Application Range: Suitable for home living room, study, beauty salon, office, hotel lobby, chess room, gym, villa and other 10-30㎡ indoor spaces.

Usage Restrictions

Only for indoor ventilation and cooling, avoid long-term exposure to direct sunlight. Only clean tap water can be injected into the water tank; corrosive liquid, oily liquid are forbidden. Applicable ambient temperature range: 10℃ ~ 43℃.

Model Selection

Two complete specifications: ZC-35Y2 (6-speed touch control with timing) and ZC-35Y-A (3-speed mechanical control). All units come with casters, cooling pad, filter shutter and power cord.
