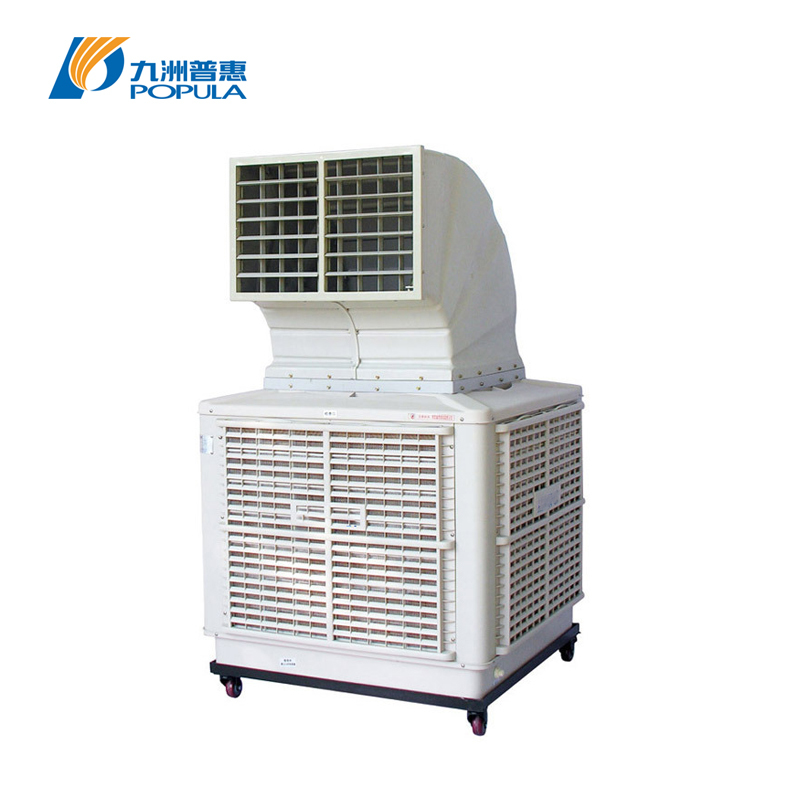

ZS/D3-18Y6 Large Movable Evaporative Air Cooler

ZS/D3-18Y6 is a large mobile evaporative air cooler with top air outlet design, three-speed mechanical control and built-in 240L large water tank. Equipped with universal moving casters for free shifting, it is widely used for temporary cooling of large workshops, supermarkets, exhibition halls and event venues covering 100–150 ㎡.

Core Product Features

Material & Structural Properties

· Integrated thickened anti-aging PP plastic mobile cabinet, built-in wear-resistant silent moving casters for 360° flexible free movement, no wall mounting required. Fixed top air outlet layout; extended air duct and double air outlet head are optional extra accessories (not standard).

· Standard three-speed mechanical control panel, supporting cooling, swing wind functions; mechanical key switch, indicator light lights up when activated, easy intuitive operation, matched with 220V single-phase commercial power supply.

· Dedicated 1.1kW F-class insulated axial-flow motor with IP54 dustproof & waterproof grade, excellent high temperature & humidity resistance, low noise and stable long-time continuous operation, max static pressure reaches 180Pa, direct air blowing distance over 20 meters.

· Optimized fluid mechanics axial-flow plastic fan wheel, smooth air duct to reduce wind resistance, large uniform cool wind coverage.

· Built-in 240L super large anti-aging PP water tank, full tank supports continuous cooling for 8–13 hours without frequent refilling; reserved tap water inlet for automatic water supply connection transformation.

· Thickened special corrugated honeycomb cooling pad made of new polymer composite material, ultra-high water absorption, mildew-proof and long service life.

· Foldable closed air inlet louver to block dust and insects during standby, easy disassembly for daily cleaning maintenance.

· Built-in dust-proof & insect-proof integrated design, convenient daily maintenance; full water shortage protection function, cooling and pump system automatically shut down with alarm when water exhausted to avoid dry burning damage to cooling pad.

Core Advantages

· Fully Mobile Design with Casters: No installation work required, can be pushed to any cooling position freely, ideal for temporary venues, exhibition halls and mobile production lines.

· 240L Ultra-Large Water Tank: Extremely long continuous working time, greatly reducing refilling frequency for all-day unattended use.

· Three Adjustable Wind Speeds: Mechanical three-speed control to freely adjust airflow volume according to actual cooling demand.

· Long-Distance Direct Air Blowing: Straight wind distance up to 20 meters, suitable for large open space centralized cooling.

· Plug-and-Play Convenience: Adopts universal 220V household single-phase power supply, directly connected to tap water pipeline for automatic water supply, ready to use without complicated construction.

· Wide Application Scenarios: Suitable for high-temperature workshops, shopping malls, school classrooms, internet cafes, temporary exhibition venues, catering halls and various heat-source sites covering 100–150 square meters.

Usage Restrictions

Only applicable for indoor and shaded semi-open space ventilation cooling; avoid long-term direct sunlight exposure. Only clean tap water can be injected into the water tank; corrosive, oily and chemical liquids are prohibited.

Model Configuration

Single complete specification: ZS/D3-18Y6 (Three-speed mechanical control + top air outlet + 240L built-in mobile water tank) Standard package includes cooling pad, dustproof air-in louver, motor and mechanical control panel; extended air duct and double air outlet head are optional non-standard accessories.
