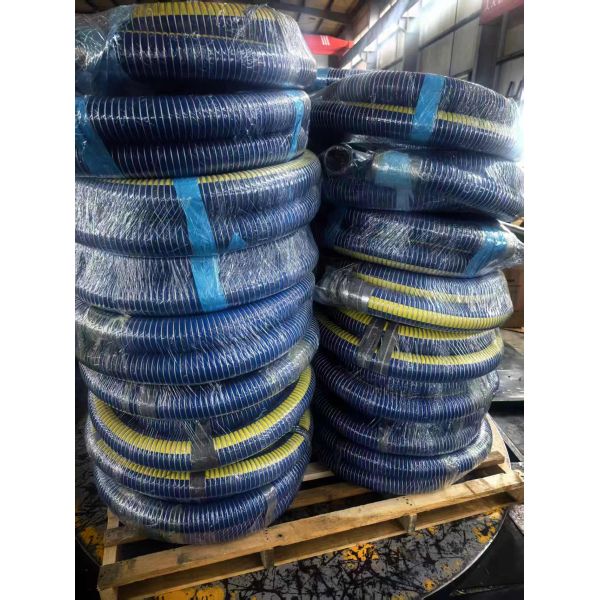

Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer
Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer
Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer
Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer
Specifications
Brand Name :
Jiubei
Model Number :
1-10inch
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T
Supply Ability :
3000m
Delivery Time :
5-8days
Packaging Details :
Wood pallet
Color :
Customized
Material :
Composite material
Length :
Customized
Connection :
Flanges, camlock and so on
Description
Multipurpose Composite Flexible Hose for Chemical Oil Industrial Fluid Transfer

Our Multipurpose Composite Flexible Hose is designed for safe and efficient transfer of a wide range of liquids, including chemicals, petroleum products, solvents, acids, and industrial fluids.
It is widely used in chemical plants, oil & gas terminals, tank trucks, marine operations, and industrial loading & unloading systems.

This composite hose is constructed with multiple layers of thermoplastic films, reinforced fabric plies, and an external wear-resistant helix, providing excellent flexibility, high strength, and long service life even under harsh working conditions.

Key Features
  • Suitable for multiple chemicals and industrial fluids
  • Excellent flexibility and bend radius, easy installation
  • Lightweight design, easier handling than rubber hoses
  • High resistance to corrosion, abrasion, and aging
  • Anti-static option available for hazardous media
  • Customizable inner liner, diameter, length, and end fittings

​

Typical Applications:
  • Chemical and petrochemical transfer
  • Oil, fuel, and lubricant loading & unloading
  • Tank truck, railcar, and ship transfer systems
  • Industrial fluid handling and process pipelines
Applications
Composite hoses provide essential flexible connections to compensate for vibration, movement, or misalignment in fluid transfer systems. Ideal for delivery and suction of fuels, oils, and lubricants on tank trucks, railcars, or fixed deposits.
All hoses can be manufactured according to customer working conditions, including temperature range, pressure requirements, and transferred media.
OEM and custom solutions are available.
Technical Parameters
I.D (MM/IN) Max. WP. (psi/Mpa) Blasting Pressure (psi/Mpa) Reference Weight (kg/m) Bending Radius (mm)
25/1 150/1.03 600/4.2 0.9 100
38/1.5 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/2.5 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 9.9 500
150/6 150/1.03 880/6.06 1.2 100
25/1 220/1.516 880/6.06 2.0 120
38/1.5 220/1.516 880/6.06 2.2 180
51/2 220/1.516 880/6.06 2.5 260
65/2.5 220/1.516 880/6.06 3.0 260
76/3 220/1.516 880/6.06 5.0 400
100/4 220/1.516 880/6.06 14 600
152/6 220/1.516 880/6.06 22 800
202/8 220/1.516 880/6.06 27 1100
252/10 220/1.516 880/6.06
