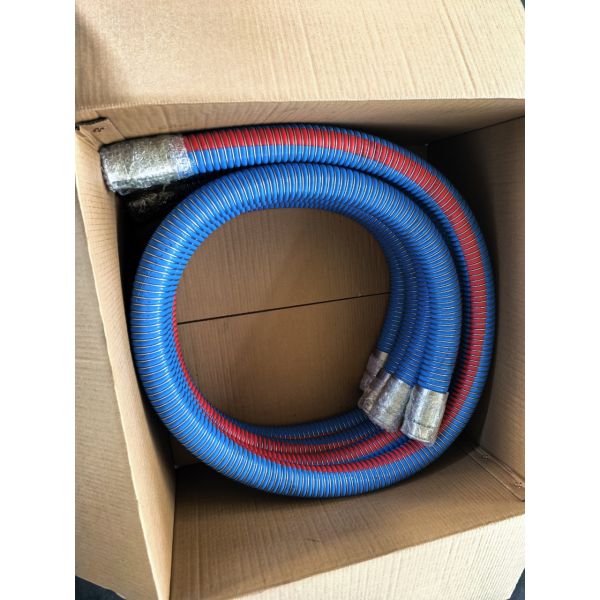

Industrial Grade Multipurpose Composite Flexible Hose High Pressure Chemical Resistant
Industrial Grade Multipurpose Composite Flexible Hose High Pressure Chemical Resistant
Industrial Grade Multipurpose Composite Flexible Hose High Pressure Chemical Resistant
Industrial Grade Multipurpose Composite Flexible Hose High Pressure Chemical Resistant
Specifications
Brand Name :
Jiubei
Model Number :
1-10inch
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T
Supply Ability :
3000m
Delivery Time :
5-8days
Packaging Details :
Wood pallet
Color :
Customized
Material :
Composite material
Length :
Customized
Connection :
Flanges, camlock and so on
Description
Industrial Grade Multipurpose Composite Flexible Hose High Pressure Chemical Resistant
Composite hose by a variety ot materials multi-layer sealing construction, in the mostsevere environmenstill has a good resistance to rupture and leakage resistance, will not suddenly burst. it can easily handlethe transfer of gasoline, diesel, crude oil and many other chemical liquids. High flexibility even in coldweather.Light weight, toughness, easy handling, soft body, flexible use, high temperature, low temperature.anti-aging, non-deformation, corrosion resistance, bare inner spiral metal wire and specialinner layer,with reliable static electricity dissipation performance,Hongtai composite hoses have been used to replace traditional rubber hoses and metal hoses in docks.tankers, petrochemical warehouses, tanker trucks, chemical plants and other fields because oftheir manyadvantages such as chemical resistance, safety, flexibility,lightness, easy handling and durability.
HOSE SIMPLE CLASSIFICATION

The composite hoses are available in sizes from 1 to 10" and working pressures from 100psi to 360psiThe use of a variety of different polymer sealing barrier materials, can be in the extreme harsh conditionsof the transport ofhighly hazardous materials.

  • MULTI-PURPOSE OILRESISTANT HOSE
  • PAINT AND COATINGHOSE
  • HOSE FOR TANKTRUCKS
  • LOADING AND UNLOADINGHOSES FOR DOCK SHIPS
  • MULTI PURPOSE CHEMICALCONVEYING PIPE
  • LOW TEMPERATURERESISTANT HOSE
  • HIGH TEMPERATURERESISTANT HOSE
  • OILFIELD FRACTURING HOSE
  • OIL AND GASRECOVERY HOSE
Technical Parameters
I.D (MM/IN) Max. WP. (psi/Mpa) Blasting Pressure (psi/Mpa) Reference Weight (kg/m) Bending Radius (mm)
25/1 150/1.03 600/4.2 0.9 100
38/1.5 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/2.5 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 9.9 500
150/6 150/1.03 880/6.06 1.2 100
25/1 220/1.516 880/6.06 2.0 120
38/1.5 220/1.516 880/6.06 2.2 180
51/2 220/1.516 880/6.06 2.5 260
65/2.5 220/1.516 880/6.06 3.0 260
76/3 220/1.516 880/6.06 5.0 400
100/4 220/1.516 880/6.06 14 600
152/6 220/1.516 880/6.06 22 800
202/8 220/1.516 880/6.06 27 1100
252/10 220/1.516 880/6.06
