OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
Specifications
Brand Name :
Jiubei
Model Number :
1-10inch
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T
Supply Ability :
3000m
Delivery Time :
5-8days
Packaging Details :
Wood pallet
Color :
Customized
Material :
Composite material
Length :
Customized
Connection :
Flanges, camlock and so on
Description

OEM Durable Fuel Resistant Oil-gas/oil Tank/tanker Unloading Chemical Multi Purpose Composite Hose


It is very Light weight, flexible, free to bend, not limited by the operating space
Good resistance to positive and negative pressure
Electrostatic discharge function
It can bear high pressure, wear-resist
High temperature resistance
It have good oil resistance and chemical corrosion resistance
Use affinity is strong, feel good, do not stick, colorful


OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance

Composite Hose structure :

The tube body is composed of multiple layers of functional polymer film and synthetic fiber fabric reinforcement layer, and the inner and outer spiral metal wire is wound solid.


Inner siral wire:

Usually stainless steel, galvanized steel, aluminum , polypropylene or TEFLON covered wire.


Outer spiral steel wire:


Basically choose stainless steel or galvanized steel wire. Tefilon polietlene Nylon


Inner lining layer:


According to the characteristics of the material conveyed to choose Tefilon Polietilene Nylon PET and other functional film, through proprietary technology compound to make the hose has a wide range of liquid resistant stealing performance.


Reinforcement layer and anti-aging outer layer:

Reinforcement layer for the hose to provide pressure strength. the outer layer of the hose is made of anti -aging colored outer layer.


OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance


Applicatiion:

Composite hose, like other hose, provides the vital flexible connection to compensate for vibration, movement, or misalignment in a fluid transfer system.
It can be used for delivery and/or suction of fuels, oils and lubricants on tank
trucks, railcars or fixed deposits.

OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance


Composite Hose parameters:


I.D (MM/IN) Max. WP. (psi/Mpa) Blasting pressure(psi/Mpa) Reference weight(kg/m) Bending radius(mm)
25/1 150/1.03 600/4.2 0.9 100
38/1.5 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/2.5 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 9.9 500
150/6 150/1.03 880/6.06 1.2 100
25/1 220/1.516 880/6.06 2.0 120
38/1.5 220/1.516 880/6.06 2.2 180
51/2 220/1.516 880/6.06 2.5 260
65/2.5 220/1.516 880/6.06 3.0 260
76/3 220/1.516 880/6.06 5.0 400
100/4 220/1.516 880/6.06 14 600
152/6 220/1.516 880/6.06 22 800
202/8 220/1.516 880/6.06 27 1100
252/10 220/1.516 880/6.06

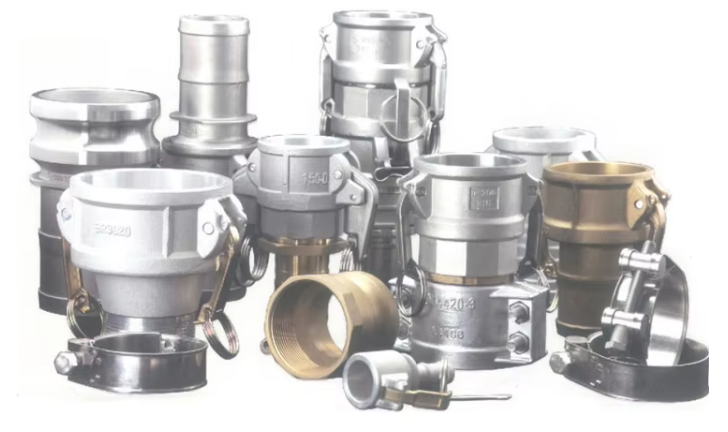

Multi type connection methods:

OEM Durable Electrostatic Discharge Multipurpose Composite Flexible Hose Fuel Resistant High Temperature Resistance
