High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer
High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer
High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer
High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer
Specifications
Brand Name :
Jiubei
Model Number :
1-10inch
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T
Supply Ability :
3000m
Delivery Time :
5-8days
Packaging Details :
Wood pallet
Color :
Customized
Material :
Composite material
Length :
Customized
Connection :
Flanges, camlock and so on
Description
High-Performance Multipurpose Composite Flexible Hose Compliant for Chemical & Oil Transfer

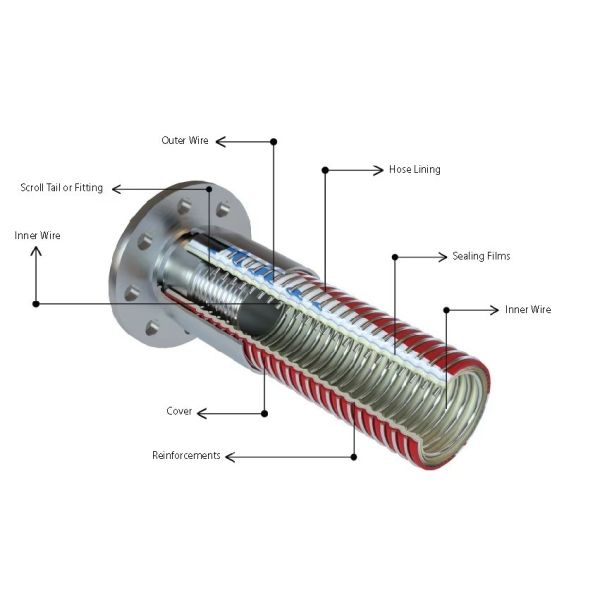

Our Multipurpose Composite Flexible Hose is engineered for the demanding transfer of a wide range of hazardous liquids, including chemicals, solvents, and petroleum products. Constructed with multiple layers of high-quality thermoplastic fabrics and films, reinforced by internal and external wire spirals, it offers unparalleled flexibility and structural integrity.
Key Features
  • Superior Versatility: Suitable for suction and discharge in road/rail tankers, storage tanks, and in-plant applications.
  • Enhanced Safety: Compliant with EN 13765:2018 standards, ensuring safe handling of corrosive and flammable fluids.
  • Lightweight & Flexible: Easy to handle even in cold weather or tight spaces compared to heavy rubber hoses.
  • Exceptional Durability: Multi-layer construction provides a 4:1 safety factor, with excellent resistance to UV, ozone, and mechanical stress.

High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer

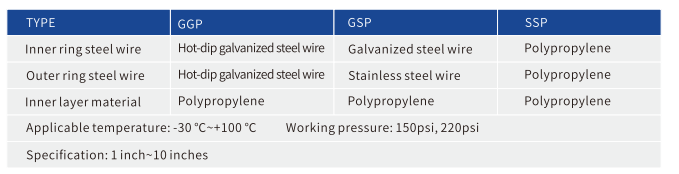

Technical Specifications:
  • Inner Wire: Galvanized Steel / Stainless Steel 316 / Polypropylene Coated.
  • Temperature Range: -30°C to +100°C (depending on conveyed medium).
  • Working Pressure: Up to 14 Bar (200 PSI).
High Performance Multipurpose Composite Flexible Hose Compliant For Chemical Oil Transfer
Technical Parameters
I.D (MM/IN) Max. WP. (psi/Mpa) Blasting Pressure (psi/Mpa) Reference Weight (kg/m) Bending Radius (mm)
25/1 150/1.03 600/4.2 0.9 100
38/1.5 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/2.5 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 9.9 500
150/6 150/1.03 880/6.06 1.2 100
25/1 220/1.516 880/6.06 2.0 120
38/1.5 220/1.516 880/6.06 2.2 180
51/2 220/1.516 880/6.06 2.5 260
65/2.5 220/1.516 880/6.06 3.0 260
76/3 220/1.516 880/6.06 5.0 400
100/4 220/1.516 880/6.06 14 600
152/6 220/1.516 880/6.06 22 800
202/8 220/1.516 880/6.06 27 1100
252/10 220/1.516 880/6.06
