Engineered Composite Hose Solution For Multiple Media Handling
Engineered Composite Hose Solution For Multiple Media Handling
Engineered Composite Hose Solution For Multiple Media Handling
Engineered Composite Hose Solution For Multiple Media Handling
Specifications
Brand Name :
Jiubei
Model Number :
1-10inch
Place of Origin :
China
MOQ :
1
Price :
10
Payment Terms :
T/T
Supply Ability :
3000m
Delivery Time :
5-8days
Packaging Details :
Wood pallet
Color :
Customized
Material :
Composite material
Length :
Customized
Connection :
Flanges, camlock and so on
Description
Engineered Composite Hose Solution for Multiple Media Handling

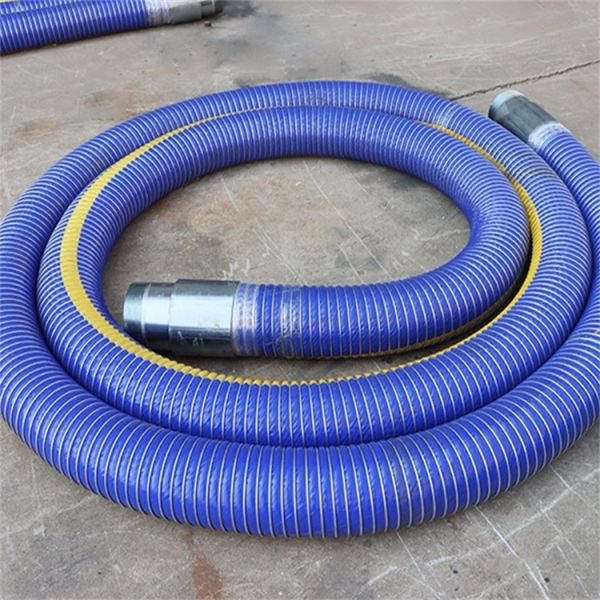

The Multipurpose Composite Flexible Hose is an advanced industrial hose solution designed to handle a broad range of liquid media under complex operating conditions.
It is constructed from multiple layers of thermoplastic films combined with high-strength reinforcement and an external protective cover, offering an optimal balance between flexibility, safety, and durability.
What This Composite Hose Is Designed to Do
  • Prevent chemical corrosion and internal hose degradation
  • Reduce operator fatigue through lightweight construction
  • Improve safety during loading and unloading processes
  • Adapt to frequent hose movement and bending
  • Support both pressure and vacuum transfer requirements

​

Structural Design & Performance Advantages
Multi-Layer Composite Construction
  • Excellent resistance to aggressive chemicals
  • High mechanical strength under dynamic conditions
  • Improved flexibility compared to metal hoses
Typical Industrial Applications

Chemical Processing Plants
Transfer of acids, alkalis, and chemical intermediates.

Petroleum & Energy Sector
Loading and unloading of diesel, gasoline, fuel oil, and lubricants.

Marine & Offshore Operations
Ship-to-ship and terminal transfer of liquid cargo.

Tank Truck & Railcar Systems
Flexible connections for mobile liquid transportation.

Industrial Storage Facilities
Linking tanks, pumps, and pipelines during liquid handling.

Why Industrial Buyers Choose Our Composite Hoses
  • Direct manufacturer with stable export experience
  • Consistent quality control throughout production
  • Flexible MOQ and OEM/private labeling support
  • Competitive pricing for distributors and project orders
  • Technical consultation before and after sales

We focus on delivering application-oriented composite hose solutions, not just standard products.

Technical Parameters
I.D (MM/IN) Max. WP. (psi/Mpa) Blasting Pressure (psi/Mpa) Reference Weight (kg/m) Bending Radius (mm)
25/1 150/1.03 600/4.2 0.9 100
38/1.5 150/1.03 600/4.2 1.5 110
51/2 150/1.03 600/4.2 1.8 125
65/2.5 150/1.03 600/4.2 2.5 150
76/3 150/1.03 600/4.2 2.3 200
100/4 150/1.03 600/4.2 9.9 500
150/6 150/1.03 880/6.06 1.2 100
25/1 220/1.516 880/6.06 2.0 120
38/1.5 220/1.516 880/6.06 2.2 180
51/2 220/1.516 880/6.06 2.5 260
65/2.5 220/1.516 880/6.06 3.0 260
76/3 220/1.516 880/6.06 5.0 400
100/4 220/1.516 880/6.06 14 600
152/6 220/1.516 880/6.06 22 800
202/8 220/1.516 880/6.06 27 1100
252/10 220/1.516 880/6.06
