380V All In Capsule Filling Machine Small Scale Powder Filler Capsule Nutraceutical GMP
380V All In Capsule Filling Machine Small Scale Powder Filler Capsule Nutraceutical GMP
Specifications
Packaging Details :
Fumigation-free plywood export packaging
Features :
NJP-200 Automatic Powder Filler
Model Number :
NJP-200
Brand Name :
TIWIN INDUSTRY
Place of Origin :
Shanghai,China
Suitable for material :
Powder / granule
MOQ :
1 Set
Customization options :
Available based on product and packaging requirements
Certification :
CE
Delivery Time :
20 business days
After sale service :
24 hours 7 days online support
Supply Ability :
5 Sets per Month
Payment Terms :
T/T
Material :
SUS304 stainless steel
Power supply :
220V/380V 50Hz/60Hz
Suitable for capsule size :
#000 to #5 capsules
Capacity :
200 pcs per minute
Description

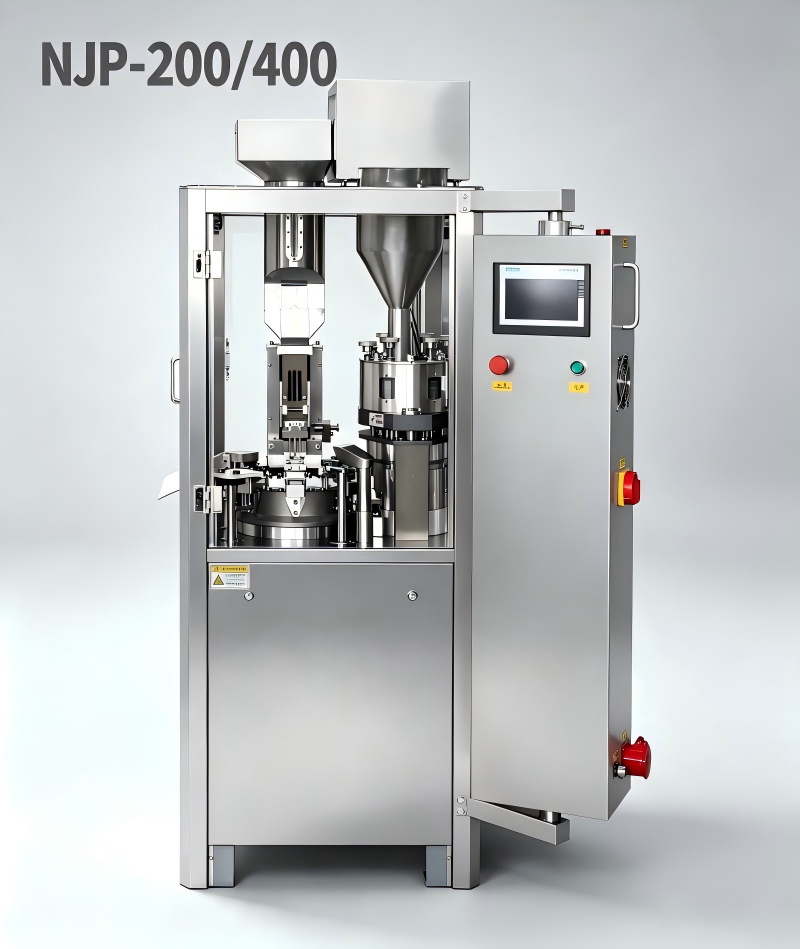

Small Scale Capsule Filling Machine NJP-200 Automatic Powder Filler for Pharmaceutical Nutraceutical GMP Production

Compact Automatic Capsule Filling for Small Batch and Laboratory Production

The NJP-200 Small Scale Capsule Filling Machine is purpose-built for low-to-medium volume capsule production in pharmaceutical R&D labs, nutraceutical startups, university research facilities, and pilot-scale manufacturing. The machine automatically completes capsule orientation, separation, powder dosing, capsule locking, rejection, and output in one seamless continuous process.

Engineered according to GMP standards with a compact footprint, the NJP-200 delivers high filling precision, stable operation, and tool-free maintenance. Its small scale design makes it the ideal entry-level solution for businesses transitioning from manual to automated capsule production.

Fully compatible with powders, granules, and blended formulations across capsule sizes #000 to #5, this small scale capsule filling machine offers maximum flexibility without the large footprint or high cost of full-scale industrial equipment.

Technical Specifications
Model NJP-200
Filling Type Powder
Number of segment bores 2
Capsule Size Suitable for filling capsule size 00#--5# / safety capsule size: A-E
Max Output 200 pcs/minute
Voltage 380V/3P 50Hz *can be customized
Noise Index <75 dba
Filling accuracy ±1%-2%
Overall Size 750*680*1700mm
Weight 700 kg
Key Features
  • Small Scale Optimized Design: Compact footprint engineered specifically for R&D labs, startup manufacturers, and pilot production lines where space and budget are limited without sacrificing automation quality.
  • Precision Powder Dosing System: Advanced screw-type dosing technology achieves ±1%-2% filling accuracy, ensuring consistent capsule weight and minimizing costly material waste in small batch runs.
  • Fully Automatic Capsule Handling: The machine automatically performs capsule feeding, orientation, separation, filling, locking, and discharge—reducing manual labor and improving batch-to-batch consistency.
  • Intelligent PLC Touchscreen Control: User-friendly HMI interface with PLC control enables quick parameter setup, recipe storage, and real-time production monitoring for simplified small batch operation.
  • GMP-Compliant Stainless Steel Construction: All product contact parts manufactured from SUS304 stainless steel with hygienic design for easy cleaning and full pharmaceutical regulatory compliance.
  • Quick Changeover & Tool-Free Maintenance: Modular design with quick-disassembly structure allows fast capsule size changeover and cleaning in under 15 minutes, minimizing downtime between batches.
  • Wide Capsule Size Compatibility: Handles capsule sizes from #000 to #5 including safety capsules A-E, providing maximum formulation flexibility for diverse product development needs.
Why Choose the NJP-200 Small Scale Capsule Filler?
✓ Ideal entry-level machine for small batch and lab-scale capsule production
✓ High filling precision with ±1%-2% accuracy
✓ Compact footprint fits standard laboratory and small workshop spaces
✓ Intuitive touchscreen operation with minimal training required
✓ GMP-compliant SUS304 stainless steel contact parts
✓ Lower capital investment with fast ROI for startup manufacturers
Looking for a compact, reliable small scale capsule filling solution? Contact us for detailed specifications, customization options, and a competitive quotation.
