SUS316 Capsule Filling Machine 99 Accuracy PLC Vitamin Capsule Maker
SUS316 Capsule Filling Machine 99 Accuracy PLC Vitamin Capsule Maker
Specifications
Certification :
CE
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Brand Name :
TIWIN INDUSTRY
Place of Origin :
Shanghai,China
Model Number :
NJP-1200
Highlight :
Easy change the capsule mold
Dosing method :
By auger
Userinterface :
Touchscreen HMI
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Features :
NJP-1200 Automatic Capsule Filling Machine
Payment Terms :
T/T
Certificate :
CE
Material :
SUS316 stainless steel for material contact area
Packaging Details :
Fumigation-free plywood
Touchscreen system :
German-brand PLC system
Industry :
Pharmaceutical,food,nutrition
Description

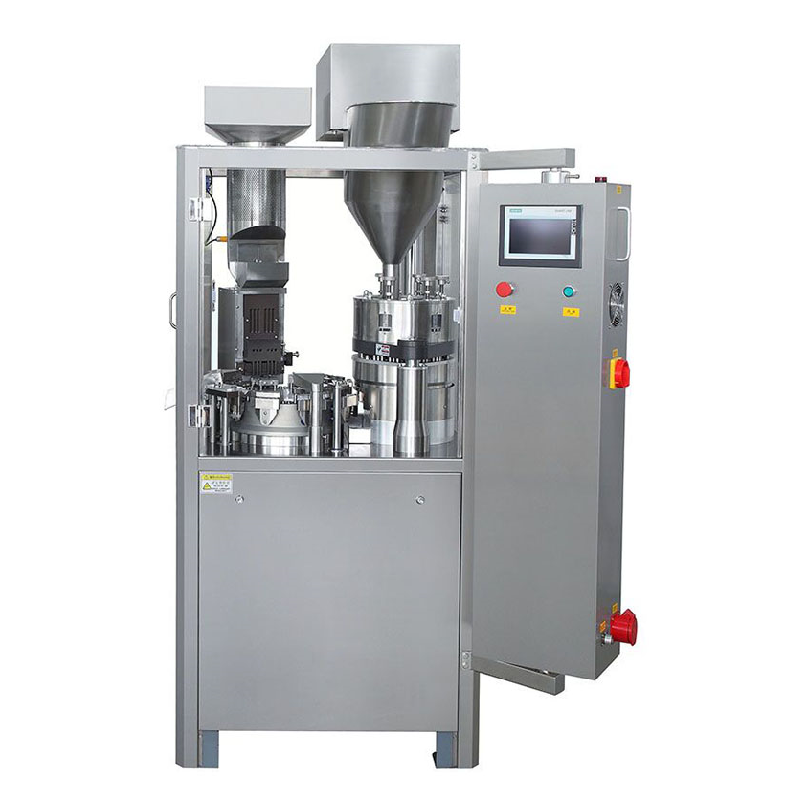

NJP-1200 Automatic Capsule Filling Machine IN STOCK
NJP-1200 Fully Automatic Capsule Filling Machine serves as an advanced alternative to semi-automatic capsule fillers. Complying with GMP specifications, it is ideal for hospitals, medical research labs and small pharma and health product factories, winning consistent praise from buyers worldwide.
Main Specifications
Model NJP-200 NJP-400 NJP-800 NJP-1000 NJP-1200 NJP-2000 NJP-2300 NJP-3200 NJP-3500 NJP-3800
Capacity (pcs/min) 200 400 800 1000 1200 2000 2300 3200 3500 3800
Filling Type Powder, Pellet
Number of Segments 2 3 6 8 9 18 18 23 25 27
Voltage Voltage 380, 50Hz (could be customized)
Filling Accuracy (%) 99.9
Suitable Capsule Size 00 / 00 / 0 / 1 / 2 / 3 / 4 / 5
Noise (dB) ≤75
Machine Dimension (mm) 750x680x1700 1020x860x1970 1200x1050x2100 1850x1470x2080
Machine Net Weight (kg) 700 900 1300 2400
Product Features
  • Machine is with small footprint, lower power consumption and easy to operate and clean
  • Components can be interchanged, the replacement of molds is convenient and accurate
  • Adopts cam downside design which increased pressure in atomizing pumps, keep cam slot well lubricated and reduced the wearing
  • HMI system that can eliminate faults such as material/capsule shortage and other faults, automatic alarm and shutdown, real-time calculation and accumulation measurement, and high accuracy in statistics
  • Machine can do separation of capsules, filling, rejection, locking capsules at same time. The module design which is easy for cleaning
Frequently Asked Questions
What is the advantage of the new dosing disk (metering plate) knob design?
The machine features an upgraded dosing disk adjustment system with a precision knob design, allowing fine and stable control of filling volume. Operators can adjust dosage more accurately without complex tools, improving consistency and reducing material waste during production.
How does the quick mold change system work?
The machine is equipped with a quick-release mold structure, enabling fast disassembly and installation of key components such as capsule plates, dosing disks, and sealing parts. This significantly reduces changeover time between different capsule sizes and improves overall production flexibility.
What types of capsules and materials are compatible?
It is suitable for hard gelatin capsules and HPMC capsules, typically in sizes from 000 to 5. The machine can handle powders, granules, and pellet blends with good flowability. For special formulations, optional feeding or pre-treatment systems may be required.
How does the machine ensure accuracy and stable performance during continuous operation?
The system uses a high-precision dosing mechanism combined with stable mechanical transmission and automated control. The improved dosing disk design ensures uniform filling, while the machine structure minimizes vibration and ensures consistent capsule weight during long production runs.
