NJP-2500 Fully Automatic Capsule Filling Machine
NJP-2500 Fully Automatic Capsule Filling Machine
Specifications
Powersupply :
220V/380V, 50Hz/60Hz
Industry :
Pharmaceutical,food,nutrition
Model Number :
NJP-2500
Each segment capsules number :
18
Userinterface :
Touchscreen HMI
Payment Terms :
T/T
Highlight :
Fast changeover capsule mold
Customizationoptions :
Available based on product and packaging requirements
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Packaging Details :
Fumigation-free plywood
Features :
NJP-2500 Capsule Filling Machine
Certification :
CE
Electrcial system :
German-brand PLC system
Place of Origin :
Shanghai,China
Filling accuracy :
±1%-2%
Maintenance :
Easy maintenance with modular design
Brand Name :
TIWIN INDUSTRY
Max.Capacity :
2500 pcs per minute
Description

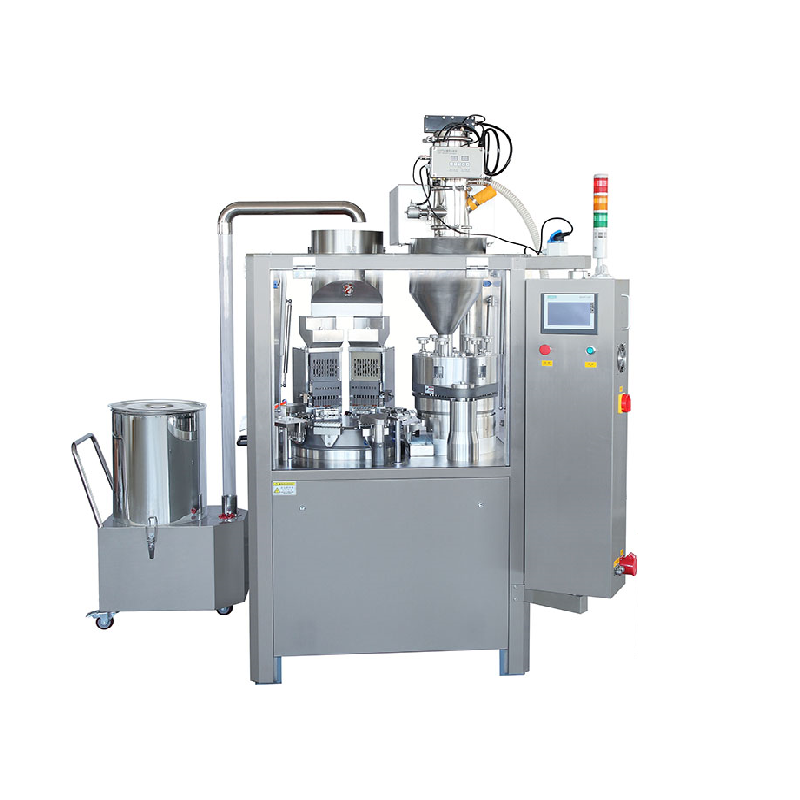

NJP-2500 Fully Automatic Capsule Filling Machine

The NJP-2500 Fully Automatic Capsule Filling Machine is a high-capacity, medium-to-high-speed encapsulation solution designed to meet the rigorous demands of mass pharmaceutical and nutraceutical production. Engineered with an intermittent motion and hole-plate type dosing system, the NJP-2500 seamlessly automates the entire process: capsule feeding, separation, filling (powder, granules, or pellets), defective capsule rejection, locking, and finished product discharge. Fully compliant with GMP and CE standards.

Technical Specifications
Model NJP-2500
Filling Type Powder
No. of Segment Bores 18
Capsule Size Suitable for filling capsule size 00#-5# / safety capsule size: A-E
Max Output 2500 pcs/minute
Power Supply 220V/3P 60hz
Power 6.97kw
Noise Index <75 dba
Filling Accuracy ±1%-2%
Overall Size 1200*1050*2100 mm
Weight 1300 kg
Key Features
  • High Production Efficiency Capable of producing up to 150,000 capsules per hour, supporting large-scale and continuous manufacturing operations.
  • Precision Filling Performance Advanced dosing and metering technology ensure accurate filling with excellent consistency and reduced product variation.
  • Intelligent PLC Control System Equipped with a PLC control system, touchscreen HMI interface, and user-friendly operation for parameter setting, alarm display, and production management.
  • Fully Enclosed GMP Design Stainless steel construction and enclosed filling structure minimize dust contamination and simplify cleaning and maintenance, complying with pharmaceutical manufacturing standards.
  • Stable Mechanical Structure High-precision transmission components and optimized turntable design ensure smooth operation, low vibration, and extended service life.
  • Flexible Capsule Compatibility Supports multiple capsule sizes (00#-5#) and accommodates various filling materials including powder, pellets, granules, and tablets.
Frequently Asked Questions
What types of materials can the NJP-2500 fill?
The NJP-2500 is designed to fill a wide range of materials including powders, granules, pellets, and combined formulations into hard capsules with high precision and consistency.
What is the production capacity of the machine?
The NJP-2500 offers a maximum output of up to 150,000 capsules per hour, making it suitable for medium to large-scale pharmaceutical and nutraceutical production.
Which capsule sizes are supported?
The machine supports multiple capsule sizes from 00# to 5#, allowing flexible production for different product requirements.
Is the machine compliant with GMP requirements?
Yes. The NJP-2500 features a fully enclosed structure, stainless steel contact parts, and a hygienic design that supports GMP manufacturing standards.
How accurate is the filling process?
The machine adopts a precision dosing system to ensure stable filling performance and minimize material variation, helping maintain product quality and consistency.
Is the machine easy to operate?
Yes. The NJP-2500 is equipped with an intuitive PLC control system and touchscreen interface for easy parameter setting, production monitoring, and operation management.
Does the machine include automatic fault detection?
Yes. The machine includes intelligent monitoring functions that can detect capsule shortages, insufficient filling materials, and operational abnormalities with automatic alarms and protection features.
Can the machine operate continuously for long production runs?
Yes. The robust mechanical structure and optimized transmission system are designed to support stable and continuous operation in industrial manufacturing environments.
Is changeover between capsule sizes convenient?
Yes. The machine is designed for efficient size changeover and simplified adjustment procedures, reducing downtime during production transitions.
What industries is the NJP-2500 suitable for?
The machine is widely used in pharmaceutical manufacturing, nutraceutical production, healthcare products, traditional medicine processing, and R&D applications.
What maintenance is required?
Routine maintenance includes cleaning, lubrication of moving components, inspection of filling mechanisms, and regular checks of electrical and pneumatic systems to ensure optimal performance.
Can the machine be customized?
Yes. Optional configurations and customization services may be available according to production requirements, material characteristics, and factory layout.
