High Speed Automatic Capsule Filler Pharmaceutical Empty Pill
High Speed Automatic Capsule Filler Pharmaceutical Empty Pill
Specifications
Maintenance :
Easy maintenance with modular design
Highlight :
Fast changeover capsule mold
Each Segment Capsules Number :
18
Packaging Details :
Fumigation-free plywood export packaging
Max. Capacity :
2500 pcs per minute
Place of Origin :
Shanghai,China
MOQ :
1 Set
Features :
NJP-2500 High Speed Automatic Capsule Filling Machine
Certification :
CE
Brand Name :
TIWIN INDUSTRY
Model Number :
NJP-2500
Feature :
NJP-2500 High Speed Capsule Filling Machine
Filling Accuracy :
±1%-2%
Supply Ability :
30 Sets per Month
Payment Terms :
T/T
Delivery Time :
10 business days
Power supply :
220V/380V 50Hz/60Hz
Description

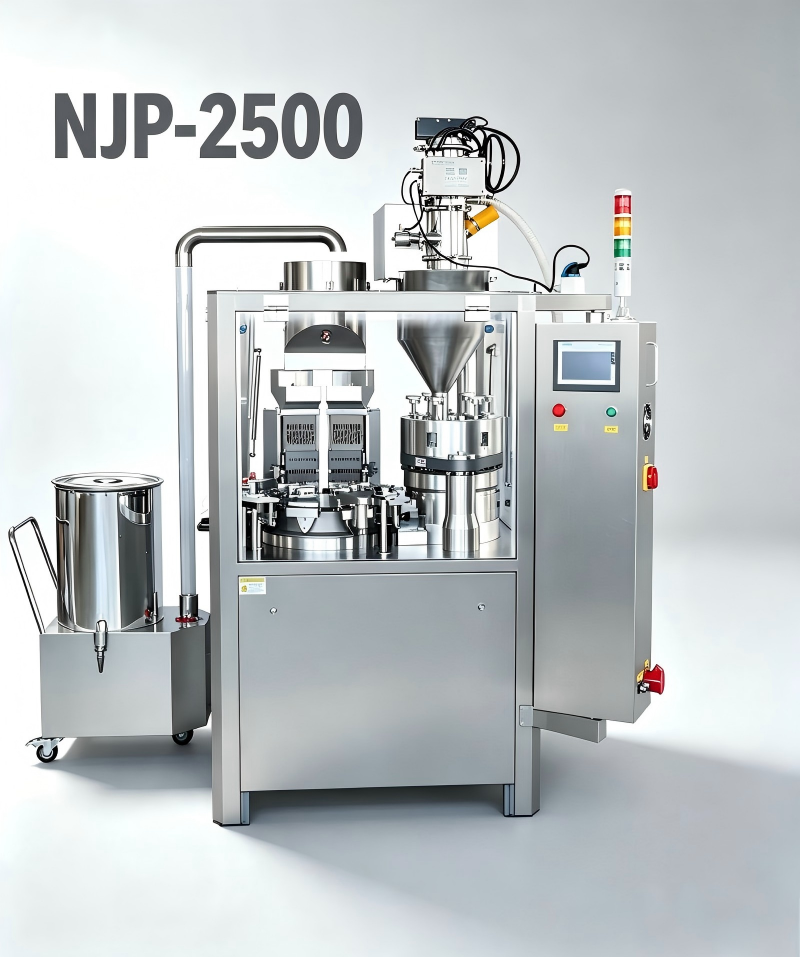

NJP-2500 High Speed Capsule Filling Machine — 2500 Capsules Per Minute

The NJP-2500 High Speed Automatic Capsule Filling Machine is a premier large scale encapsulation solution delivering up to 2,500 capsules per minute (150,000 capsules per hour). Equipped with 18 segment bores, a German-brand PLC control system, and ±1%-2% filling accuracy, this intermittent motion hole-plate dosing machine is engineered for continuous high-volume pharmaceutical and nutraceutical capsule production. Fully GMP and CE compliant.

Technical Specifications
Model NJP-2500
Filling Type Powder / Pellets / Granules
No. of Segment Bores 18
Capsule Size 00#-5# / Safety capsule size: A-E
Max Output 2500 pcs/minute (150,000 pcs/hour)
Power Supply 220V/3P 60hz
Power 6.97kw
Noise Index <75 dba
Filling Accuracy ±1%-2%
Overall Size 1200x1050x2100 mm
Weight 1300 kg
Key Features
  • 2500 Capsules Per Minute OutputIndustry-leading production speed of 2,500 capsules per minute (150,000 per hour) supports the most demanding large scale continuous manufacturing operations with unmatched throughput.
  • 18-Bore Precision Filling SystemAdvanced dosing and metering technology across 18 segment bores ensures ±1%-2% accuracy with excellent batch-to-batch consistency and minimal product content variation.
  • German-Brand PLC Intelligent ControlHigh-reliability German PLC system with intuitive touchscreen HMI enables real-time parameter adjustment, alarm diagnostics, production data logging, and multi-recipe storage.
  • Fully Enclosed GMP DesignComplete SUS304 stainless steel construction with enclosed filling chamber minimizes airborne dust contamination, simplifies CIP cleaning procedures, and meets global pharmaceutical regulatory standards.
  • Heavy-Duty Mechanical PlatformHigh-precision cam-driven transmission, optimized turntable indexing, and reinforced frame construction ensure stable vibration-free operation at maximum speed with extended equipment service life.
  • Fast Capsule Size ChangeoverSupports 00# to 5# standard capsules plus safety A-E formats with quick-change mold sets. Complete size changeover achievable in under 30 minutes for flexible multi-product production lines.
Frequently Asked Questions
What is the maximum output of the NJP-2500 capsule filling machine?
The NJP-2500 delivers up to 2,500 capsules per minute (150,000 per hour), making it one of the highest-output intermittent motion capsule filling machines available for pharmaceutical and nutraceutical large scale production.
Is the NJP-2500 suitable for large scale pharmaceutical manufacturing?
Yes. With its 18 segment bores, German PLC control, fully enclosed GMP design, and 150,000 capsules per hour throughput, the NJP-2500 is purpose-built for high-volume pharmaceutical production lines requiring continuous 24/7 operation capability.
Which capsule sizes does the NJP-2500 support?
The machine supports 00# to 5# standard capsule sizes plus safety capsule sizes A-E, with fast mold changeover enabling flexible multi-product production on a single machine platform.
What filling accuracy can be expected?
The NJP-2500 achieves ±1%-2% filling accuracy with its advanced screw-type dosing and metering system across all 18 segment bores, ensuring consistent capsule weight and content uniformity throughout extended production runs.
