1200pcs/Min Capsule Filling Machine The Capsule Machine 000 To 4# CE 380V
1200pcs/Min Capsule Filling Machine The Capsule Machine 000 To 4# CE 380V
Specifications
Vacuum Requirement :
0.03-0.05 MPa, 60 m³/h
Maximum Output :
1200 capsules/min
Powersupply :
220V/380V, 50Hz/60Hz
Model Number :
NJP-1200
Maintenance :
Easy maintenance with modular design
Industry :
Pharmaceutical,food,nutrition
MOQ :
1 Set
Certification :
CE
Feature :
NJP-1200 Fully Automatic Capsule Filling Machine
Afrer sale service :
24hours in 7 days online support
Place of Origin :
Shanghai,China
Delivery Time :
20 business days
Capsule Size Changeover :
≤30 minutes (tool-free)
Customizationoptions :
Available based on product and packaging requirements
Brand Name :
TIWIN INDUSTRY
Packaging Details :
Export-grade plywood case with vacuum-sealed moisture barrier and foam cushioning
Filling Material Types :
Powder, Pellets, Granules
Compressed Air Requirement :
0.4-0.6 MPa, 0.6 m³/min
Supply Ability :
50 Sets per Month
Userinterface :
Touchscreen HMI
Payment Terms :
T/T
Capsule Size Range :
00#, 0#, 1#, 2#, 3#, 4#
Description
NJP-1200 Fully Automatic Capsule Filling Machine
NJP-1200 Fully Automatic Capsule Filling Machine

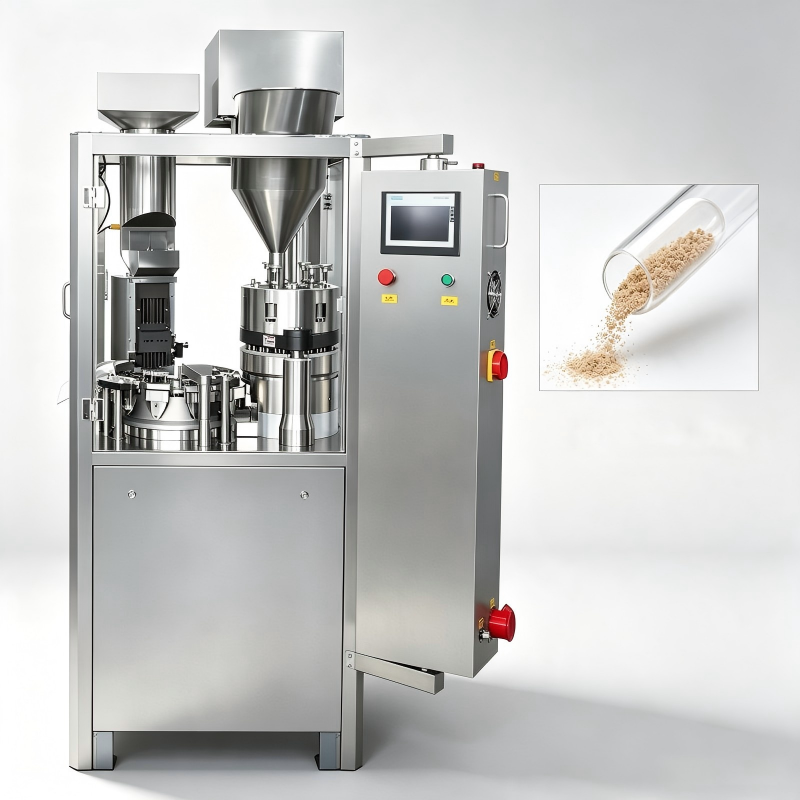

The NJP-1200 Capsule Filling Machine is a fully automatic high-speed capsule filler delivering up to 1,200 capsules per minute. Designed for pharmaceutical and nutraceutical manufacturers, it handles powder, pellet, granule, and micro-tablet filling with ±2.5% dose accuracy across capsule sizes 00# to 4# with tool-free changeover in ≤30 minutes.

Material Compatibility
  • Powders: Free-flowing and cohesive pharmaceutical powders, APIs with excipients, herbal powder extracts with ±2.5% dose accuracy
  • Pellets: Sustained-release pellets, enteric-coated pellets, multi-particulate delivery systems with minimal pellet fracture
  • Granules: Wet and dry granulated products, effervescent granules, direct compression blends
  • Combination Filling: Pellets + powder, granules + powder, or multiple pellet blends in a single capsule
Technical Specifications
Model NJP-1200
Maximum Output 1,200 capsules/min
Capsule Size 00#, 0#, 1#, 2#, 3#, 4#
Filling Materials Powder, Pellets, Granules, Micro-Tablets
Dose Accuracy ±2.5%
Size Changeover Time ≤30 minutes (tool-free)
Control System PLC with 7-inch Touch Screen
Total Power 3.8 kW, 380V/50Hz 3-Phase
Vacuum Requirement 0.03-0.05 MPa, 60 m³/h
Compressed Air 0.4-0.6 MPa, 0.6 m³/min
Machine Weight 1000 kg
Dimensions 1020x1000x2100 mm
Key Features
  • 1,200 capsules per minute maximum output for high-volume production
  • Supports capsule sizes 00# to 4# (hard gelatin and HPMC capsules)
  • Fills powder, pellets, granules in a single machine platform
  • Tool-free capsule size changeover in ≤30 minutes
  • PLC control with 7-inch touch screen for intuitive operation
  • Dose accuracy ±2.5% with adjustable dosing disc
  • CE certified meeting international quality and safety standards
FAQ

What makes the NJP-1200 different from other capsule filling machines?

The NJP-1200 combines 1,200 capsules per minute output with multi-material capability (powder, pellets, granules, micro-tablets) in a single platform. Its tool-free 30-minute size changeover and PLC-controlled ±2.5% dose accuracy make it ideal for contract manufacturers requiring flexible production without compromising speed.
