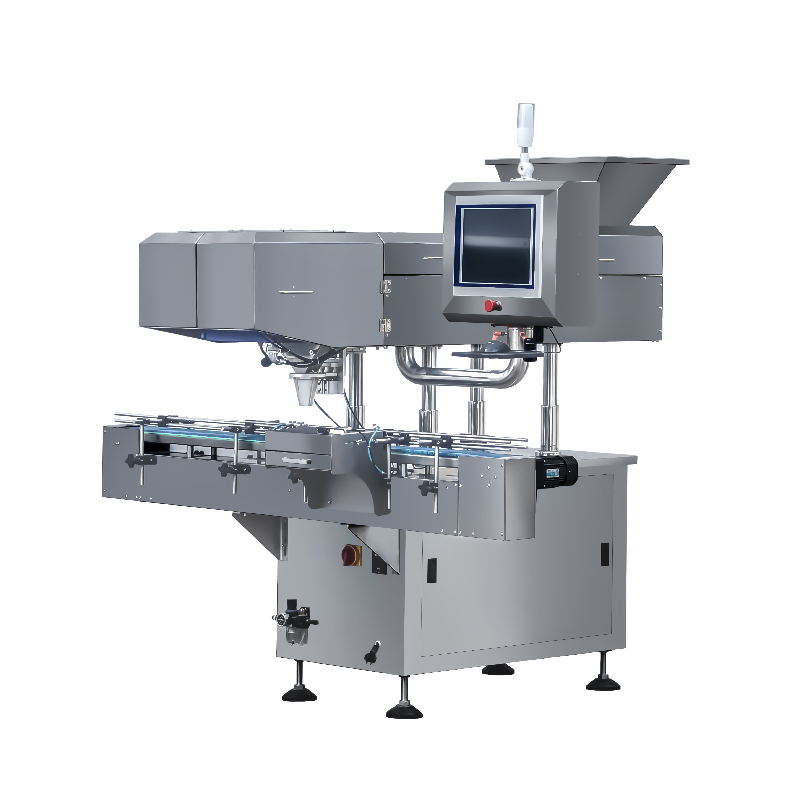

16 Channels Counting Machine Easy Operation
16 Channels Counting Machine Easy Operation
Specifications
Delivery Time :
20 business days
Certification :
CE
Capacity :
16 to 70 bottles per minute
Industry :
Pharmaceutical,food,nutrition
Powersupply :
220V/380V, 50Hz/60Hz
Features :
16 Channels Counting Machine
Maintenance :
Easy maintenance with modular design
Place of Origin :
Shanghai,China
Certificate :
CE
Vibration channels type :
3-stage vibration
Userinterface :
Touchscreen HMI
Brand Name :
TIWIN INDUSTRY
Customizationoptions :
Available based on product and packaging requirements
Packaging Details :
Fumigation-free plywood
Payment Terms :
T/T
Material :
Product contact area is made of SUS316 stainless steel
Model Number :
TW-16
After sale service :
24 hours in 7 days online support
Afrer sale service :
24hours in 7 days online support
Description
16 Channels Counting Machine Easy Operation
Working Principle

The transporting bottle mechanism allows bottles to pass through the conveyor while the bottle stopper mechanism keeps bottles stationary at the bottom of the feeder via sensor control.

Tablets and capsules pass through the channels via vibration, moving one by one into the feeder. A counter sensor installed in the system uses quantitative counting to fill specified quantities of tablets/capsules into bottles.

Main Specifications
Model TW-16
Capacity 20-80 Bottles per minute
Voltage 380V/3P 50Hz *can be customized
Power 1.2kw
Compressed Air Consumption 0.6Mpa 3.8L/min
Machine Dimension 1,400x1,400x1,560mm
Net Weight 350kg
Filling Range 2-9999 pcs (adjustable)
Applicable Products 00-5# capsules, soft gels, ф5.5-12 normal tablets, special shape tablets, coating tablets, ф3-12 pills
Key Features
  • 3-stage vibration design with widened channels for popular capsule sizes like #00, preventing jams
  • Vibration speed adjustable based on capsule/tablet size
  • High filling accuracy
  • SUS316L stainless steel for product contact areas
  • Top channel covers for GMP standard compliance
  • Easy parameter setting through touch screen interface
  • Free customized funnel sizing based on bottle dimensions
  • Long conveyor for direct connection with counting line machines for full automation
  • Easy adjustment of conveyor height and width
  • CE Certificate included

1. What is a 16-channel counting machine used for?

A 16-channel counting machine is designed for high-speed and accurate counting and bottling of capsules, tablets, softgels, and other solid dosage forms. The multi-channel structure allows simultaneous counting, significantly improving packaging efficiency.

2. What is the advantage of the 16-channel design?

The 16-channel system enables parallel material feeding and counting, ensuring higher speed, better stability, and reduced bottlenecks compared to lower-channel machines. It is ideal for medium to large-scale production lines.

3. How does the machine ensure counting accuracy?

The machine uses high-precision photoelectric sensors combined with intelligent control software to detect and count each product accurately. It also features anti-missing and anti-overcounting functions to ensure consistent bottle filling.

4. Is the machine easy to change products and clean?

Yes. The machine is designed with quick-release parts and a user-friendly structure, allowing fast changeover between different capsule or tablet sizes. The smooth surface design also makes cleaning and maintenance convenient and efficient.
