Automatic Capsule Counting Machine Visual Counting Machine 50 Bottles/Minute
Automatic Capsule Counting Machine Visual Counting Machine 50 Bottles/Minute
Specifications
Feature :
Automatic Visual Counting Machine
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Brand Name :
TIWIN INDUSTRY
Highlight :
3-stage vibration widened channel
Packaging Details :
Fumigation-free plywood export packaging
Number of Channels :
8
Userinterface :
Touchscreen HMI
Delivery Time :
20 business days
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Payment Terms :
T/T
Machine Dimension :
1,900x1,800x1,750mm
Supply Ability :
30 Sets per Month
Machine Net Weight :
560kg
Certification :
CE
Industry :
Pharmaceutical,food,nutrition
Place of Origin :
Shanghai,China
Model Number :
TW-8H
MOQ :
1 Set
Capacity :
30-50 bottles per minute
Description

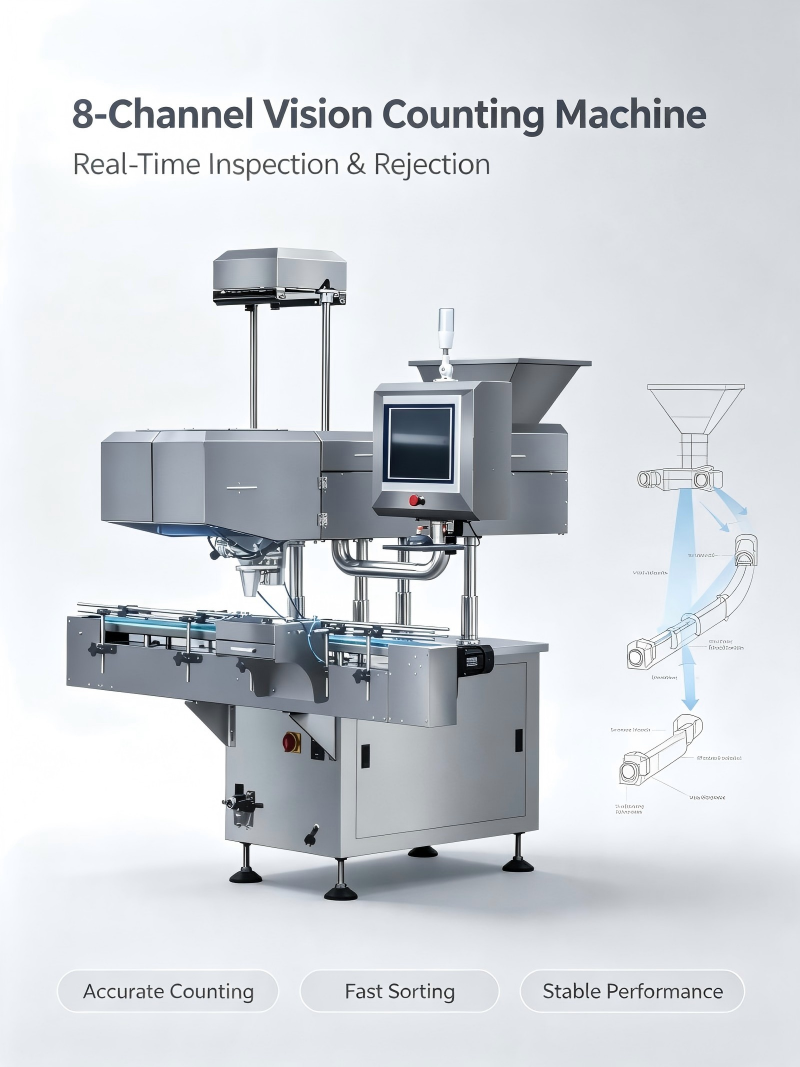

Automatic Visual Counting Machine TW-8H Tablet Capsule Bottle Filler 8 Channels 50 Bottles Per Minute CE
Product Overview

The TW-8H Automatic Visual Counting Machine automates the complete tablet and capsule counting and bottle filling process. From product vibration feeding through 8 independent channels to photoelectric counting and automatic bottle rejection, every step is controlled via the 7-inch touch screen interface. The long conveyor design enables seamless inline connection to capping, labeling, and packaging machines for fully automated pharmaceutical production lines.

Technical Specifications
Model TW-8H
Number of Channels 8
Capacity 30-50 bottles per minute
Voltage 220V/1P 50Hz
Power 0.8kw
Compressed Air 0.6Mpa 3.8L/min
Machine Dimension 1,900 x 1,800 x 1,750mm
Net Weight 560kg
Key Features
  • 8 independent counting channels with 3-stage vibration for smooth product flow
  • Photoelectric sensor counting with high accuracy and automatic bottle detection
  • Widened channels with top covers for GMP-compliant pharmaceutical production
  • SUS316L stainless steel product contact areas suitable for food-grade applications
  • 7-inch touch screen interface with storage for up to 10 parameter presets
  • Automatic rejection of overfilled/underfilled bottles and foreign particle detection
  • Long conveyor design for direct connection with filling line downstream machines
  • Adjustable conveyor height and width for flexible production line integration
  • Fully automatic operation from counting to bottle detection and rejection — minimal operator intervention
Vision Counting System - Frequently Asked Questions
Q1: What products can the vision counting system handle?
A: It is suitable for counting tablets, capsules, softgels, candies, seeds, hardware parts, and other regular or irregular items.
Q2: What are the advantages of vision counting over traditional photoelectric counting?
A: Vision counting provides higher accuracy by identifying the shape, overlap, orientation, and defects of each item, while also enabling simultaneous visual inspection.
Q3: How accurate is the vision counting system?
A: Depending on the product characteristics and system configuration, counting accuracy can typically exceed 99.9%.
Q4: Is it difficult to switch between different products?
A: No. Most product changes only require selecting the appropriate recipe and making minor parameter adjustments, with minimal downtime.
Q5: Can the system support high-speed production?
A: Yes. The system is designed for high-speed production lines and can be configured with multiple cameras and optimized algorithms to meet different throughput requirements.
Q6: Can the system detect damaged or defective products?
A: Yes. The vision system can identify defects such as broken, chipped, cracked, discolored, or foreign objects during the counting process.
Q7: How does the system ensure long-term stable performance?
A: The system combines industrial-grade cameras, stable LED lighting, and intelligent software. It also supports automatic calibration, data logging, and preventive maintenance.
Q8: Can the vision counting system be integrated into existing production lines?
A: Yes. The system can be customized to integrate seamlessly with existing production lines, packaging equipment, PLCs, MES, and other factory automation systems.
