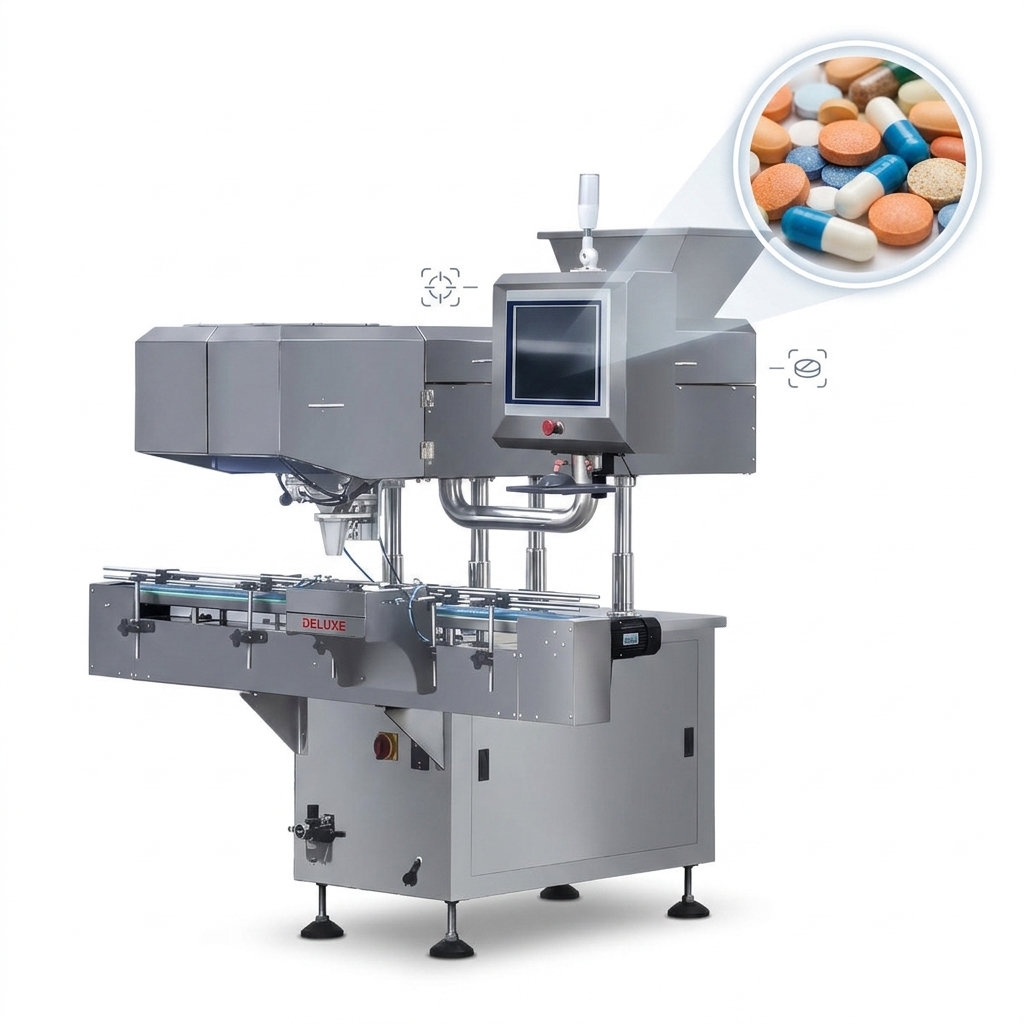

8 Channel Automatic Capsule Counting And Filling Machine CE 380V
8 Channel Automatic Capsule Counting And Filling Machine CE 380V
Specifications
Model Number :
TW-8
Capacity :
10-30 bottles per minute
Certification :
CE
Net weight :
280kg
Payment Terms :
T/T
Highlight :
Widen channels for big size capsules such as #00
Userinterface :
Touchscreen HMI
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Feature :
8-channel tablet/capsule counting machine
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Place of Origin :
Shanghai,China
Material contact area :
SUS316 stainless steel
Industry :
Pharmaceutical,food,nutrition
Brand Name :
TIWIN INDUSTRY
Model :
TW-8
Description
8-channel Tablet/capsule Counting Machine
The 8-Channel Counting Machine is a high-speed, precision counting system designed for tablets, capsules, softgels, and other solid dosage forms. Equipped with eight independent counting channels, it ensures accurate and efficient counting while minimizing product breakage and dust interference.
Featuring an advanced photoelectric sensing system and intelligent control technology, the machine delivers reliable counting accuracy and stable performance. It is widely used in nutraceutical, food, and healthcare industries for automatic bottle filling and packaging.
Technical Specifications
Model TW-8
Capacity 10-30 bottles/minute (based on filling quantity)
Voltage 380V/3P 50Hz
Motor Power 0.65kw
Overall Size 1360x1260x1,670mm
Weight 280kg
Loading Capacity Adjustable from 2-9999 per bottle
Applicable Products 00-5# capsules, soft gels, ф5.5-12 normal tablets, special shape tablets, coating tablets, ф3-12 pills
Key Features
  • 8 independent counting channels for high production efficiency
  • High counting accuracy with advanced photoelectric sensors
  • Versatile compatibility for tablets, capsules, softgels, and similar products
  • Automatic bottle detection and no-bottle-no-count function
  • Easy operation through a user-friendly touch screen
  • Stainless steel construction compliant with GMP standards
  • Simple cleaning and maintenance with quick product changeover
  • Stable performance with low maintenance requirements
Frequently Asked Questions
  1. What products can this counting machine handle?
    The machine is suitable for counting tablets, capsules, softgels, pills, and other solid dosage products. It can accommodate various shapes and sizes with simple parameter adjustments.
  2. What is the counting accuracy?
    The machine provides a counting accuracy of up to 99.8% or higher under normal operating conditions, depending on the product characteristics and machine settings.
  3. What is the production capacity?
    The production capacity depends on the product size and the number of pieces per bottle. Generally, the machine can process up to several thousand bottles per hour.
  4. Can the machine count different products without changing parts?
    Yes. Most products can be counted by adjusting the machine parameters through the touchscreen, reducing changeover time and improving production efficiency.
  5. Does the machine support different bottle sizes?
    Yes. The machine is designed to accommodate a wide range of bottle diameters and heights. Bottle guides can be adjusted easily for different container sizes.
  6. Does the machine have a no-bottle, no-count function?
    Yes. The machine automatically detects the presence of bottles. If no bottle is detected, the counting process will not start, preventing product waste.
  7. Is the machine easy to clean?
    Yes. The contact parts are designed for quick disassembly and cleaning. The stainless-steel construction meets GMP requirements and helps maintain hygienic production.
  8. Can the machine be integrated into a complete packaging line?
    Yes. It can be connected with bottle unscramblers, desiccant inserters, capping machines, induction sealers, labeling machines, and other packaging equipment to create a fully automatic production line.
  9. What power supply is required?
    The machine can be customized to meet local electrical standards, including 110V/60Hz or 220V/50Hz, according to customer requirements.
  10. What maintenance does the machine require?
    Routine maintenance includes cleaning the counting channels, checking sensors, and performing regular inspections. Proper maintenance ensures long-term accuracy and reliable performance.
  11. Do you provide installation and technical support?
    Yes. We provide installation guidance, operation training, technical documentation, and after-sales support. Online assistance and overseas service are also available upon request.
  12. Can the machine be customized?
    Yes. We offer customized solutions based on your product specifications, bottle sizes, production capacity, and packaging line requirements.
  13. What certificates does the machine have?
    Our machines are manufactured in accordance with GMP requirements and can be supplied with CE certification and other documentation as required by your market.
