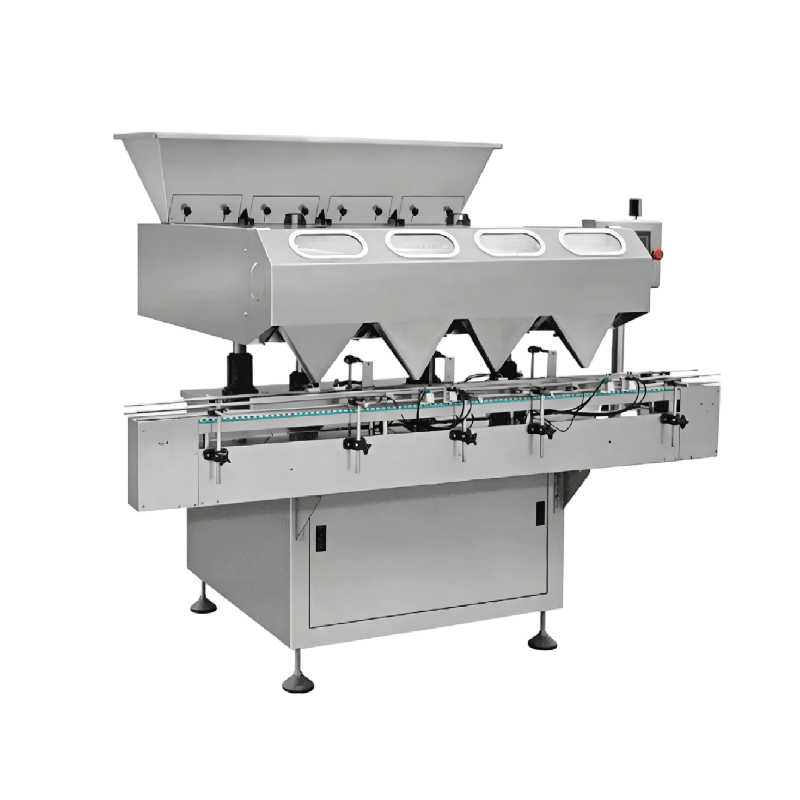

48-Channel High-Speed Automatic Counting & Bottling Machine
48-Channel High-Speed Automatic Counting & Bottling Machine
Specifications
Model Number :
TW-48
Maintenance :
Easy maintenance with modular design
Industry :
Pharmaceutical,food,nutrition
Payment Terms :
T/T
Net weight :
650kg
Packaging Details :
Fumigation-free plywood
Filling nozzles :
4 pcs
Delivery Time :
20 business days
Features :
48-Channel High-Speed Automatic Counting
Powersupply :
220V/380V, 50Hz/60Hz
Certification :
CE
Max.Capacity :
120 pcs per minute
Parameter set method :
By touch screen
Afrer sale service :
24hours in 7 days online support
Brand Name :
TIWIN INDUSTRY
Userinterface :
Touchscreen HMI
Customizationoptions :
Available based on product and packaging requirements
Place of Origin :
Shanghai,China
Filling accuracy :
99.5%
Description
48-Channel High-Speed Automatic Counting & Bottling Machine

High-Capacity Counting Solution for Tablet and Capsule Packaging Lines

The 48-Channel High-Speed Automatic Counting & Bottling Machine is designed for accurate and efficient counting and bottle filling of tablets, capsules, softgels, and similar solid products. Featuring an advanced multi-channel counting system and intelligent control technology, the machine delivers high output while maintaining counting accuracy and stable performance.

Designed for integration into fully automatic counting and bottling lines, the machine is widely used in pharmaceutical, nutraceutical, healthcare, and food industries for large-scale production.

With fast bottle changeover, user-friendly operation, and GMP-compliant construction, the 48-channel counting machine helps manufacturers improve productivity and reduce labor costs.

Technical Specifications
Model TW-48
Suitable bottle type Round, square shaped plastic bottle
Suitable for tablet/capsule size 00~5# capsule, soft capsule, with 5.5 to 14 tablets, special-shaped tablets
Production capacity 20-120 bottles/minute
Bottle setting range 1-9999
Voltage 220V/1P 50Hz
Power 2.5kw
Accuracy rate >99.5%
Overall size 1950 x 1650 x 1650 mm
Weight 650kg
Key Features
  • High-Speed 48-Channel Counting System: Equipped with a high-efficiency 48-channel counting structure to achieve large production capacity while maintaining precise counting performance.
  • High Counting Accuracy: Advanced photoelectric sensing and intelligent counting technology ensure accurate product counting and minimize bottle rejection.
  • Wide Product Compatibility: Suitable for tablets, capsules, softgels, pills, and similar solid dosage forms with flexible adjustment for different product sizes.
  • Continuous and Stable Operation: Optimized feeding and conveying systems reduce material blockage and support long-term stable production.
  • Intelligent PLC Control: Touchscreen operation interface enables easy parameter setting, alarm display, and data management.
  • Automatic No-Bottle, No-Filling Function: The system automatically stops counting when bottles are absent, reducing product waste and improving efficiency.
  • Easy Cleaning and Fast Changeover: Modular design allows convenient cleaning and rapid switching between different bottle specifications.
Why Choose Our 48-Channel Counting Machine?
  • High-speed production for large output requirements
  • Stable counting performance with high accuracy
  • Flexible for multiple product types
  • Easy integration into complete bottling lines
  • Reduced labor and operating costs
Contact us for customized solutions, technical specifications, and quotation.
Frequently Asked Questions
1. What products can the 48-channel counting machine count?
The machine is designed for counting and bottling tablets, capsules, softgels, pills, and other solid products used in pharmaceutical, nutraceutical, healthcare, and food industries.
2. What is the maximum production capacity?
Production capacity depends on product size, bottle specifications, and counting quantity. The 48-channel design supports high-speed operation and is suitable for large-volume production lines.
3. What counting accuracy can the machine achieve?
The machine adopts advanced photoelectric counting technology to ensure high counting accuracy and stable operation throughout continuous production.
4. Can one machine handle different bottle sizes?
Yes. The machine supports multiple bottle formats and allows quick adjustment for different bottle diameters and heights.
5. Is the machine suitable for different tablet and capsule sizes?
Yes. The counting system is compatible with various tablet shapes and capsule sizes and can be adjusted according to product characteristics.
6. Does the machine support softgel counting?
Yes. The machine can process softgels and other sensitive products with stable feeding and gentle handling.
7. Can the machine be integrated into a complete bottling line?
Yes. The counting machine can be connected with bottle unscramblers, desiccant inserters, cotton inserters, capping machines, induction sealers, labeling machines, and collection tables for fully automatic production.
8. Does the machine have a no-bottle, no-counting function?
Yes. The machine automatically stops counting when no bottle is detected to reduce product waste and improve packaging efficiency.
9. Is the machine easy to operate?
Yes. The machine features a PLC control system with a touchscreen interface for simple operation, parameter setting, and production monitoring.
10. Is the machine compliant with GMP requirements?
Yes. The machine is manufactured with GMP-oriented design principles and uses stainless steel contact parts suitable for pharmaceutical production environments.
11. How long does product changeover take?
The quick-adjust structure allows fast cleaning and efficient changeover between different products and bottle specifications.
12. Do you provide installation and after-sales support?
Yes. We provide installation guidance, commissioning support, operator training, spare parts supply, and technical after-sales service.
13. Can the machine be customized?
Yes. Customized configurations are available based on production capacity, bottle sizes, counting requirements, and line integration needs.
