Induction Aluminum Foil Sealing Machine for Counting Bottling Line
Induction Aluminum Foil Sealing Machine for Counting Bottling Line
Specifications
Material :
SUS304 stainless steel
Capacity :
50-120 bottles per minute
Customizationoptions :
Available based on product and packaging requirements
Model Number :
TW-M1
Payment Terms :
T/T
Suitable for bottle mouth diameter :
Within 140mm
Maintenance :
Easy maintenance with modular design
Packaging Details :
Fumigation-free plywood
Volatge :
220V/1P 50Hz
Industry :
Pharmaceutical,food,nutrition
Delivery Time :
20 business days
Features :
Induction Aluminum Foil Sealing Machine
Certification :
CE
Powersupply :
220V/380V, 50Hz/60Hz
Brand Name :
TIWIN INDUSTRY
Userinterface :
Touchscreen HMI
Place of Origin :
Shanghai,China
Net weight :
220kg
Afrer sale service :
24hours in 7 days online support
Description

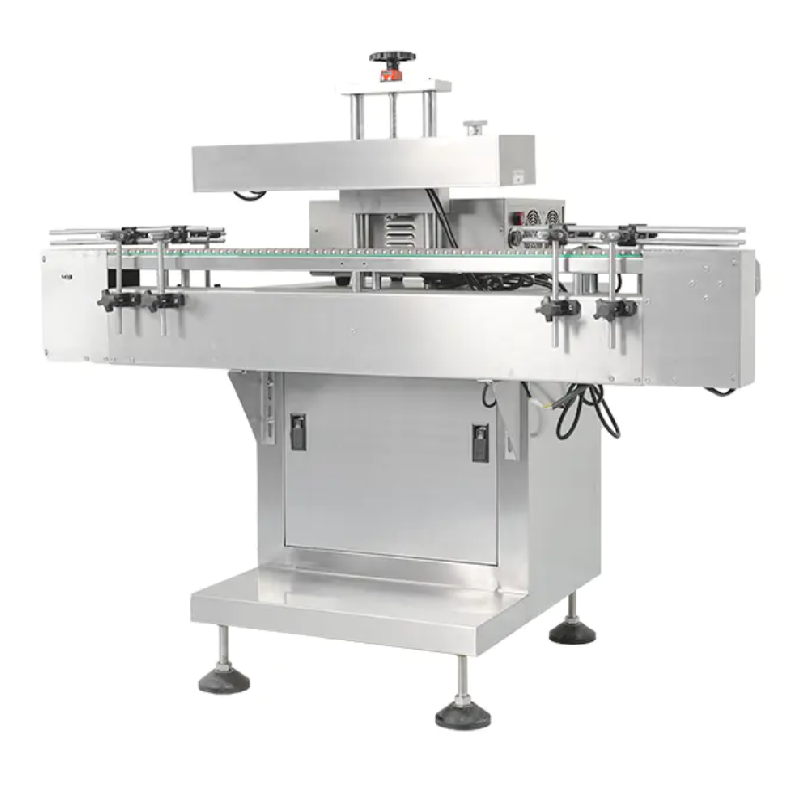

Induction Aluminum Foil Sealing Machine for Counting Bottling Line
The Induction Aluminum Foil Sealing Machine is specially designed for automatic counting and bottling production lines. It provides reliable and efficient bottle sealing for tablets, capsules, softgels, gummies, and other solid products.
Using advanced electromagnetic induction technology, the machine heats the aluminum foil liner inside the cap and bonds it securely to the bottle opening, creating a leak-proof and tamper-evident seal. This helps protect product quality, extend shelf life, and enhance packaging integrity.
Integrated seamlessly into automated packaging lines, the machine ensures stable performance, continuous operation, and high production efficiency.
Technical Specifications
Model TW-M1
Capacity 50-120 bottles/minute
Suitable for bottle mouth diameter 15-50mm
Suitable for bottle height 35-300mm
Voltage 110V/1P 60Hz
Power 2KW
Size 1,350×900×1,300mm
Weight 220kg
Key Features
  • Designed for automatic counting and bottling lines
  • Fast and consistent induction sealing performance
  • Strong sealing quality with excellent leak prevention
  • Suitable for different bottle diameters and cap specifications
  • Adjustable sealing power and conveyor speed
  • Easy integration with counting, capping, and labeling equipment
  • User-friendly touch screen control system
  • Low maintenance and long service life
Optional Configuration
  • Air-cooled sealing system
  • Automatic bottle rejection function
  • PLC control and HMI touch screen
  • Customized design based on production capacity
Capacity: Customized according to line speed requirements.
Technical FAQ
Q1: What voltage standards are available?
A: The machine can be manufactured according to local electrical standards, including 220V / 380V / 415V, 50Hz or 60Hz.
Q2: Does the machine comply with international standards?
A: The machine can be supplied with CE-compliant design and documentation upon request. Additional compliance requirements can be discussed based on the destination market.
Q4: What sealing accuracy and consistency can be expected?
A: The machine is designed to deliver stable and repeatable sealing performance under proper operating conditions and validated production parameters.
Q6: What is the recommended cap and foil specification?
A: Recommended foil structure and cap configuration depend on bottle material, opening diameter, and product application. Technical recommendations can be provided during project evaluation.
Q7: How long does product changeover take?
A: Quick adjustment design allows efficient changeover. Actual time depends on bottle format and line configuration.
Q9: What maintenance is required?
A: Routine maintenance mainly includes cleaning, inspection of electrical components, conveyor checks, and scheduled preventive maintenance.
Q10: What is the lead time?
A: Within 2 weeks.
Q11: Do you provide factory acceptance testing (FAT)?
A: Yes. FAT can be arranged before shipment to verify machine performance and customer requirements.
