90m/Min Tablet Counting Line Automatic Checkweigher Machine Touch Screen
90m/Min Tablet Counting Line Automatic Checkweigher Machine Touch Screen
Specifications
Platform dimension :
300mmx150mm
Packaging Details :
Fumigation-free plywood export packaging
Speed :
Match with the line speed
Payment Terms :
T/T
Alarm method :
Buzzer and warning light
Certification :
CE
Delivery Time :
10 business days
Touchscreen operation :
Yes
Model Number :
TWSG-150
Application :
Tablet/capsule counting and filling line
Supply Ability :
10 Sets per Month
Features :
Automatic Checkweigher
Rejection function :
Yes
Brand Name :
TIWIN INDUSTRY
Machine net weight :
75kg
Place of Origin :
Shanghai China
MOQ :
1 Set
Description

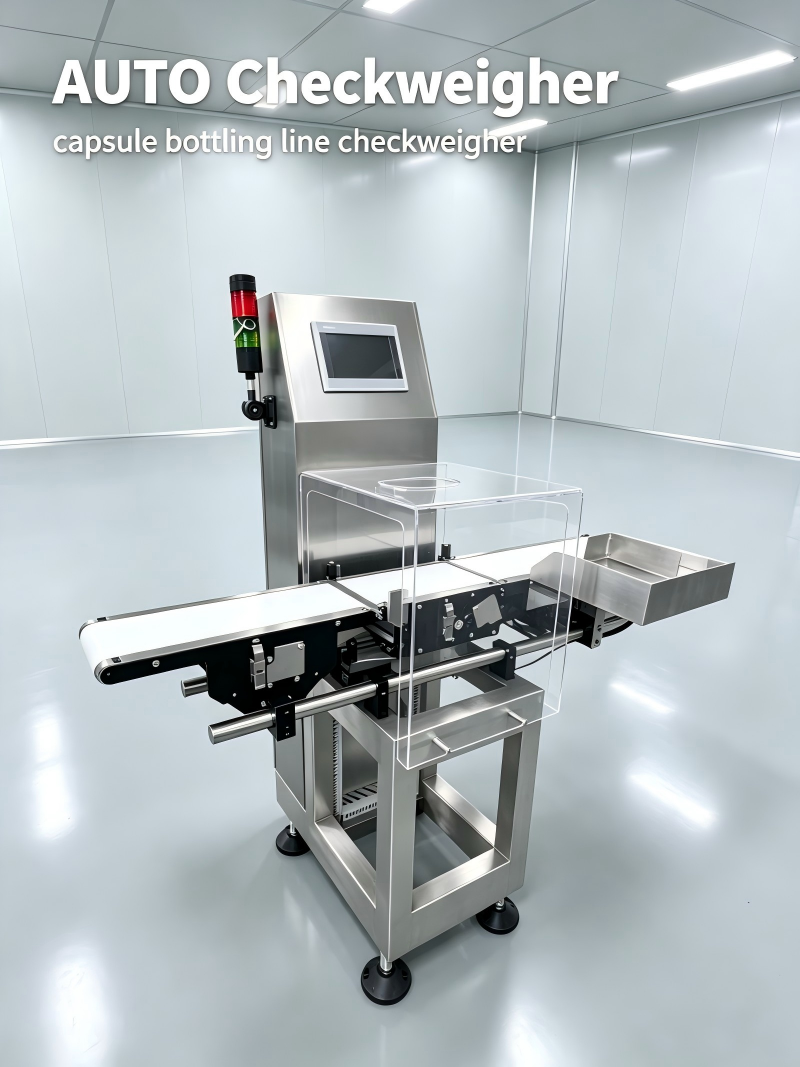

Automatic Checkweigher Machine TWSG-150 with Air Jet Rejection System
High-performance automatic checkweigher designed for seamless integration with tablet counting and packaging lines. Delivers accurate in-line weight verification, automatic rejection of non-conforming bottles, and real-time data tracking for GMP-compliant pharmaceutical production.
Technical Specifications
Model TWSG-150
Weighing method Weight Sensor
Rejection method Air jet
Operation method 7 inches touch screen
Alarm method Buzzer and warning light
Max. Speed 0-90m/min
Voltage AC110V/220V 50-60HZ
Power 100w
Platform dimension 300mmx150mm (Scale height: 750±50mm adjustable)
Net weight 75 kg
Key Features
  • Large-size color LCD touch screen interface, simple operation and intuitive display
  • Support multiple languages: Chinese, English, Spanish, Italian, Japanese, Korean, etc. (customer specified), default is Chinese and English
  • Can store 200 kinds of product test data, convenient for users to call
  • USB data storage interface, report data can be transferred to PC for analysis and printing
  • Parameter setting password protection, only management personnel operation
  • Automatic zero tracking system to ensure reliable test data
  • Embedded temperature and noise compensation system to ensure system stability
  • Online printing function (customer customization required)
  • Data external communication interface, can be connected to other equipment in the production line (eg: labeling machine and inkjet printer) (customer customization required)
  • Various rejection devices: lever type, air blowing type, roller push rod type, belt push rod type, falling type, flap type, belt retraction type (customer customization required)
  • Simple mechanical structure, easy to disassemble, clean and maintain. Use special shock-proof and shock-absorbing materials to ensure long-term stability and service life
Frequently Asked Questions
What is an automatic checkweigher and how does it work?
An automatic checkweigher is an in-line dynamic weighing system that verifies the weight of each product passing through the production line at high speed. It automatically compares each weight against preset limits and rejects any non-conforming items using an air jet or mechanical rejection system.
Can the automatic checkweigher be integrated into an existing production line?
Yes. The checkweigher is designed for seamless integration with tablet and capsule counting lines, capping machines, induction sealers, labeling machines, and other packaging equipment through standard data communication interfaces.
What products can the automatic checkweigher inspect?
It is suitable for bottles containing tablets, capsules, softgels, gummies, and other pharmaceutical, nutraceutical, or healthcare products. The system handles various bottle shapes and sizes with quick recipe changeover.
How accurate is the automatic checkweigher?
The weighing accuracy depends on the product weight, bottle size, conveyor speed, and application requirements. We can recommend the appropriate model and configuration based on your specific production needs and tolerance requirements.
Does the machine automatically reject non-conforming bottles?
Yes. The system is equipped with an automatic air jet rejection device that removes bottles falling outside the acceptable weight range without interrupting the production flow, ensuring consistent product quality.
Is the machine easy to operate and maintain?
Yes. The machine features a user-friendly 7-inch touchscreen interface with multi-language support, simple parameter settings, password-protected management access, and a hygienic design for easy cleaning and routine maintenance.
