60-70 Bottles/Min Tablet Counting Line Capsule Counting Machine System CE
60-70 Bottles/Min Tablet Counting Line Capsule Counting Machine System CE
Specifications
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Place of Origin :
Shanghai,China
Brand Name :
TIWIN INDUSTRY
Stations :
7 (unscramble, count, desiccant, cotton, cap, seal, label)
Model Number :
TW-C121
MOQ :
1 Set
Control :
Master PLC with synchronized HMI
Userinterface :
Touchscreen HMI
Supply Ability :
10 Sets per Month
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Certification :
CE
Compliance :
GMP, CE
Desiccant type :
Cylindrical canister
Suitable bottles :
Round, oblate, square, oblate square
Delivery Time :
20 business days
Industry :
Pharmaceutical,food,nutrition
Payment Terms :
T/T
Packaging Details :
Multiple fumigation-free export-grade plywood cases with container consolidation
Line speed :
60-70 bottles per minute
Description
Complete Tablet Counting Line with Cylindrical Desiccant Insertion TW-C121
This complete tablet counting and bottling line integrates the TW-C121 Cylindrical Desiccant Insertion Machine as a core moisture protection station within a fully synchronized packaging system. The line combines automatic bottle unscrambling, electronic tablet counting and filling, cylindrical desiccant canister insertion, cotton insertion (optional), automatic capping, induction sealing, and labeling into one seamless operation—delivering finished, moisture-protected, sealed, and labeled bottles ready for secondary packaging.
Designed for pharmaceutical, nutraceutical, and health supplement manufacturers requiring end-to-end tablet packaging with integrated desiccant protection, this complete line operates at 60-70 bottles per minute with a single PLC master control synchronizing all stations. The TW-C121 desiccant insertion module uses rotary turntable hole-position feeding to insert one cylindrical desiccant canister into each bottle, with no-bottle-no-insertion protection and missed-insertion detection maintaining 100% quality assurance.
Line Configuration
Station 1 Automatic bottle unscrambler
Station 2 Electronic tablet counting and filling machine

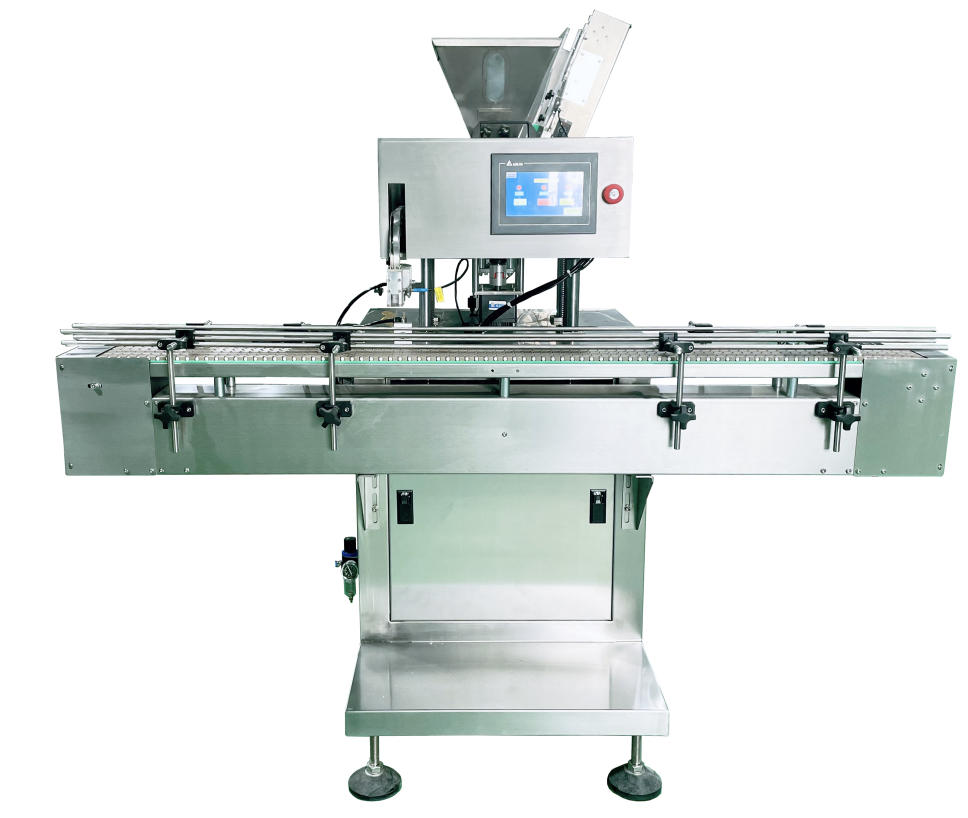

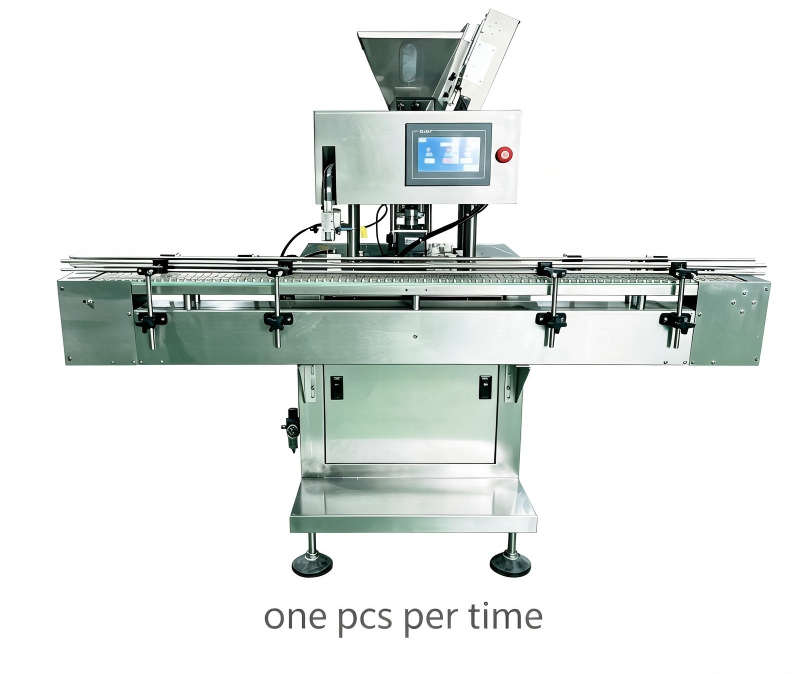

Station 3 TW-C121 cylindrical desiccant canister insertion machine
Station 4 Cotton insertion machine (optional)
Station 5 Automatic screw capping machine
Station 6 Induction sealing machine

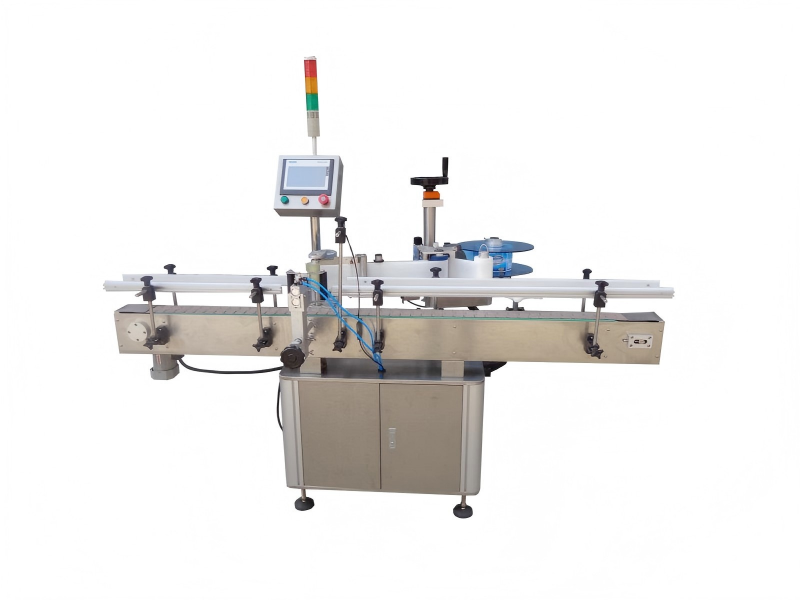

Station 7 Automatic labeling machine
Technical Specifications
Model TW-C121
Application Complete tablet counting line with integrated desiccant insertion
Line Speed 60-70 bottles/minute
Suitable Bottles Round, oblate, square, oblate square
Desiccant Type Cylindrical canister (silica gel, molecular sieve, carbon)
Voltage AC220V 50Hz (customizable to 3-phase)
Air Source 0.6 Mpa
Total Line Length Approx. 8-12m (configurable layout)
Control System Master PLC with synchronized HMI for all stations
Compliance GMP, CE certified
Key Features
  • Complete Turnkey Solution: From empty bottle to labeled, sealed, and desiccant-protected finished product—single-source responsibility for the entire tablet packaging line.
  • Integrated Desiccant Protection: TW-C121 desiccant insertion station automatically places one cylindrical canister into each bottle between counting and capping, ensuring moisture protection without manual intervention.
  • Single Master PLC Control: One touch screen controls and monitors all stations with synchronized speed, production counting, and unified alarm management—no separate controllers to coordinate.
  • 100% Quality Assurance: Each station includes verification sensors: counting accuracy, desiccant presence, cap torque, seal integrity, and label placement—with automatic reject at any failure point.
  • Scalable Configuration: Modular design allows addition of cotton inserter, nitrogen flushing, checkweigher, and cartoning modules as production requirements grow.
  • Fast Installation: Pre-assembled and factory-tested modules with plug-and-play connections reduce on-site installation to 3-5 working days.
