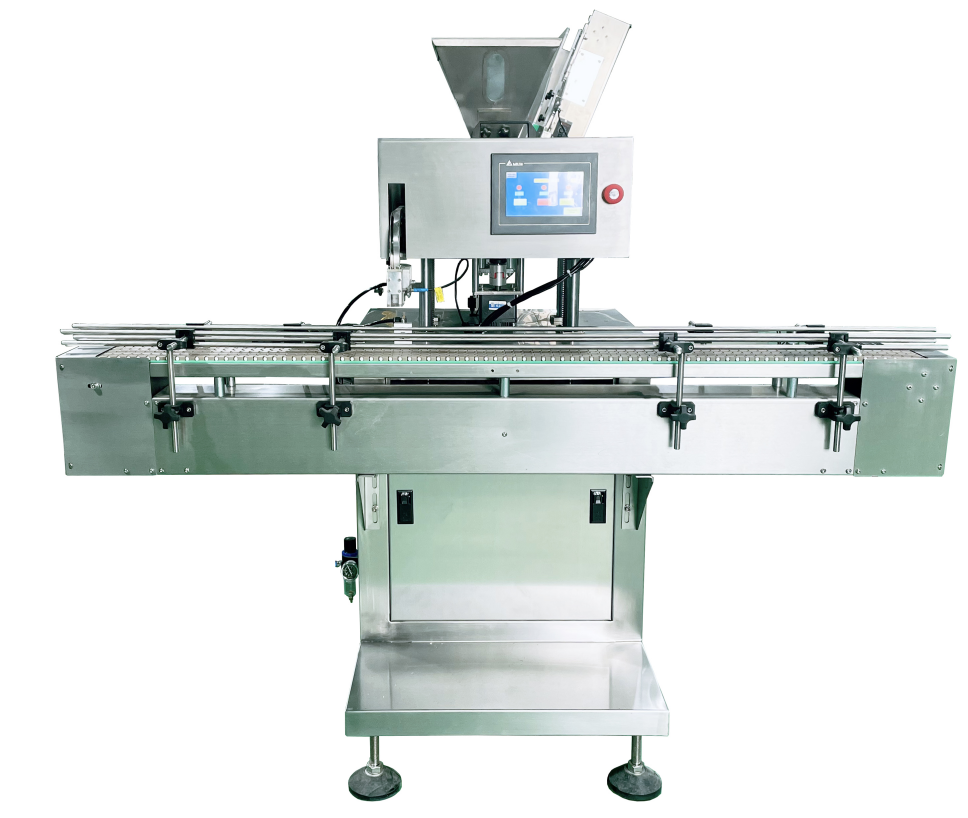

Cylindrical Desiccant Inserter Machine 60-70 Pcs/Minute
Cylindrical Desiccant Inserter Machine 60-70 Pcs/Minute
Specifications
Model Number :
TW-C121
With Conveyor :
Yes
MOQ :
1 Set
Net weight :
280kg
Userinterface :
Touchscreen HMI
Delivery Time :
20 business days
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Payment Terms :
T/T
Feature :
Cylindrical Desiccant Insertion Machine
Certification :
CE
Capacity :
60-70 pcs/minute
Packaging Details :
Fumigation-free plywood
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Brand Name :
TIWIN INDUSTRY
Suitable for desiccant type :
Cylindrical Desiccant
Place of Origin :
Shanghai,China
Machine dimension :
1800×1350×1600mm
Industry :
Pharmaceutical,food,nutrition
Description
Cylindrical Desiccant Insertion Machine
The bottle-stopping cylinder on the bottle-feeding track of the bottle conveying mechanism blocks the bottles transferred from the upper equipment to the position where the desiccant is filled, waiting for the desiccant to be filled, and the bottle mouth is aligned with the discharge port. The turntable rotates and the desiccant particles are immediately transferred into the bottle. The conveyor belt of the bottle conveying mechanism transports the loaded desiccant bottles to the next equipment. At the same time, the bottles to be filled with desiccant are replenished to the position where the desiccant is filled.
Technical Specifications
Suitable for bottles Round, oblate, square, oblate square bottles
Suitable for desiccant type Column desiccant
Capacity 60-70 bottles/minute
Voltage and power AC220V 50Hz 0.5kw
Gas source 0.6Mpa
Machine dimension 1800×1350×1600mm
Net weight 280kg
Key Features
  • Strong compatibility, suitable for round, oblate, square, and oblate bottles of various specifications and materials
  • Adopt hole position feeding method
  • Adapt to bottle counting and bottling of various specifications
  • PLC and touch screen control, stable and reliable
  • Multiple monitoring and alarm control functions including no operation without bottle, fault self-check, and desiccant bag not inserted into the bottle to ensure continuous equipment operation and accurate desiccant insertion
  • Fully automatic operation with intelligent joint control with upper and lower processes, good coordination, no need for special personnel to operate, saving labor
