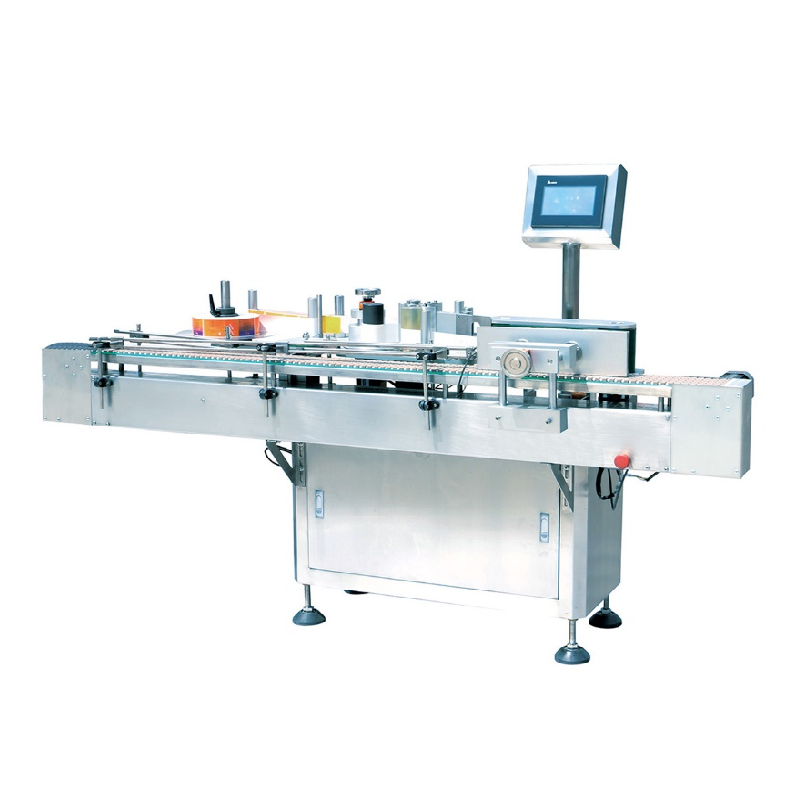

AUTOMATIC ROUND BOTTLE LABELING MACHINE
AUTOMATIC ROUND BOTTLE LABELING MACHINE
Specifications
Model Number :
TWL100
Powersupply :
220V/380V, 50Hz/60Hz
Payment Terms :
T/T
Operation method :
By touch screen
Packaging Details :
Fumigation-free plywood
Conveyor height :
Can be customized
Delivery Time :
20 business days
Features :
Automatic round bottle labeling machine
Certification :
CE
Maintenance :
Easy maintenance with modular design
Industry :
Pharmaceutical,food,nutrition
Material :
SUS304 stainless steel
Label size range :
L.300mm H.100mm
Userinterface :
Touchscreen HMI
Afrer sale service :
24hours in 7 days online support
Place of Origin :
Shanghai,China
Brand Name :
TIWIN INDUSTRY
Customizationoptions :
Available based on product and packaging requirements
Speed :
30-80 bottles per minute
Description
AUTOMATIC ROUND BOTTLE LABELING MACHINE
The Round Bottle Labeling Machine is an advanced automatic labeling solution designed for precise application of self-adhesive labels on cylindrical containers. It is widely used in modern packaging production lines to improve efficiency, consistency, and product appearance.
The bottles are conveyed through the bottle feeding track and are evenly spaced by the bottle spacing adjustment mechanism. When a photoelectric sensor detects a passing bottle, it sends a signal. The transmission system receives the signal and starts label feeding, while the tensioning system ensures proper tension of the label web. The labels then pass through the coding machine for printing. The label positioning photoelectric sensor positions the labels according to their length, ensuring that each label is dispensed with consistent length. Under the action of the labeling unit and the pressing unit, the label is automatically peeled off and smoothly applied to the required position on the bottle, thus completing the entire labeling process.
Technical Specifications
Model TWL100
Capacity (bottles/minute) 30-80 (according to bottles)
Max. Label length (mm) 300
Max. Label height (mm) 100
Suitable for bottle size range Bottle diameter less than 110mm
Power (kw) 1.1
Compressed air (Mpa) 0.6
Voltage 220V/1P 50Hz
Machine dimension (mm) 1650*800*900
Weight (Kg) 220
Key Features
  • Strong compatibility suitable for all kinds of round bottles
  • Tensioning design ensures quality coding and accurate label length control
  • Pre-placement label system ensures stable output and high positioning accuracy
  • Different label rolling methods for different bottle types
  • High-speed automatic labeling system
  • Accurate label positioning with minimal error
  • Compatible with different bottle diameters and label sizes
  • Easy adjustment for quick production changeover
  • Smooth labeling without bubbles or wrinkles
  • Durable stainless steel frame for long service life
  • PLC control system with touch screen operation
  • Can be integrated into production lines
Frequently Asked Questions
What types of bottles can this machine label?
The machine is suitable for various round bottles, including plastic, glass, and metal containers. It can handle different diameters and heights with easy adjustment.
Can the machine work with different label sizes?
Yes. The labeling system is adjustable and supports a wide range of label sizes. Custom configurations are also available based on your production requirements.
Is the machine fully automatic or semi-automatic?
Fully automatic.
How accurate is the labeling process?
The machine adopts advanced positioning control to ensure high labeling accuracy, typically within ±1mm, depending on bottle and label conditions.
Is it easy to operate the machine?
Yes. The machine is designed with a user-friendly control panel (PLC touch screen), making operation simple and training time short.
Can it be integrated into a production line?
Yes. The machine can be connected with filling, capping, and packaging machines to form a complete automatic production line.
Does it support printing functions?
Optional for ribbon printer.
What industries use this machine?
It is widely used in food & beverage, cosmetics, daily chemicals, and health care industries.
What is the delivery time?
Standard models usually take 7-15 working days.
Do you provide installation and training?
Yes. We provide operation manuals, installation guidance, and remote technical support. On-site service can also be arranged if required.
