Automatic Capping Machine for Counting & Bottling Line
Automatic Capping Machine for Counting & Bottling Line
Specifications
Model Number :
TW-D902
Payment Terms :
T/T
Capacity :
50-120 bottles per minute
Packaging Details :
Fumigation-free plywood
Service :
24 hours in 7 days online support
Delivery Time :
20 business days
Features :
Automatic Capping Machine
Customizationoptions :
Available based on product and packaging requirements
Material :
SUS304 stainless steel
Conveyor height and length :
Can be customized
Maintenance :
Easy maintenance with modular design
Userinterface :
Touchscreen HMI
Afrer sale service :
24hours in 7 days online support
Certification :
CE
Industry :
Pharmaceutical,food,nutrition
Place of Origin :
Shanghai,China
With AUTO caps feeding unit :
Yes
Powersupply :
220V/380V, 50Hz/60Hz
Brand Name :
TIWIN INDUSTRY
Description

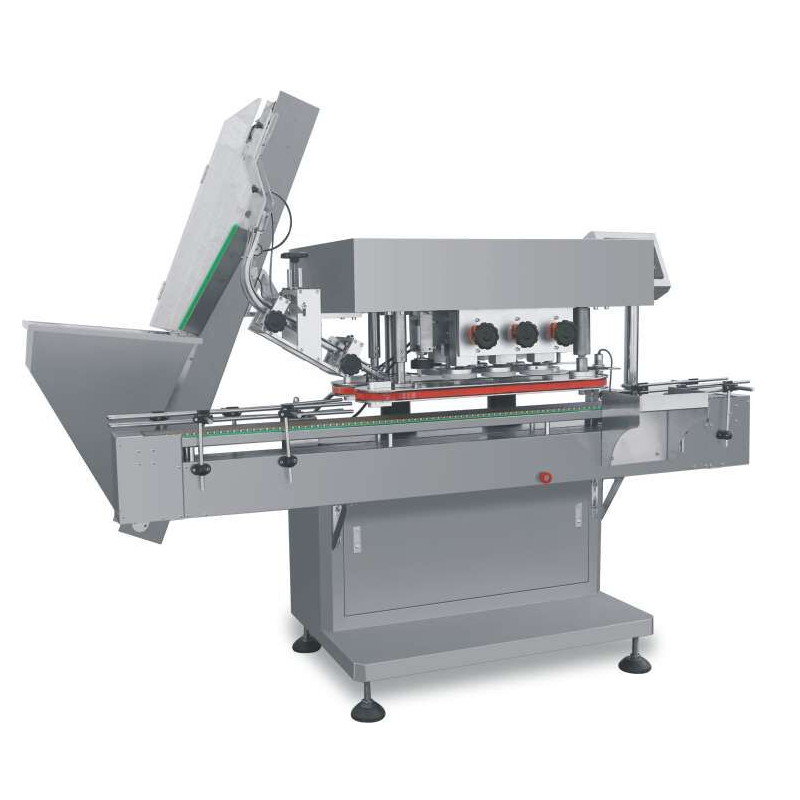

Automatic Capping Machine for Counting & Bottling Line

This fully automatic capping machine with conveyor belt integrates seamlessly with automatic bottle lines for tablets and capsules. The complete working process includes feeding, cap unscrambling, cap conveying, cap putting, cap pressing, cap screwing, and bottle discharging.

Designed in strict accordance with GMP standards and technological requirements, this machine delivers optimal cap screwing performance with maximum accuracy and efficiency. The main drive components are housed within the electric cabinet to prevent material contamination from drive mechanism wear.

Technical Specifications
Model TW-D902
Output 50-120 bottles/minute
Requirement of bottle body diameter By customized
Requirement of bottle height By customized
Voltage 220V/1P 50Hz
Power 1.8kw
Gas source 0.6Mpa
Machine dimensions (L×W×H) 2,550x1,050x1,900mm
Machine weight 720kg
Key Features
  • Capping system utilizes 3 pairs of friction wheels, allowing arbitrary adjustment of tightness while minimizing lid damage
  • Automatic rejection function for improperly placed or skewed lids
  • Compatible with various bottle types and sizes
  • Quick and easy adjustment for different bottle or lid sizes
  • PLC and inverter control system for precise operation
  • GMP compliant design and manufacturing
Frequently Asked Questions
What types of caps can the capping machine handle?
The machine is suitable for various cap types, including screw caps, flat caps, ribbed caps, and child-resistant caps (optional). Customized solutions are available according to bottle and cap specifications.
What bottle sizes are compatible with the capping machine?
The machine supports multiple bottle diameters and heights. Bottle changeover can be completed quickly with simple adjustments or optional change parts.
Can the capping machine be integrated into a counting and bottling line?
Yes. The capping machine can be integrated with tablet/capsule counting machines, desiccant inserters, cotton inserters, induction sealers, labeling machines, and collection tables to create a fully automatic counting and bottling line.
What is the production capacity of the capping machine?
Production capacity depends on bottle size, cap type, and line configuration. Standard output can be customized to match different production requirements.
Does the machine support automatic cap feeding?
Yes. The machine is equipped with an automatic cap sorting and feeding system to ensure continuous operation and reduce manual labor.
How does the machine ensure accurate cap tightening?
The machine uses torque-controlled capping technology to provide stable and consistent tightening performance while minimizing cap damage and bottle deformation.
Is the machine suitable for pharmaceutical production?
Yes. The machine is designed in compliance with GMP requirements and is suitable for pharmaceutical, nutraceutical, healthcare, and food production environments.
Can the machine detect missing caps or incorrect capping?
Optional inspection functions are available, including cap detection, missing cap alarm, rejected bottle output, and automatic shutdown for abnormal conditions.
Is the machine easy to operate and maintain?
Yes. The machine features PLC control with a touchscreen interface for easy operation, parameter setting, and maintenance.
How long does it take to change bottle formats?
The quick-adjust design allows fast changeover between different bottle sizes, reducing production downtime.
