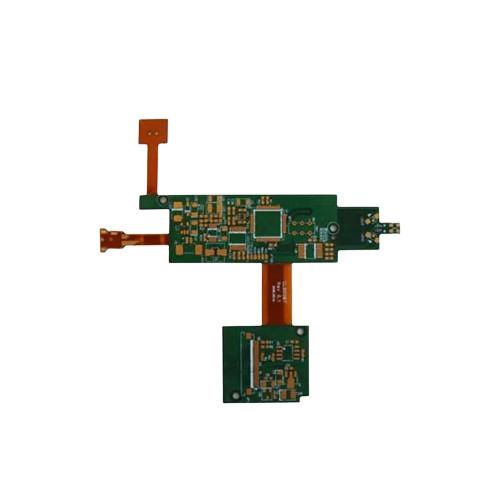

Stable Performance ENIG Rigid-Flex PCB Consumer Electronics

♦ What is Rigid-Flex PCB?

Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.

♦ Features of Rigid-Flex PCB

• • ​​Flexible design: 3D stereo wiring replaces traditional cables, saves space, and improves integration.
  • ​​Rigid-flexible complementarity: The rigid part provides support, and the flexible part adapts to bending and folding to cope with complex environments.
  • ​​Stable performance: Excellent electrical transmission, good heat dissipation, vibration resistance, corrosion resistance, and high reliability.
  • ​​Efficient wiring: High-density multi-layer design to meet the needs of complex circuits.
  • ​​Widely used: Covering aerospace, medical, automotive, consumer electronics and other fields.
  • ​​Reduce failures: Reduce problems with welding points and cable connections, and improve product stability.
  • ​​Strong impact resistance: Resistant to high stress, suitable for harsh scenarios such as vibration and collision.

♦ Applications of Rigid-Flex PCB

• • ​​Consumer electronics​​: smartphones (internal connections of folding screens), wearable devices (circuits inside smartwatch straps), tablet computers (circuit boards at hinges);
  • Industrial and medical​​: industrial sensors (detection modules that need to be bent and installed), medical implants (internal circuits of pacemakers), avionics equipment (control modules that need to resist vibration);
  • Automobile and transportation​​: battery management systems for new energy vehicles (BMS, adapted to complex battery pack layouts), on-board displays (foldable or curved screen connections), autonomous driving sensors (dynamic bending requirements);
  • ​Military and aerospace​​: satellite communication equipment (needs to be lightweight and radiation-resistant), aircraft control circuit boards (adaptable to high-vibration environments).

♦ Technical Parameters

Item	Spec
Layers	1~64
Board Thickness	0.1mm-10 mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc
Max Panel Size	800mm×1200mm
Min Hole Size	0.075mm
Min Line Width/Space	Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance	士0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	17um--175um
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	17:01
Solder Mask Type	LPI
SMT Min. Solder Mask Width	0.075mm
Min. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm

♦ One-Stop PCBs Solution

PCB Prototype	Felx PCB	Rigid-Flex PCB	Ceramic PCB
Heavy Copper PCB	HDI PCB	High Frequency PCB	High TG PCB

♦ Advantages of DQS Team

1. On-time Delivery:

• • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines

2. Quality Guaranteed:

• • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%

3. Premium Service:

• • 24H reply your inquiry
  • Perfect after-sales service system
  • From prototype to mass production
