Customized Double-Sided Rigid-Flex PCB Boards Service

♦ What is Rigid-Flex PCB?

A ​​Rigid-Flex PCB​​ is a hybrid circuit board that combines ​​rigid​​ and ​​flexible​​ substrates into a single structure. It consists of multiple layers of rigid PCBs connected by flexible circuits, allowing for ​​3D bending, folding, and dynamic movement​​ while maintaining electrical connections.

♦ Structure of a Rigid-Flex PCB​?

    1. ​​Rigid Sections​​
      • Made of FR-4 or other rigid materials.
      • Houses components (ICs, resistors, connectors).
    2. ​​Flexible Sections​​
      • Made of polyimide (e.g., Kapton) for bendability.
      • Thin copper traces for conductivity.
    3. ​​Adhesive/Bonding Layers​​
      • Holds rigid and flex layers together.
    4. ​​Coverlay​​
      • Protective coating (like solder mask) for flex areas.

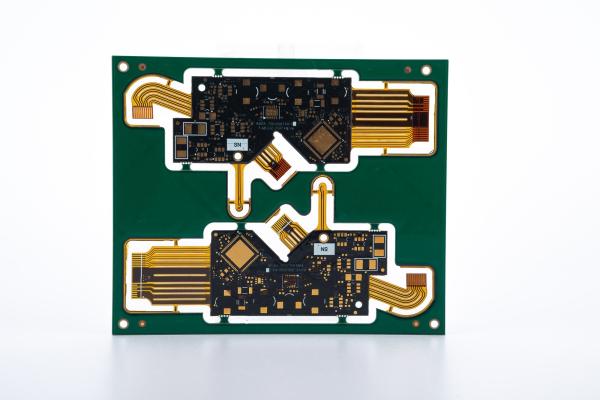

Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized

♦ Technical Parameters

Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm) Advance: 2mil

Board Outline Tolerance

士0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm

♦ One-Stop PCBs Solution

Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized
PCB Prototype Felx PCB Rigid-Flex PCB Ceramic PCB
Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized Double Sided Fr4 Rigid Flex PCB Fabrication 1.0mm circuit Boards Customized
Heavy Copper PCB HDI PCB High Frequency PCB High TG PCB

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
