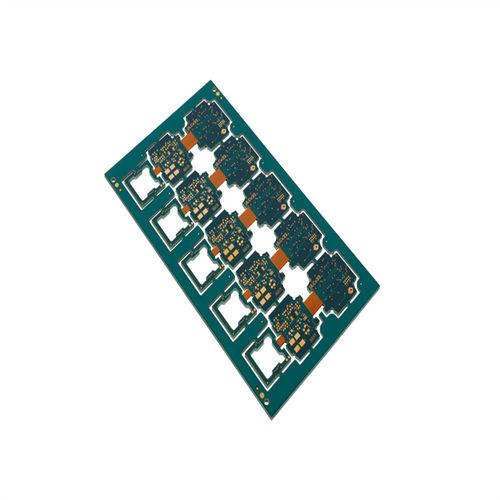

Lightweight Rigid-Flex PCB Stable Performance Smart Watch PCB Board

♦ What is Rigid-Flex PCB?

Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.

♦ Features of Rigid-Flex PCB

• • Rigid-flexible combination: the rigid part supports the core components, and the flexible part is bent.

  • ​​Space saving: replace the cable and reduce the size of the device (suitable for thin and light design).

  • ​​High bending resistance: the flexible part can be bent repeatedly (millions of times of life).

  • ​​Signal stability: the rigid part ensures high-speed signal transmission and reduces interference.

  • ​​Strong reliability: anti-vibration, high temperature resistance, and adaptable to complex environments.

  • Simplified assembly: integrated design, reducing welding points and reducing costs.

♦ Applications of Rigid-Flex PCB

• • Automotive electronics: vehicle electronic systems, instrument panels, navigation systems, vehicle entertainment systems, new energy vehicle battery management systems, etc., adapt to complex space layouts and vibration environments.
  • Industrial control: PLC controllers, robot control systems, sensor interfaces, industrial automation equipment, etc., to ensure stable operation of equipment in harsh environments.
  • Communication field: 5G base stations, satellite communication equipment, etc., provide stable and high-speed signal transmission.

♦ Technical Parameters

Item	Spec
Layers	1~64
Board Thickness	0.1mm-10 mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc
Max Panel Size	800mm×1200mm
Min Hole Size	0.075mm
Min Line Width/Space	Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance	士0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	17um--175um
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	17:01
Solder Mask Type	LPI
SMT Min. Solder Mask Width	0.075mm
Min. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm

♦ One-Stop PCBs Solution

PCB Prototype	Felx PCB	Rigid-Flex PCB	Ceramic PCB
Heavy Copper PCB	HDI PCB	High Frequency PCB	High TG PCB

♦ Advantages of DQS Team

1. On-time Delivery:

• • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines

2. Quality Guaranteed:

• • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%

3. Premium Service:

• • 24H reply your inquiry；
  • Perfect after-sales service system；
  • From prototype to mass production
