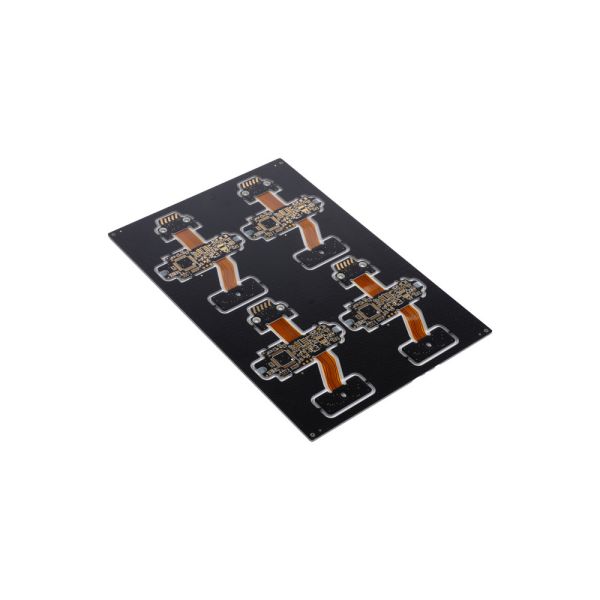

4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board
4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board
Specifications
MOQ :
1
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
200,000+ m² PCB per Month
Layer :
6 layers
Material :
Fr4+PI
Thickness :
2.0mm
Construction :
2+N+2
Min. Line Width/Space :
0.1/0.1mm
Surface Treatment :
Immersion Gold
Type :
Customizable
Application :
Electronic Products
Standard :
UL&IPC Standard &ISO
Description
4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board
What is HDI PCBs?

HDI PCB (High-Density Interconnect Printed Circuit Board) is a circuit board built with very fine lines/spaces (≤ 100 µm), micro-vias (≤ 150 µm), blind/buried vias, and often sequential lamination or laser-drilled stacked vias, so that more components and routing can fit in a smaller area. The result is thinner, lighter boards with higher I/O counts, shorter signal paths and better electrical performance--ideal for smartphones, tablets, medical implants, IoT modules and any application demanding miniaturization and high speed.

HDI Board Classification
  • 1st-order (1+N+1) - one build-up layer per side; only one laser-drill step is needed.
  • 2nd-order (2+N+2) - two build-up layers per side; requires two laser-drill and lamination cycles (can be staggered or stacked micro-vias).
  • 3rd-order (3+N+3) - three build-up layers per side; three sequential drilling/lamination cycles.
  • Any-layer (ELIC) - every adjacent pair of layers can be interconnected with laser micro-vias, giving the highest density and no fixed "order" limit.
4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board
Technical Parameters
Item Spec
Layers 1~64
Board Thickness 0.1mm-10 mm
Material FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc
Max Panel Size 800mm×1200mm
Min Hole Size 0.075mm
Min Line Width/Space Standard: 3mil(0.075mm) Advance: 2mil
Board Outline Tolerance ±0.10mm
Insulation Layer Thickness 0.075mm--5.00mm
Out Layer Copper Thickness 18um--350um
Drilling Hole (Mechanical) 17um--175um
Finish Hole (Mechanical) 17um--175um
Diameter Tolerance (Mechanical) 0.05mm
Registration (Mechanical) 0.075mm
Aspect Ratio 17:01
Solder Mask Type LPI
SMT Min. Solder Mask Width 0.075mm
Min. Solder Mask Clearance 0.05mm
Plug Hole Diameter 0.25mm--0.60mm
One-Stop PCBs Solution
4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board 4 Layer Rigid PCB + 2 Layer Flex PCB HDI PCB Board
