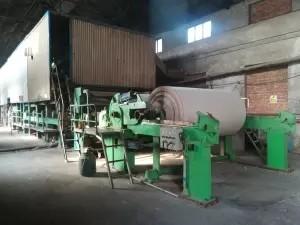

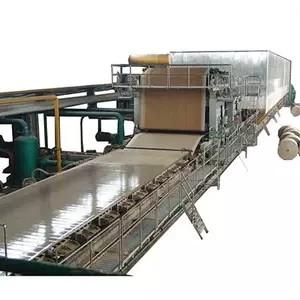

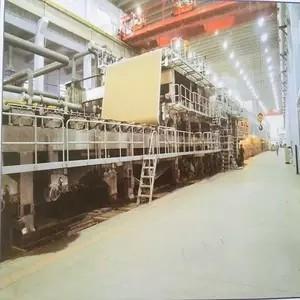

80GSM Double Wire Kraft Paper Making Machine 400m/Min
80GSM Double Wire Kraft Paper Making Machine 400m/Min
80GSM Double Wire Kraft Paper Making Machine 400m/Min
80GSM Double Wire Kraft Paper Making Machine 400m/Min
80GSM Double Wire Kraft Paper Making Machine 400m/Min
80GSM Double Wire Kraft Paper Making Machine 400m/Min
Specifications
Brand Name :
HAIYANG
Model Number :
2800mm
Certification :
CE
Place of Origin :
Henan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per year
Delivery Time :
3-6months
Packaging Details :
Wooden Case and Plastic Film
name :
Kraft Paper Making Machine
Material :
Waste paper ,wood pulp,carton box
Condition :
New
Capacity :
200T/D(24 hours)
Working speed :
400m/Min
Finished products :
Kraft paper, Colorful Paper Cup, cardboard paper machine, paper board, Paper drinking straw
Description

80GSM Double Wire Brown Kraft Paper Roll High Quality 1575 mm Kraft Paper Making Machine

Product Description

This paper making machinery mainly used for produce kraft paper,basis weight 60-

220gsm. We supply complete kraft paper production line design,installation,commission

and training.

This machine can use different kinds of waste paper, recycled paper, virgin pulp, wheat

straw, sugar canebagasse, cotton, wood as as material to make kraft paper, finished

product can be jumbo paper roll.



Technical parameters

Main products Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper
Test liner Ration 90-150g / m2
Capacity 90-150g / m2
Net paper width 2800mm
Gross paper width 2860mm
Working speed 50-100 m / min
Design speed 100 m / min
Gauge 3000mm
Roll of dynamic balance G2.5
Drive mode AC motor variable frequency speed regulation segment drive
Paper machine layout form Single layer layout
Banner quantitative difference ≤±1.5%

Main Raw Material

Paper is sorted into different grades such as waste paper, old carton box, reed, wheat

straw, bamboo, bagasse, newspapers, duplex, white cutting, boards, core pipes, etc

suitable for manufacturing different grades of Fluting paper Corrugated Paper Testliner

Paper Kraft Paper Duplex Board Paper.


Main Equipment

Pulp Making Equipments

High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc

pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration

cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator

Paper Making Equipments


Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing

machine, Calender machine, Winding machine, Rewinder, Foundation frame
