Specifications
Brand Name :
haiyang
Model Number :
1500-4800
Certification :
iso
Place of Origin :
qinyang,henan
MOQ :
1 set
Price :
USD 0.2-2 million
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 SETS/MONTHS
Delivery Time :
50 days
Packaging Details :
WOODEN CASE
Name :
Corrugated Cardboard Line
Drive way :
AC variable frequency, section drive
Core Components :
PLC, Pressure vessel, engine, Gear, Motor, pump, Bearing, Gearbox
After sale service :
Free spare parts, Video technical support, Field installation
Description

Kraft Liner paper Corrugated Paper Making Machine For Sale

The kraft paper making machine is mainly used for making cardboard and corrugated base

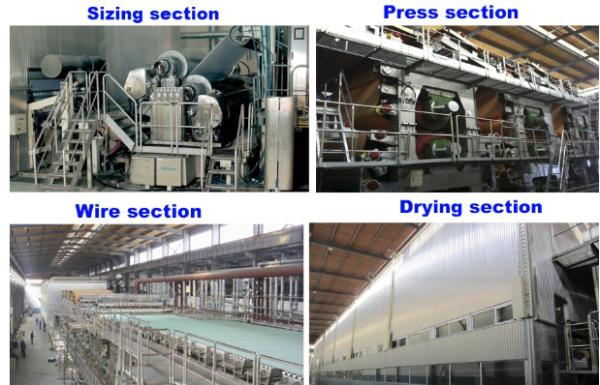

paper.Paper machine is consist of headbox, wire section, press section, front drying section,

oblique surface sizing machine, back drying section, calender section, reel section.

Technological process (take waste paper as example)

Waste paper---Pulping---Screening---Pulp washing---Defibrination---Rescreen---Size mixing

---Mixed pulp---Desander---upper wire---water absorption---Drying---Reeling---Slitting---Packing

---Storage

Daily capacity 15-20t/d
Drive way AC variable frequency, section drive
Power 220, 380v/50~60HZ
Pneumatic medium Compressed air 0.6 MPa,level 3 industrial compressed air standards
Steam 0.3MPa
Factory area 200--250m²
Raw material Rice straw, wheat straw, wood, waste paper, etc

All Equipments

NO. Item qty(set)
1 1092mm kraft paper making machine 1
2 double layer exhausted hood of dryer can 1
3 Φ700mm axial-flow ventilator 1
4 Model-13 Roots vacuum pump 1
5 cylinder vat 2

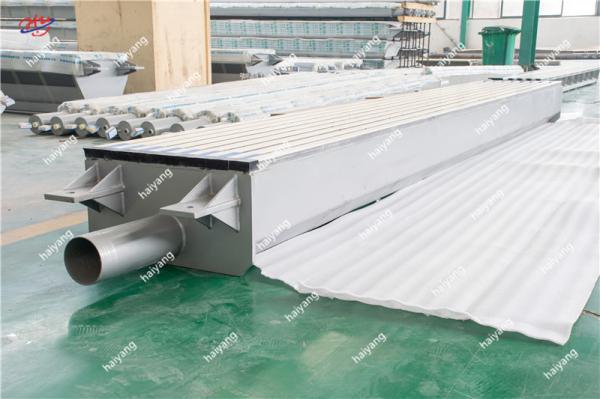

6 Suction box 2
7 3 m3high consistency hydrapulper 1
8 1.8m2 High frequency vibration screen 1
9 Φ380mm double disc pulp refiner 1
12 6 inch pulp pump 2
13 4 inch pulp pump 4
14 Φ700mmThruster 2
15 Model-600 sand remover 1group
16 IS125-100sand removing pump 1
17 8 m3cylinder thickener 1
18 1092mm winding machine 1
19 1092mm rewinding machine 1
20 inverter control cabinet 1
21 1ton boiler(burn coal) 1
