AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
AC 2880mm 22.5m Kraft Paper Making Machinery
Specifications
Brand Name :
haiyang
Model Number :
1500-4800
Certification :
iso
Place of Origin :
qinyang,henan
MOQ :
1 set
Price :
USD 0.2-2 million
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 SETS/MONTHS
Delivery Time :
25 DAYS
Packaging Details :
WOODEN CASE
product name :
paper making machine
processing type :
corrugated paper machine
after sales service :
Free spare parts, Field maintenance and repair service
raw material :
Waste paper,OCC
drive way :
AC Variable Frequency drive
Item :
Kraft Paper Making Machinery
Description

waste old carton box recycled craft paper making

machine/kraft paper making machine

Product Description

The machine will adopt the commodity wood pulp to produce Kraft paper.This production

line is composed of three components, namely pulping equipment,paper making machine

and finishing equipment.The details of name,quantity,unit price,total amount, matched motor

for each part of the production line.

Technical parameter:

1. Raw materials: recycled paper, wood pulp

2. Output paper: corrugated paper ;kraft paper ;liner paper

3. Output paper weight:70-150g/m2

4. Capacity: 80 T/D

5. Fourdrinier wire width:3350mm

6. Net paper width:2880mm

7. Drive way: Alternating current frequency converter speed control, sectional drive.

craft paper machine price

Main frame of equipments:

1. Fourdrinier part: 16m fourdrinier table, the frame coated by stainless steel.

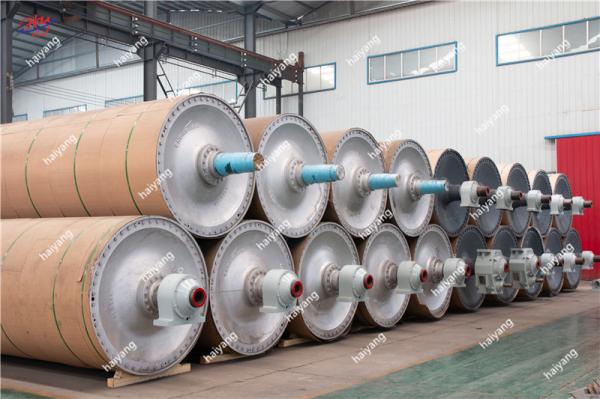

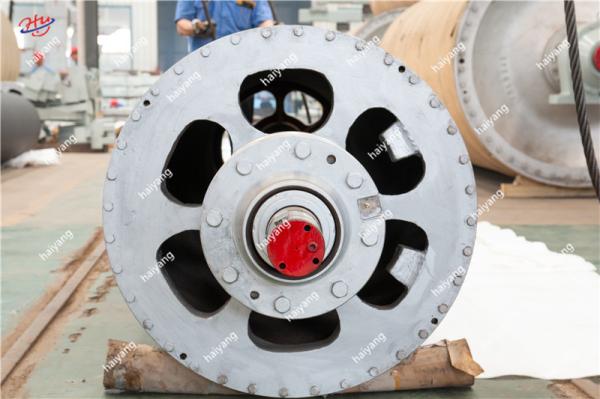

2. Dryer part: dryer cylinder 20 sets .

3. Calendaring part: three-roll calendar 1 set.

4. Winding and rewinding part: 1 set of Horizontal winding machine with winding

cylinder ,1 set of high duty frame type rewinding machine.

Main equipments of paper making machine:

NO. Item quantity(set)
1 2880mm Multi-cylinder Fourdrinier paper making machine 1
2 Dryer part exhaust hood 1
3 Propeller fan 4

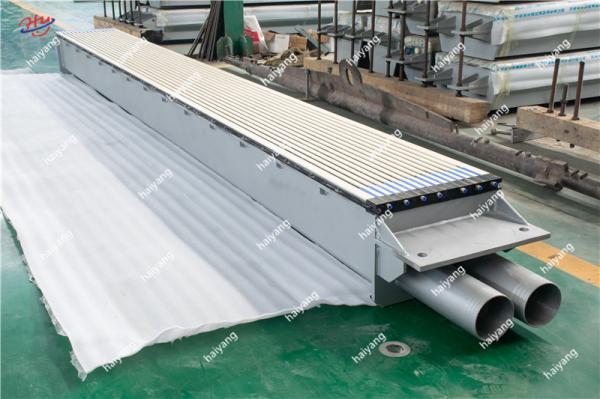

4 Vacuum suction box 9
5 2880mm three-roll calendar 1
6 2880mm Horizontal winding machine 1
7 2880mm Frame type rewinding machine 1
8 Air compressor 1
9 Air tank 1
10 Frequency conversion controlling cabinet 1
11 Automatic quantitative scanner 1
12 The whole set of working platform

AC 2880mm 22.5m Kraft Paper Making Machinery

AC 2880mm 22.5m Kraft Paper Making Machinery

AC 2880mm 22.5m Kraft Paper Making Machinery
