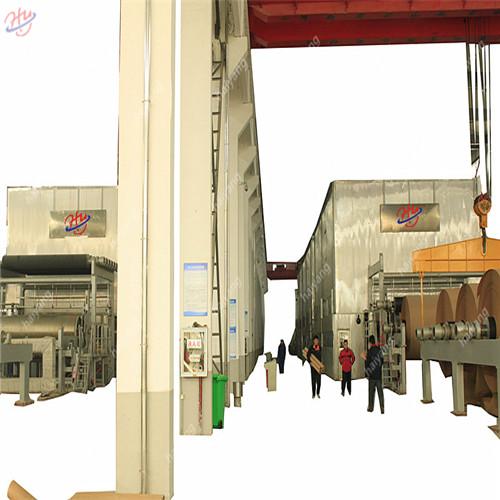

Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery
Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery
Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery
Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery
Specifications
Brand Name :
HAIYANG
Model Number :
2100MM
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
$200000-2000000 1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40 SETS PER YEAR
Delivery Time :
90 DAYS
Packaging Details :
EXPORT STANDARD PACKAGE
Raw material :
waste paper, old carton box, wood, straw
Net paper width :
2100mm
Capacity :
50 T/D
Working speed :
100-250m/min
paper weight :
80-200gsm
Design speed :
280m/min
width of wire :
2500mm
Center to center :
2900mm
Description

Kraft paper or kraft is paper or paperboard (cardboard) produced from chemical pulp produced

in the kraft process.The grammage of kraft paper is normally 80～120g/m2.Kraft paper is used

for packing or shopping bags. The pulp produced by the kraft process is stronger than that made

by other pulping processes. We manufacture a wide range of kraft paper machine,the paper

width up to 5200mm,speed up to 600m/min,capacity up to 500 t/d.

1 Output paper kraft corrugated paper, testl iner paper,fluting paper
2 Raw material waste paper, old carton box, wood pulp, straw
3 Capacity 50T/d
4 paper weight 80-200G/M2
5 Net paper width

2100mm

(adjust according to clients’ requirement)
6 Rail space 2900mm
7 Working Speed

100-250m/min
8 Design Speed 280m/min
9 Drive and control Alternating current, frequency conversion, speed control, section drive ;

Properties

No Name Function
1 Paper machine Produce paper
2 dryer To dry the paper web
3 Exhaust hood To keep the steam
4 Felt To induct the paper web
5 Axial-flow ventilater Remove the steam
6 Foundation plate To support the whole paper machine
7 Frequency inverter Adjust the frequency and control the electricity

Output Paper

Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery

Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery

Testliner Paper 2100mm 50 T/D 280m/Min Kraft Paper Making Machinery
