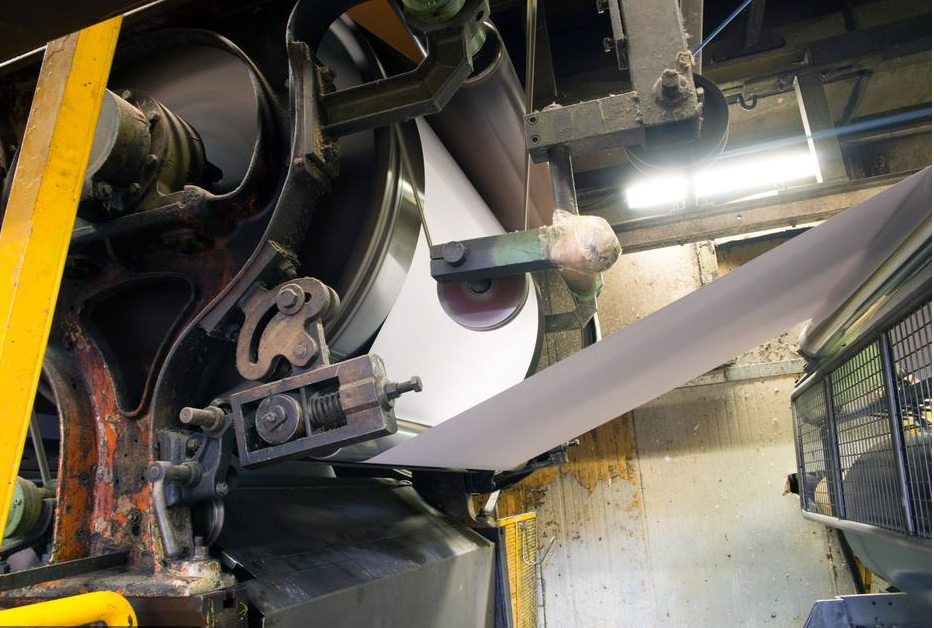

10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
10T/D Yarn Tube Kraft Paper Making Machinery Corrugated For Mill Production
Specifications
Brand Name :
HAIYANG
Model Number :
2400mm
Certification :
CE
Place of Origin :
Henan, China
MOQ :
1
Price :
$199000-200000 1set
Payment Terms :
L/C, T/T
Supply Ability :
10sets per year
Delivery Time :
3-6months
Packaging Details :
Wooden Case and Plastic Film
Name :
Kraft paper making machine
Material :
Waste paper ,wood pulp
Design Speed :
120m/min
Capacity :
10T/D(24 hours)
Brand :
Haiyang
Output paper :
Kraft paper, corrugated paper
Sheet Former Type :
fourdrinier wire
Description

Products Description

Yarn tube paper machine with small investment and high profit has received much reputation from our

previous customers. For paper mill production, the Kraft Paper Making Machinery are provided for your

paper mill production.

The yarn tube paper making machine adopts hanging pulp form sizing, mainly composed by blanket washing,

cylinder section, drying section, reeling, transmission, gas hood, etc. This equipment has the features of

quick speed, good paper quality,simple workers operation and workers no need long time training. Welcome

to contact us for your paper mill production.

Technical Specifications

1. Raw material:

 Waste paper,wood pulp,carton paper
2.Product Variety: Kraft paper ,corrugated paper
3.Paper width: 2400mm
4.Quantitative: 12-18g/㎡
5.Design speed 180m/min
6.Working speed 60-180m/min
7.Rail gauge: 3200mm
8.Transmission way: AC variable frequency,section drive
9.Arrangement: Fourdrininer
10.Capacity: 10T/D(24hours)
11.Output paper humidity: 4%~8%

Our Services & Strength

(1) professional engineer team with 30 years experience;

(2) we can supply turn-key solution without any trouble;

(3) we have strict quality control system and ensure there is no unqualified product;

(4) professional installation technician and clear technical training for your workers;

(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
