100M Ethernet and High Definition Video Slip Ring with 16 Power Transfer for Seamless Data and Power Transmission
100M Ethernet and High Definition Video Slip Ring with 16 Power Transfer for Seamless Data and Power Transmission
Specifications
Brand Name :
Panlink
Model Number :
PSR-K24-16S1E-2SDI
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Video Transmission :
2 HD-SDI Channle
Ethernet Transmission :
1 100M Ethernet Channel
Voltage Rating :
48VDC
Current Rating :
2A
Working Life :
5 million revolutions
Rotating Speed :
300rpm
Description

100M Ethernet And High Definition Video Slip Ring with 16 Power Transfer

PSR-K24-16S1E-2SDI

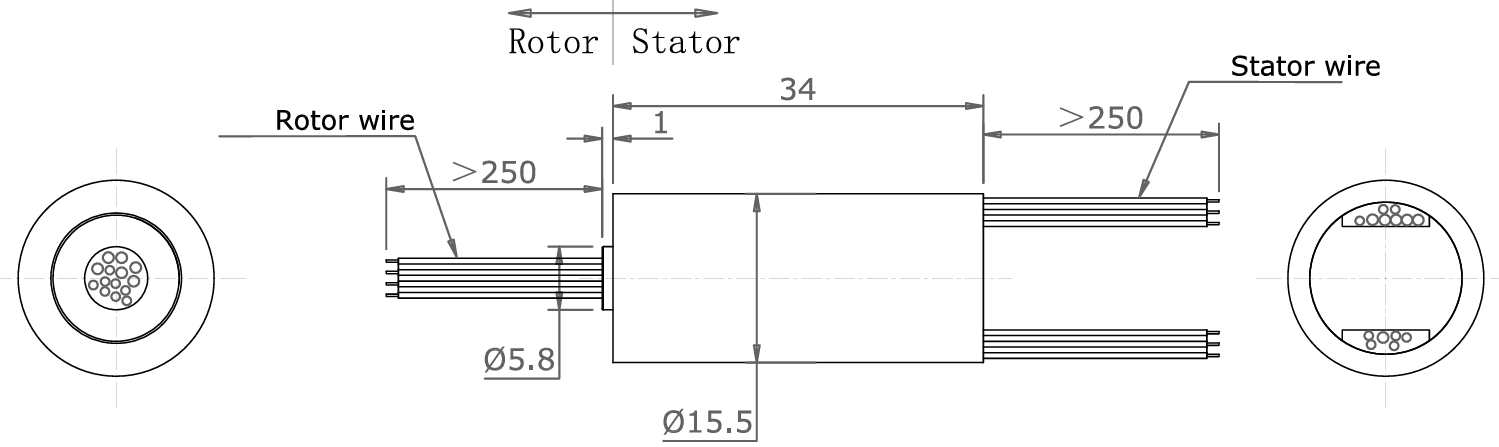

Dimensions in millimeters

100M Ethernet and High Definition Video Slip Ring with 16 Power Transfer for Seamless Data and Power Transmission

Specification

Channels 16 for Power Transmission, 1 for 100BaseT Ethernet Transmission, 2 for HD-SDI Transmission
Electrical Specifications
Voltage Rating 48VDC
Current Rating 2A
Insulation Resistance Max 50MΩ @ 500VDC
Dielectric Noise 200VAC @ 50Hz, 60s
Electric Noise Max 50mΩ
Lead Cable AWG30 Teflon, CAT5
Mechanical Specifications
Working Life 5 million revolutions
Rotating Speed 300rpm
Operating Temperature -40℉ to +176℉ (-40℃ to +80℃)
Storage Temperature -40℉ to +176℉ (-40℃ to +80℃)
Operating Humidity 0~95%RH
Torque 40gf.cm
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP51(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
