IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance
IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance
Specifications
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Lifetime :
10 million revolutions
Contact Material :
Gold-Gold
Housing Material :
Aluminum Alloy
Protection Level :
IP51 (IP66 Optional)
Name :
High Definition Slip Ring
Price :
Negotiable
Delivery Time :
4 Weeks
Supply Ability :
40 Million a Year
Description

High Definition Slip Ring With Zero-Latency, Distortion-Free HD Signal Transmission And Suitable For Surveillance, Broadcasting And Film/Video Equipment

High Definition Slip Ring with Zero-latency, Distortion-free HD Signal Transmission and Suitable for Surveillance, Broadcasting and Film/Video Equipment

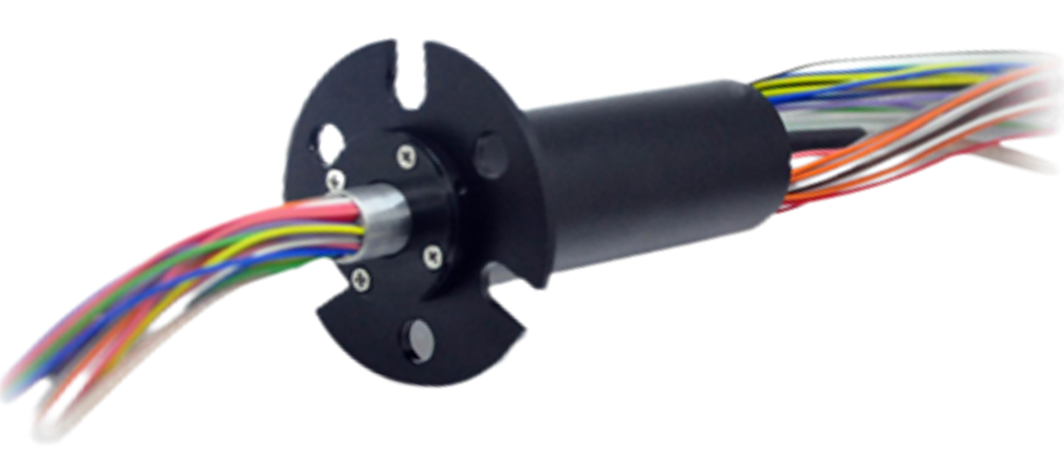

Panlink high-definition video slip rings are to provide HD-SDI video communication in combination with power and data connections from a stationary part to a rotating part, they provide a 360° free interface solution for television, broPSR-Cast, surveillance and VR systems etc.

Utilizing RF and gold on gold fiber brush contact technology, PANLINK HD-SDI slip rings feature very stable HD-SDI and 3G-SDI video transmission capability, superior electrical performance, compact and robust configuration. The coax cable is easily to terminate with a BNC/SMA connector for installation. 50/75ohm coax is available. Our existing units include 1 and 2 channels HD-SDI slip rings, electrical wires up to 56, a combination of one or two Ethernet channels is available.

IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance

Main Application
• Motion control
• Rotating high definition video displays
• High definition video security
• Pan / tilt systems
• Camera jibs

Feature

• Compatible with:

-SMPTE 259 M (SD-SDI, 270Mbps)

-SMPTE 292 M (HD-SDI, 1.485Gbps)

-SMPTE 424 M (3G-SDI, 2.97Gbps)

• Available with various combinations of Ethernet,

5 amp and 10ampconnections

• Sealing to dust and light fluid splash available

• Gold on gold contact

• Low electrical noise, low drive torque

• Long lifetime and maintenance-free

Model Channels Current Rating

Voltage Rating

(VAC)

Size

(mm)

Speed

(rpm)
Electrical HD-SDI 100M Ethernet Gbit Ethernet 2A 5A OD L
PSR-C12-SDI 12 1 × 120 24.8 29.6 300
PSR-C18-SDI 18 1 × 120 22 28.8 300
PSR-C24-SDI 24 1 × 120 32.8 46.7 300
PSR-C36-SDI 36 1 × 120 22 70 300
PSR-C56-SDI 56 1 × 120 25.4 115 300
PSR-C14-SDI-E 14 1 1 × 120 22 28.8 300
PSR-C10-SDI-G 10 1 1 × 120 22 28.8 300
PSR-C32-SDI-E 32 1 1 × 120 22 70 300
PSR-C28-SDI-G 28 1 1 × 120 22 70 300
PSR-C56-2SDI 56 2 × 120 25.4 115 300
PSR-C48-2SDI-E 48 2 1 × 120 25.4 115 300
PSR-C44-2SDI-G 44 2 1 × 120 25.4 115 300
Remark: 5A or 10A current is optional, compatible with various communication protocols.

Specification
Voltage Rating 240VAC/ VCD
Current Rating 2A per circuit
Insulation Resistance 500MΩ @ 500VDC
Electrical Noise 40mΩ max
Dielectric Strength 500VAC/ 50Hz/ 60s
Rotating Speed, Max 300rpm
Torque During Rotation, Max 50 g.cm @ room temperature
Life Time, Min 10 million revolutions
Contact Material Gold-Gold
Lead Wires 300mm AWG#28 Teflon Wires
Housing Material Aluminum Alloy
Working Temperature -40℃ to +80℃(-40℉ to +176℉)
Storage Temperature -45℃ to +85℃(-49℉ to +185℉)
Shock MIL-STD-810H
Protection Level IP51 (IP66 optional)

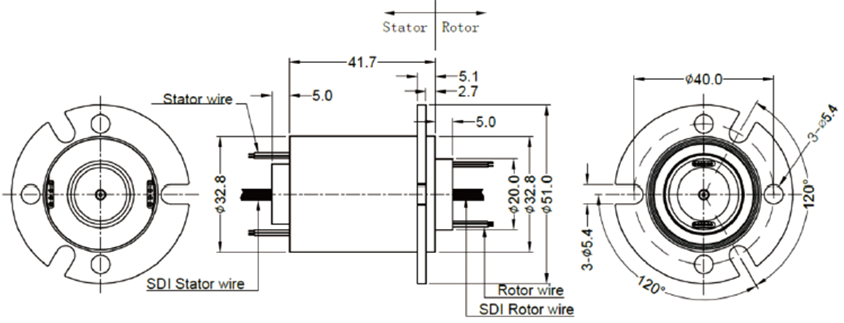

PSR-C24-SDI Dimensions

IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance

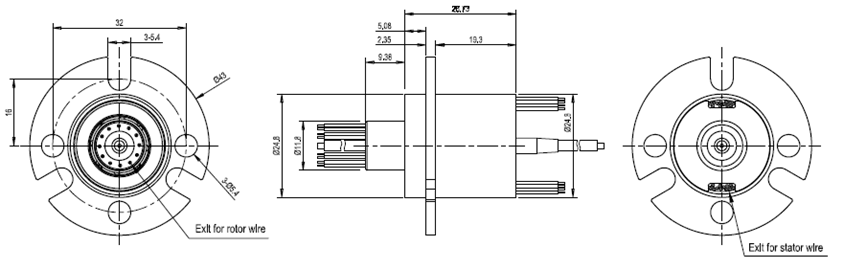

PSR-C36-SDI Dimensions

IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance

PSR-C56-SDI Dimensions

IP51 IP66 High Definition Slip Ring Zero Latency Panlink Slip Ring For Surveillance
