8A Power Transfer and 4 HD-SDI Channels High Definition Slip Ring with 2.36in OD
8A Power Transfer and 4 HD-SDI Channels High Definition Slip Ring with 2.36in OD
8A Power Transfer and 4 HD-SDI Channels High Definition Slip Ring with 2.36in OD
8A Power Transfer and 4 HD-SDI Channels High Definition Slip Ring with 2.36in OD
Specifications
Model Number :
PSR-JC60-5P97S-4SDI
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
Brand Name :
Panlink
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
Frequency Rate :
1.5GHz HD-SDI
Voltage Rating :
325VDC
Current Rating :
Power: 8A, Signal: 2A
Rotating Speed :
40rpm
Protection Degree :
IP53(higher or lower on request)
Weight :
1kg
Description

8A Power and 4 HD-SDI Transfer High Definition Slip Ring with 2.36in OD

PSR-JC60-5P97S-4SDI

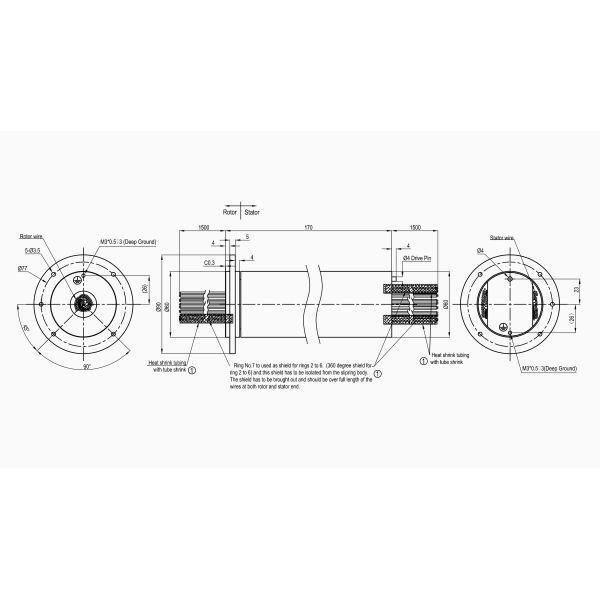

Dimensions in millimeters

8A Power Transfer and 4 HD-SDI Channels High Definition Slip Ring with 2.36in OD

Specification

Circuits 4 Channel for HD-SDI Transmission, 5 for Power Transmission, 97 for Signal Transmission
Electrical Specifications
Frequency Rate 1.5GHz HD-SDI
Voltage Rating 325VDC
Current Rating Power: 8A, Signal: 2A
Insulation Resistance Max 200MΩ @ 500VDC
Dielectric Noise 200VAC @ 50Hz, 60s
Electric Noise Max 10mΩ
Lead Cable Teflon Wires, HD-SDI Channel: RG178
Mechanical Specifications
Working Life 10 million revolutions
Rotating Speed 40rpm
Operating Temperature -49℉ to +176℉ (-45℃ to +80℃)
Storage Temperature -49℉ to +176℉ (-45℃ to +80℃)
Operating Humidity 0~95%RH
Torque 1 N•m
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP53(higher or lower on request)
Weight 1kg
