HD-SDI Slip Ring with 1.46inch Length and 1 Gigabit Ethernet Transfer Featuring IP67 Protection
HD-SDI Slip Ring with 1.46inch Length and 1 Gigabit Ethernet Transfer Featuring IP67 Protection
HD-SDI Slip Ring with 1.46inch Length and 1 Gigabit Ethernet Transfer Featuring IP67 Protection
HD-SDI Slip Ring with 1.46inch Length and 1 Gigabit Ethernet Transfer Featuring IP67 Protection
Specifications
Brand Name :
Panlink
Model Number :
PSR-M0-7S-SDI-1G
Certification :
ISO 9001: 2015, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
40 Million a Year
Delivery Time :
4 Weeks
Packaging Details :
Carton Box, EPE Foam, Wooden Box(For Large Goods)
OD × Length in(mm) :
0.28 × 1.46 (7 × 37)
Ethernet Transmission :
1 Gigabit Ethernet
Lead Cable :
WG28 Teflon, RG179, CAT6
Protection Degree :
IP67
Description

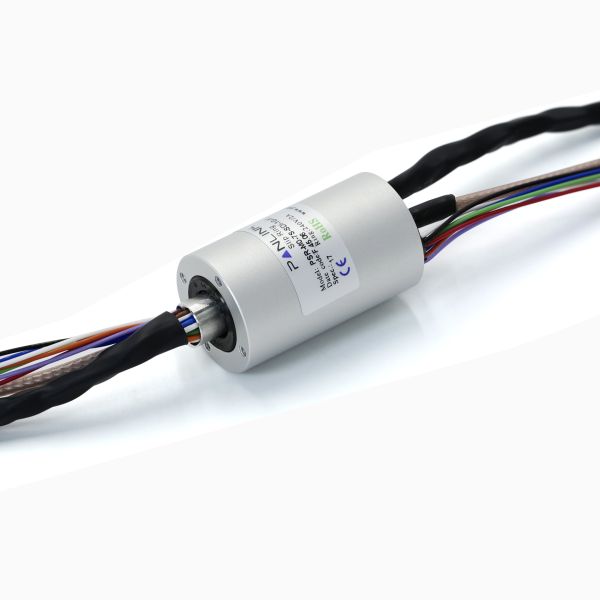

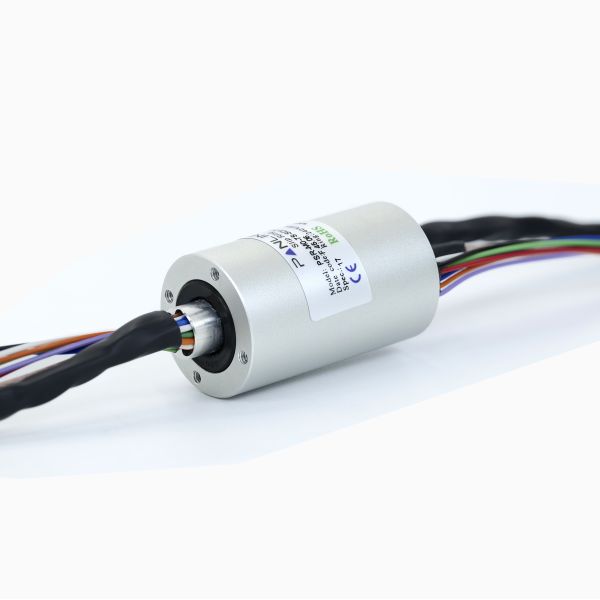

HD-SDI Slip Ring with extreme 1.46inch Length and 1 Gigabit Ethernet Transfer

PSR-M0-7S-SDI-1G

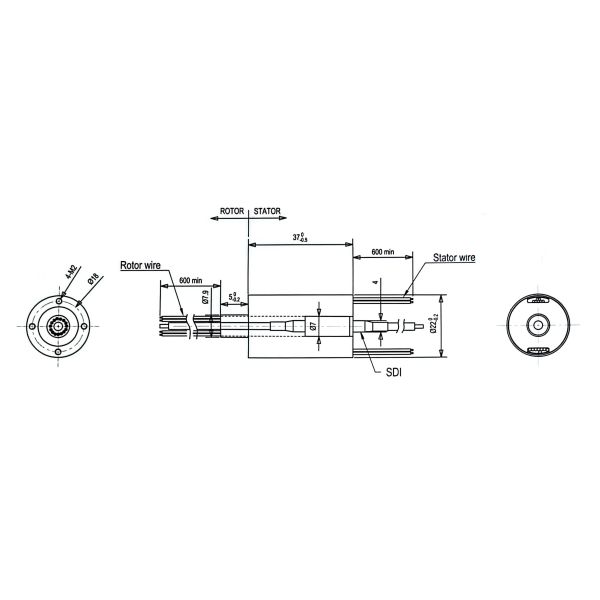

Drawings (Dimension in millimeters)

HD-SDI Slip Ring with 1.46inch Length and 1 Gigabit Ethernet Transfer Featuring IP67 Protection

Specifications

Circuits 1 Channel for HD-SDI Transmission, 1 Channel for 1000M Ethernet, 7 for Signal Transmission
Electrical Specifications
Frequency Rate 3GHz HD-SDI
Voltage Rating 48VDC
Current Rating 2A
Insulation Resistance Max 20MΩ @ 500VDC
Dielectric Noise 200VAC @ 50Hz, 60s
Electric Noise Max 20mΩ
Lead Cable WG28 Teflon, RG179, CAT6
Mechanical Specifications
Working Life 10 million revolutions
Rotating Speed 300rpm
Operating Temperature -67℉ to +160℉ (-55℃ to +71℃)
Storage Temperature -67℉ to +176℉ (-55℃ to +80℃)
Operating Humidity 0~95%RH
Torque 50 gf.cm
Contact Material Precious Metal
Housing Material Aluminum Alloy
Protection Degree IP67(higher or lower on request)
Shock GB/T 2423.5 (IEC 60068-2-27)
Vibration GB/T 2423.10 (IEC 60068-2-6)
